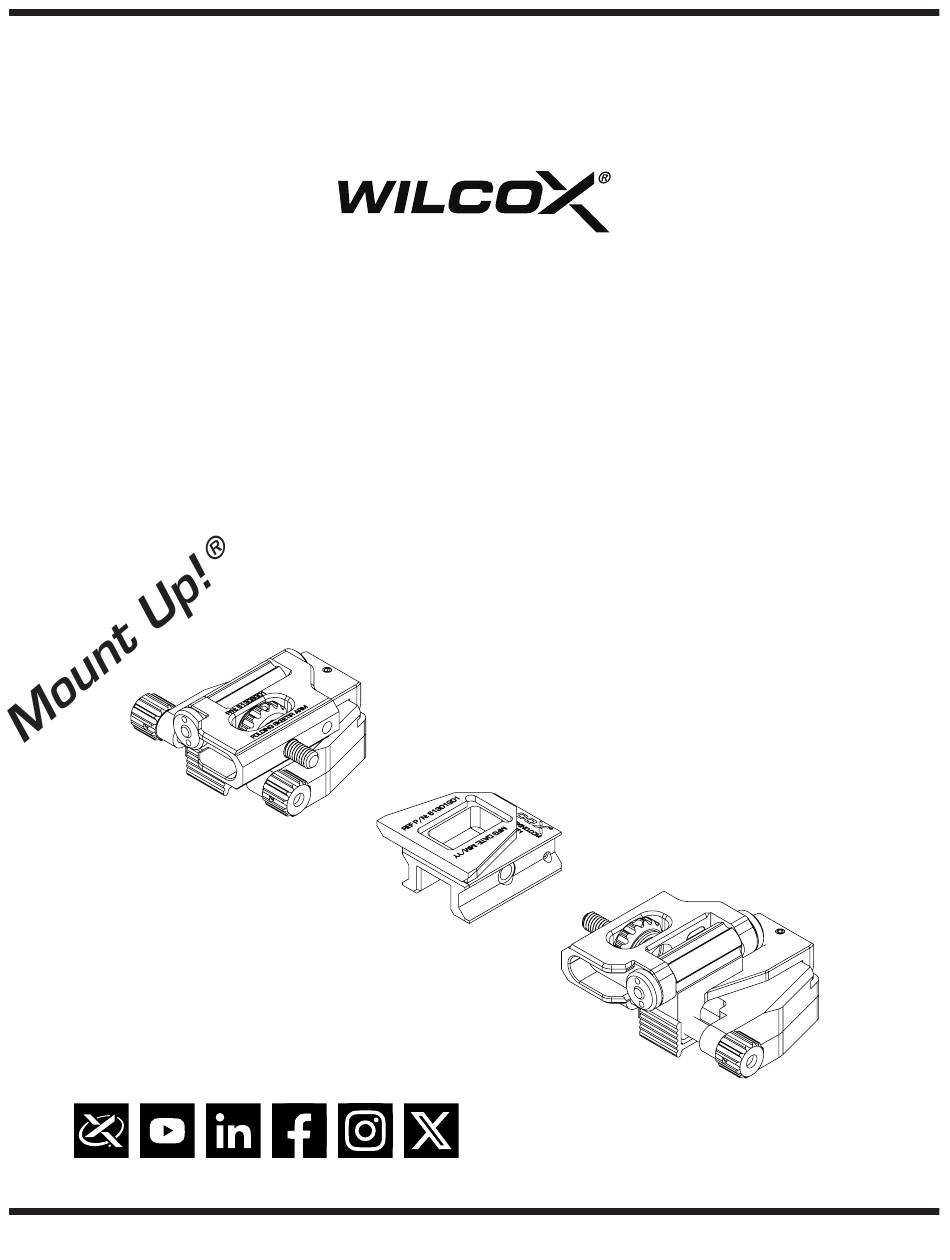

- Page 1 OPERATION AND MAINTENANCE INSTRUCTIONS FOR THE TRIJICON SKEETIRx RIGHT-LEFT ARM KIT PN: 61300G06 “The Most Trusted Helmet Mount in the World” CAGE: 004F1 EAR99 NLR: No Export License Required. 13 March, 2025 61300M06 Rev. A-5...
- Page 2 CONFIGURATION The Wilcox Trijicon SKEETIRx Right-Left Arm Kit binocular bridge is shipped assembled to accommodate a binocular configuration. For monocular only configuration, the Arm Assembly can be assembled on either side of the Mounting Shoe Base to accommodate dominant eye mounting. The system features a Modular Dovetail Base for mounting to the Wilcox G24 Dovetail Interface Mount.
- Page 3 ATTACH BINOCULAR BRIDGE - ATTACH THE BINOCULAR BRIDGE TO THE WILCOX G24 MOUNT ATTACH BINOCULAR BRIDGE Insert the Dovetail Interface of the modular Dovetail Base into the G24 Mount. Push until it clicks. Gently pull to make sure the NVG is properly mounted.
- Page 4 ATTACH NVG - ATTACH AN NVG TO THE BINOCULAR BRIDGE ATTACH NVG Slide the Dovetail Interface Shoe of the NVG onto the NVG Interface of the Mount until it clicks. While holding the NVG, pull gently to make sure it is firmly attached.
-
Page 5: Operation
OPERATION SET ID - SET THE NVG TO THE PROPER INTERPUPILLARY DISTANCE Turn the PD Adjustment Knob (1) until the proper position is obtained. 13 March, 2025 Rev. A-5... - Page 6 PIVOT - STOW THE NVG ON THE HELMET WITH THE G24 MOUNT STEP 1 Push the NVG Flip Button (1) and flip up to stow or down to deploy. G24 MOUNT PROVIDES 130° OF ROTATIONAL TRAVEL 13 March, 2025 Rev. A-5...
- Page 7 STEP 2 Pivot the NVG(s) outward to stow flush against the helmet when not in use. BINOCULAR BRIDGE PROVIDES 90° OF FLIP ANGLE FOR STOW 13 March, 2025 Rev. A-5...
-
Page 8: Care And Maintenance
CARE AND MAINTENANCE Clean the Mount by flushing away dirt with fresh water and/or wiping down the assemblies with a clean, damp cloth. If used in a saltwater environment, flushing with fresh water and drying after use is recommended. If used extensively in a saltwater environment, lightly lubricate stainless steel parts as needed. - Page 9 One Wilcox Way Newington, NH 03801 USA The Wilcox product must be securely packaged, accompanied by purchasing information, a letter including sender’s name, address, daytime phone number, date of manufacture, lot number, and a description of the problem or work to be performed.
- Page 10 ©2013-2025 Wilcox Industries Corp. All rights reserved. Printed in USA. US PAT. Web Link. The WILCOX logo, the “X” icon, and “Mount Up!” are Federally Registered Trademarks of Wilcox Industries Corp. All other trademarks and registered trademarks in this manual are the property...
