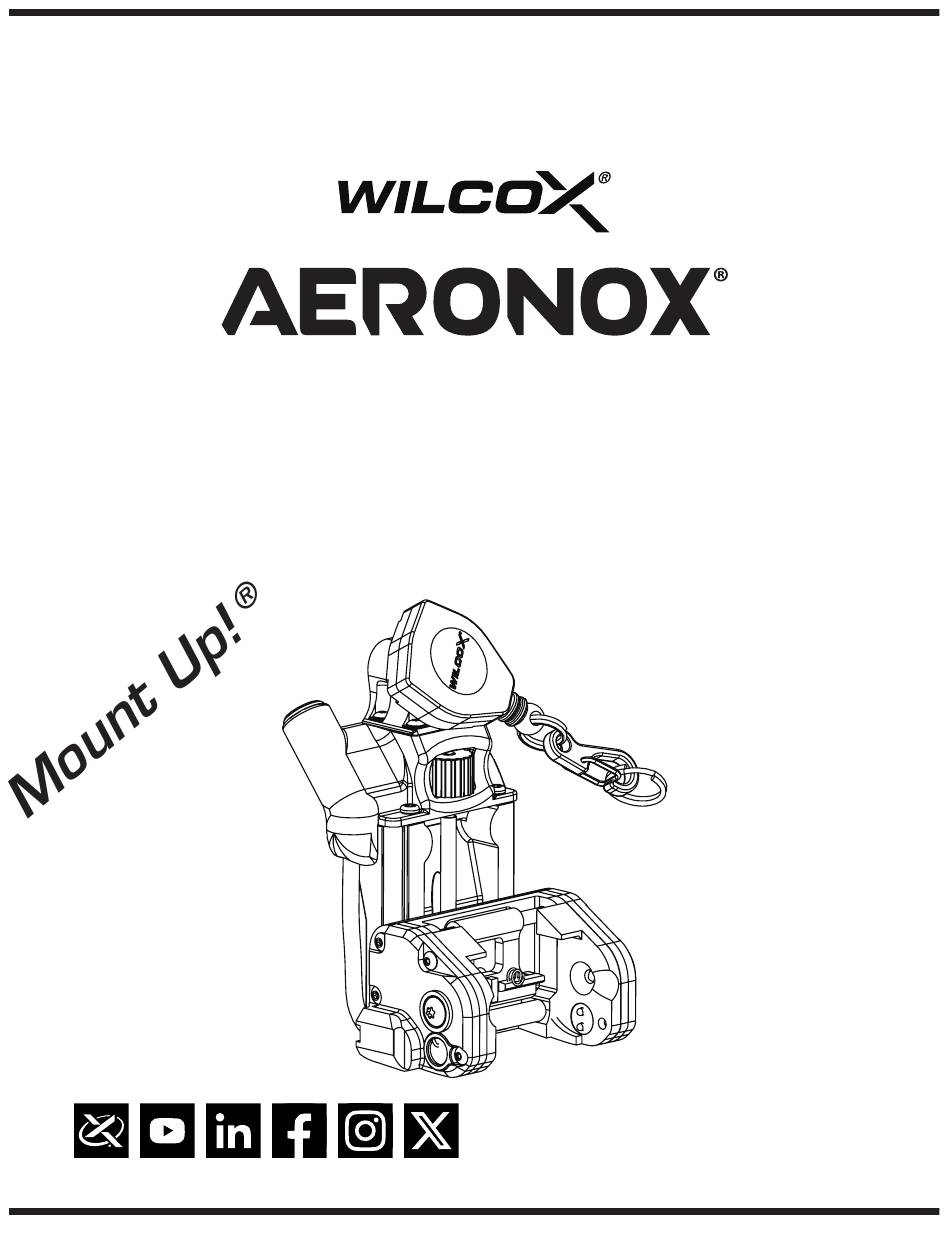

- Page 1 OPERATION AND MAINTENANCE INSTRUCTIONS FOR THE Night Vision Goggle Mount with Lanyard System PN: 62108G01 “The Most Trusted Helmet Mount in the World” CAGE: 004F1 EAR Controlled: Commerce license may be required for export or re-export. 4 March, 2025 62100QR01 Rev.
- Page 2 CONFIGURATION ATTACH MOUNT - ATTACH THE MOUNT TO AN AVIATION HELMET ATTACH MOUNT Insert the four pins (1) on the back of the Mount into HELMET INTERFACE the holes (2) on the Helmet Interface (3), then slide the Mount down until it locks. Make sure it is locked by gently tugging on it.
- Page 3 ATTACH MOUNT (CONTINUED) DETACH MOUNT Push the Lock Release Button (4) on the Helmet Interface, then lift and slide the Mount up to remove. 4 March, 2025 Rev. A-8...
- Page 4 ATTACH NVG - ATTACH AN NVG TO THE MOUNT ATTACH NVG Push the Lock Release Button (1) and pivot the NVG to 90°. Insert the Detents (2) into the mounting Grooves (3) of the Mount. Push until both sides click. Gently pull to make sure the NVG is properly mounted.
- Page 5 ATTACH LANYARD - ATTACH THE LANYARD Push the Mounting Post (1) of the Lanyard into the Lanyard Interface (2). 4 March, 2025 Rev. A-8...
-
Page 6: Operation
OPERATION PIVOT - STOWING/DEPLOYING THE NVG Push the Lock Release Button (1), then pivot the Mount to the stowed or deployed position and release the Button. 130° ROTATIONAL TRAVEL 4 March, 2025 Rev. A-8... - Page 7 UP/DOWN - ADJUSTMENT OF THE NVG Turn the Height Adjustment Knob (1) to the right (2) to lower the Mount or left (3) to raise the Mount using caution not to overextend the travel of the Knob. 1.3” VERTICAL TRAVEL 4 March, 2025 Rev.
- Page 8 POWER INDICATION - LOW POWER INDICATION A Low Power Indicator (1) illuminates when the power from the Battery Pack is low. Switch to alternate battery compartment to continue operation. Replace batteries as described in the Battery Pack Operator’s Manual (PN 62100QR05). 4 March, 2025 Rev.
-
Page 9: Care And Maintenance
CARE AND MAINTENANCE Clean the Mount by brushing with a soft brush and/or wiping down the assemblies with a clean, damp cloth. If used in a saltwater environment, lightly misting the exterior with fresh water and drying immediately after use is recommended. If used extensively in a saltwater environment, lightly lubricate stainless steel parts as needed. -
Page 10: General Safety Warnings
E-3, or other ANVIS systems meeting TSOC164, DO-275, MILSPEC, or DEFSTAN test standards with no maintenance action required. Wilcox and other ANVIS Mounts and Battery Packs meeting previously referenced standards may be used in any combination of mixed use. Units are serialized for tracking and Wilcox quality assurance purposes only. - Page 11 One Wilcox Way Newington, NH 03801 USA The Wilcox product must be securely packaged, accompanied by purchasing information, a letter including sender’s name, address, daytime phone number, date of manufacture, lot number, and a description of the problem or work to be performed.
- Page 12 For troubleshooting service questions, contact Wilcox between 8am and 5pm EST. ©2017-2025 Wilcox Industries Corp. All rights reserved. Printed in USA. The WILCOX logo, the “X” icon, “Mount Up!”, and AERONOX are Federally Registered Trademarks of Wilcox Industries Corp. All other trademarks and registered trademarks in this manual are the property...
