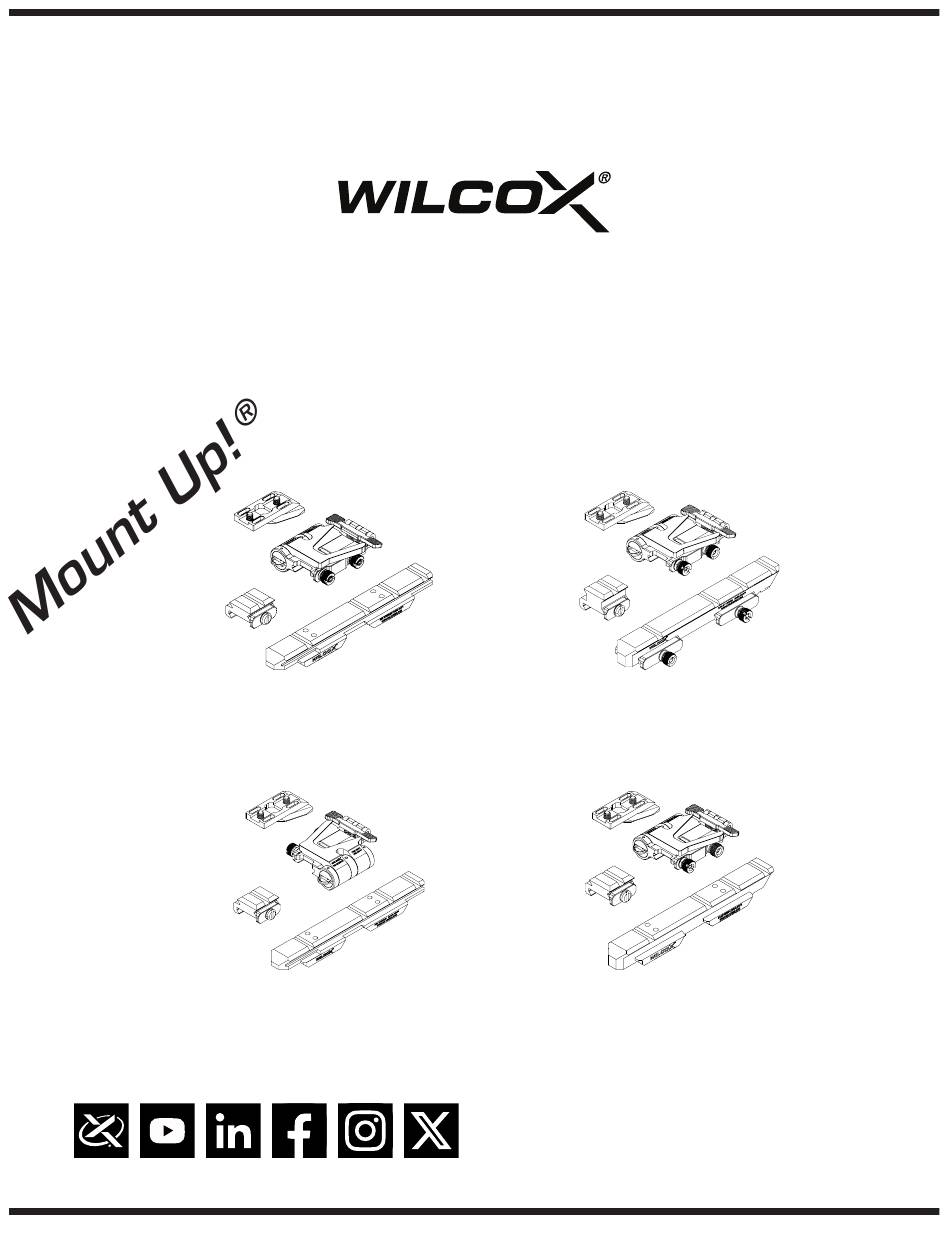

OPERATION AND MAINTENANCE
Flip Mounts for
the G23 Magnifier
PROFILE .41 RISER SET SCREW
EOTECH LEFT HAND LOW PROFILE
25 January, 2024
INSTRUCTIONS FOR THE
61100G02
EOTECH
RIGHT HAND LOW
®
61100G09
.41 RISER SET SCREW
EAR99 NLR: No Export License Required.
EOTECH RIGHT HAND WITH 5/8"
RISER THUMB SCREW DRAW BARS
EOTECH RIGHT HAND WITH 5/8"
CAGE: 004F1
61100M01
61100G03
61100G04
RISER SET SCREW
Rev. A-7
Advertisement
Table of Contents
Related Manuals for Wilcox EOTECH 61100G02
Summary of Contents for Wilcox EOTECH 61100G02
- Page 1 OPERATION AND MAINTENANCE INSTRUCTIONS FOR THE Flip Mounts for the G23 Magnifier 61100G02 61100G03 EOTECH RIGHT HAND LOW EOTECH RIGHT HAND WITH 5/8” ® PROFILE .41 RISER SET SCREW RISER THUMB SCREW DRAW BARS 61100G09 61100G04 EOTECH LEFT HAND LOW PROFILE EOTECH RIGHT HAND WITH 5/8”...
-
Page 2: Installation
INSTALLATION ATTACH SET SCREW RAIL - ATTACH SET SCREW STYLE RAILS If permanent installation is desired, apply a drop of Loctite 271 to screw threads and set aside. Make sure weapon is safe. Slide Rail (1) onto top weapon rail from rear, making sure Mount mounting grooves align with MIL-STD-1913 Rail outer guides. - Page 3 ATTACH THUMB SCREW ASSEMBLIES - ATTACH THUMB SCREW ASSEMBLIES Make sure weapon is safe. Turn screw(s) (1) CCW to loosen assembly. Do not release nut(s) from screw(s). Position assembly on outer rail edge, locating screw assemblies (2) in mounting THUMB SCREW RAIL ASSEMBLIES slots.
- Page 4 MOUNT SHOE - MOUNT WILCOX SHOE TO EOTECH MAGNIFIER If permanent installation is desired, apply a drop of Loctite 271 to screw threads and set aside. Attach bottom of Wilcox shoe to top of EOTech Magnifier (not provided) interface, aligning holes as desired.
- Page 5 ATTACH MAGNIFIER - ATTACH WILCOX FLIP MOUNT TO EOTECH MAGNIFIER The Flip Mounts provide a locking mechanism to prevent accidental release of the optic. Press NVG release lever (1). Insert shoe dovetail (2) into flip mount interface and press until release lever locks.
-
Page 6: Operation
OPERATION PIVOT - STOW AND DEPLOY THE FLIP MOUNT The Flip Mounts for the EOTech G23 feature a force-to-overcome tilt mechanism. To pivot the Flip Mount between the deployed and stowed positions, simply tilt the mount with enough force to overcome the resistance of the mount. - Page 7 PIVOT - STOW AND DEPLOY THE FLIP MOUNT (CONTINUED) STOWED; FRONT SIGHT MOUNTED TO WILCOX FRONT RAIL (RH FLIP MOUNT DEPICTED) STOWED FOR REFLEX SIGHT VIEW (RH FLIP MOUNT DEPICTED) 25 January, 2024 Rev. A-7...
-
Page 8: Care And Maintenance
CARE AND MAINTENANCE Clean the Mount by flushing away dirt with fresh water and/or wiping down the assemblies with a clean, damp cloth. If used in a saltwater environment, flushing with fresh water and drying after use is recommended. If used extensively in a saltwater environment, lightly lubricate stainless steel parts as needed. - Page 9 One Wilcox Way Newington, NH 03801 USA The Wilcox product must be securely packaged to prevent damage, accompanied by your name, address, daytime phone number to contact you, and a description of the problem or work you wish to be performed.
- Page 10 WWW.WILCOXIND.COM For troubleshooting service questions, contact Wilcox between 8am and 5pm EST. © 2011-2024 Wilcox Industries Corp. All rights reserved. Printed in USA. Patent US 8,978,539. Wilcox , the Wilcox “X” logo, and “Mount Up! ” are federally registered trademarks of Wilcox ®...
