Instructions, Parts
Contractor
For the application of architectural paints and coatings. For professional use only.
3600 psi (24.8 MPa, 248 bar) Maximum Working Pressure
See page 3 for additional model information.
Important Safety Instructions
Read all warnings and instructions in this manual. Refer to your sprayer instruction
manual for Pressure Relief, priming and spray instructions. Save these instructions.
Important Medical Information
Read the medical alert card provided with the gun. It contains injection injury
treatment information for a doctor. Keep it with you when operating the equipment.
®
and FTx
FTx Gun
II 2 G EX h IIA T6 GB
®
Spray Guns

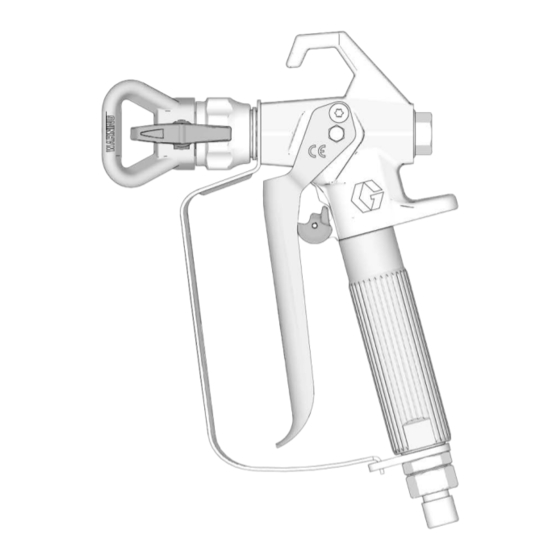

Contractor Gun
311861R
EN
