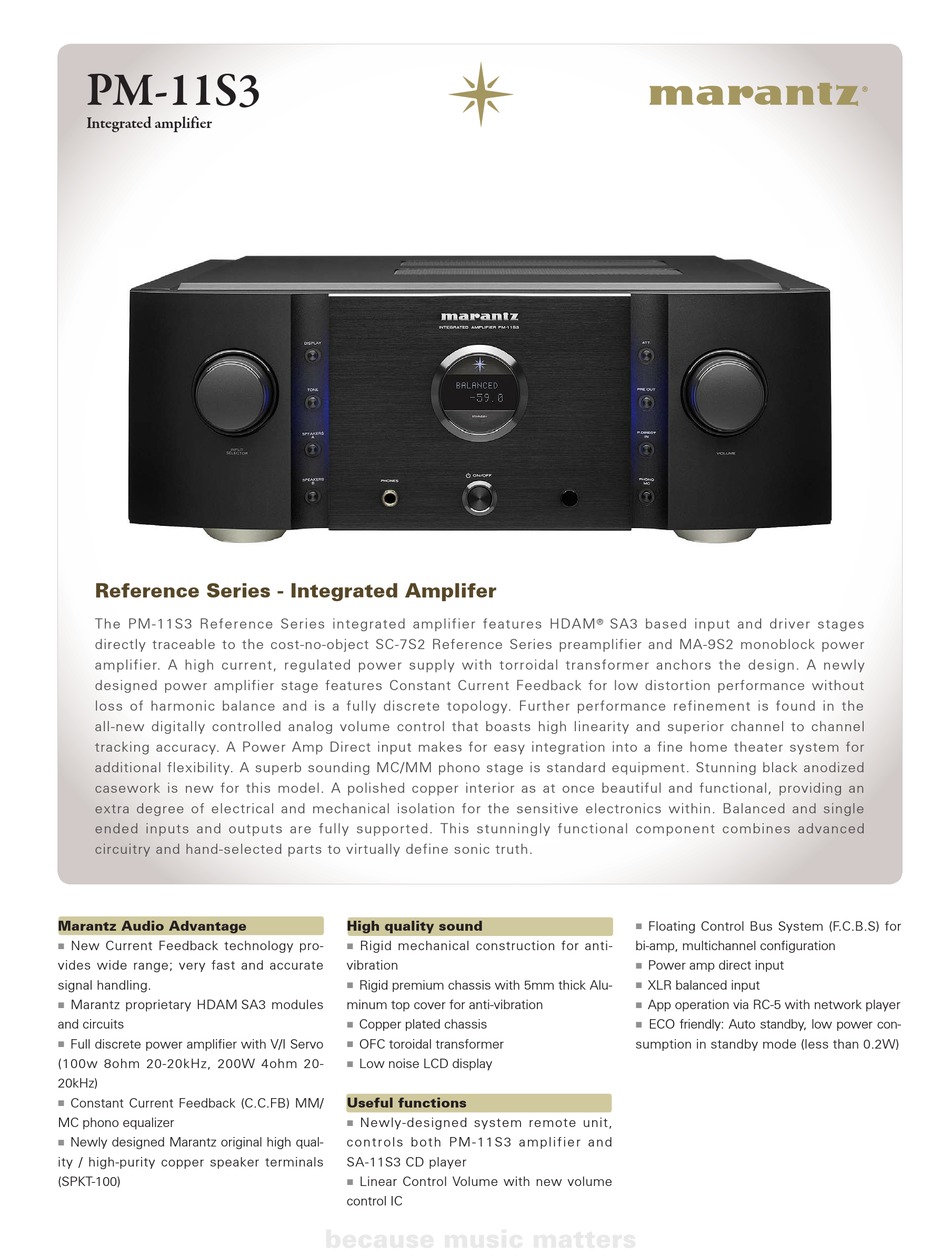

Marantz PM-11S3 Specifications

PM-11S3
Integrated amplifier
Reference Series - Integrated Amplifer
The PM-11S3 Reference Series integrated amplifier features HDAM
directly traceable to the cost-no-object SC-7S2 Reference Series preamplifier and MA-9S2 monoblock power
amplifier. A high current, regulated power supply with torroidal transformer anchors the design. A newly
designed power amplifier stage features Constant Current Feedback for low distortion performance without
loss of harmonic balance and is a fully discrete topology. Further performance refinement is found in the
all-new digitally controlled analog volume control that boasts high linearity and superior channel to channel
tracking accuracy. A Power Amp Direct input makes for easy integration into a fine home theater system for
additional flexibility. A superb sounding MC/MM phono stage is standard equipment. Stunning black anodized
casework is new for this model. A polished copper interior as at once beautiful and functional, providing an
extra degree of electrical and mechanical isolation for the sensitive electronics within. Balanced and single
ended inputs and outputs are fully supported. This stunningly functional component combines advanced
circuitry and hand-selected parts to virtually define sonic truth.
Marantz Audio Advantage
New Current Feedback technology pro-
n
vides wide range; very fast and accurate
signal handling.
Marantz proprietary HDAM SA3 modules
n
and circuits
Full discrete power amplifier with V/I Servo
n
(100w 8ohm 20-20kHz, 200W 4ohm 20-
20kHz)
Constant Current Feedback (C.C.FB) MM/
n
MC phono equalizer
Newly designed Marantz original high qual-
n
ity / high-purity copper speaker terminals
(SPKT-100)
High quality sound
Rigid mechanical construction for anti-
n
vibration
Rigid premium chassis with 5mm thick Alu-
n
minum top cover for anti-vibration
Copper plated chassis
n
OFC toroidal transformer
n
Low noise LCD display
n
Useful functions
Newly-designed system remote unit,
n
c o n t r o l s b o t h P M - 1 1 S 3 a m p l i f i e r a n d
SA-11S3 CD player
Linear Control Volume with new volume
n
control IC
SA3 based input and driver stages
®
Floating Control Bus System (F.C.B.S) for
n
bi-amp, multichannel configuration
Power amp direct input
n
XLR balanced input
n
App operation via RC-5 with network player
n
ECO friendly: Auto standby, low power con-
n
sumption in standby mode (less than 0.2W)
