Service
Manual
• For purposes of improvement, specifications and design are subject to change without notice.
• Please use this service manual with referring to the operating instructions without fail.
• Some illustrations using in this service manual are slightly different from the actual set.
S0474-1V01DM/DG1206
PM-11S3
Copyright 2012 D&M Holdings Inc. All rights reserved.
WARNING: Violators will be prosecuted to the maximum extent possible.

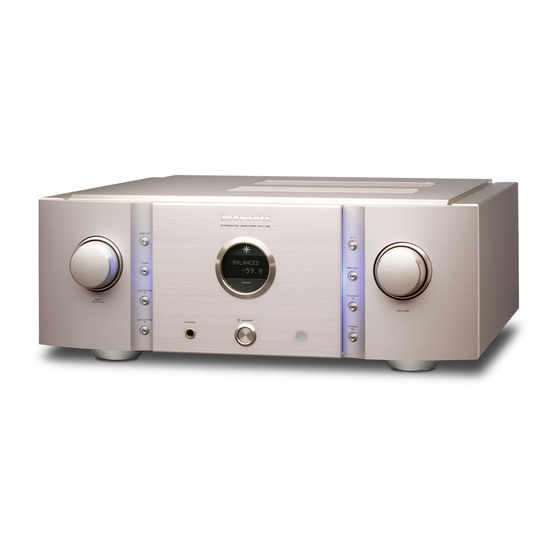

PM-11S3 /
Integrated Amplifier
K1G/N1G
U1B/N1B
Ver. 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PM-11S3 and is the answer not in the manual?

Questions and answers

Related Manuals for Marantz PM-11S3

Summary of Contents for Marantz PM-11S3

  • Page 1 Service PM-11S3 / K1G/N1G U1B/N1B Manual Integrated Amplifier • For purposes of improvement, specifications and design are subject to change without notice. • Please use this service manual with referring to the operating instructions without fail. • Some illustrations using in this service manual are slightly different from the actual set.

  • Page 2: Table Of Contents

    CoNteNtS ABoUt tHIS MANUAL .............4 BLoCK DIAGRAM ..............21 What you can do with this manual ..........4 WIRING DIAGRAM ..............22 Using Adobe Reader (Windows version) ........5 LeVeL DIAGRAM ..............23 SAFetY PReCAUtIoNS ............7 PRINteD WIRING BoARDS ...........24 Note FoR SCHeMAtIC DIAGRAM .........8 SCHeMAtIC DIAGRAMS (1/8) ..........31 Note FoR PARtS LISt ............8 bd210121_2 ................31...
  • Page 3 MARANtZ DeSIGN AND SeRVICe marantz Using superior design and selected high grade components, company has created the ultimate in stereo sound. marantz marantz Only original parts can insure that your product will continue to perform to the specifications for which it is famous.

  • Page 4: About This Manual

    ABoUt tHIS MANUAL Read the following information before using the service manual. What you can do with this manual Search for a Ref. No. (phrase) Jump to the target of a schematic diagram (Ctrl+Shift+F) connector You can use the search function in Acrobat Reader to Click the Ref.

  • Page 5: Using Adobe Reader (Windows Version)

    Using Adobe Reader (Windows version) Add notes to this data (Sign) Magnify schematic / printed wiring board diagrams - 1 The Sign function lets you add notes to the data in this manual. (Ctrl+Space, mouse operation) Save the file once you have finished adding notes. Press Ctrl+Space on the keyboard and drag the mouse to select the area you want to view.
  • Page 6 Magnify schematic / printed wiring board Magnify schematic / printed wiring board diagrams - 2 diagrams - 3 (Pan & Zoom function) (Loupe tool function) The Pan & Zoom function lets you see which part of a The Loupe Tool function lets you magnify a specific magnified diagram is being shown in a separate window.

  • Page 7: Safety Precautions

    SAFetY PReCAUtIoNS The following items should be checked for continued protection of the customer and the service technician. LeAKAGe CURReNt CHeCK Before returning the set to the customer, be sure to carry out either (1) a leakage current check or (2) a line to chassis resistance check.

  • Page 8: Note For Schematic Diagram

    Note FoR SCHeMAtIC DIAGRAM WARNING: Parts indicated by the z mark have critical characteristics. Use ONLY replacement parts recommended by the manufacturer. CAUtIoN: Before returning the set to the customer, be sure to carry out either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power cord is less than 460 kohms, the set is defective.

  • Page 9: Technical Specifications

    teCHNICAL SPeCIFICAtIoNS • RMS Power output: 100 W × 2 (8 Ω) (20 Hz - 20 kHz 2-channel simultaneously driven) 200 W × 2 (4 Ω) • total harmonic distortion: 0.01 % (20 Hz - 20 kHz 2-channel simultaneously driven, 8 Ω) •...

  • Page 10: Cautions In Servicing

    1. Turn off the power pressing X ON/OFF button. 2. Press X ON/OFF button while simultaneously while pressing DISPLAY button and ATT buttons. 3. Check the set entered the service mode.(Refer to "SERVICE MODE"(11 page).) DISPLAY INTEGRARED AMPLIFIER PM-11S3 DISPLAY TONE PRE OUT...

  • Page 11: Special Mode

    The memory is cleared and the unit is initialized." SERIAL NUMBER CHECK MODE TONE PHONO MC The Serial number is displayed. ERROR MESSAGES Table of Error Message. PROTECTION MODE Details of the PROTECTION. DISPLAY INTEGRARED AMPLIFIER PM-11S3 DISPLAY TONE PRE OUT STANDBY SPEAKERS P.DIRECT INPUT VOLUME...

  • Page 12: Service Mode

    16th 17th 18th 1. SeRVICe MoDe                      Press Press Press 1. To enter the Service Mode, press the ON/OFF button with pressing the DISPLAY and ATT buttons to turn on the unit. Or when the remote code "166363"...

  • Page 13: Error Messages

    3. eRRoR MeSSAGeS Indication Meaning ERROR 02 Multiple amplifiers take ID No. 2. ERROR 03 Multiple amplifiers take ID No. 3. ERROR 04 Multiple amplifiers take ID No. 4. Assign different ID numbers to the amplifiers. ERROR 11 The amplifiers with ID Nos. 2-4 c a n n o t c o m m u n i c a t e w i t h t h e amplifier with ID No.
  • Page 14 the PRot_2 (pin53) is the port to detect abnormalities of the power supply circuit 1. Detection of an abnormality in the power amp power supply circuit. This port monitors the midpoint voltage of the power amp power supply between +58V and -58V. If the voltage at the connection point of R8002 and R8003 exceeds DC ±1.2V, Q8001 or Q8002 will turn on to change the signal from the PROT_2 (pin2) to L from H.

  • Page 15: When The Microprocessor Is Replaced With A New One

    Refer to "Update procedure" or "writing procedure", when you should be write-in the software. ALIGNMeNtS Adjustment Procedure Set the power voltage to rated voltage for this adjustment. DC offset Voltage Adjustment INTEGRARED AMPLIFIER PM-11S3 DISPLAY 1. Before turning on the power, TONE PRE OUT...
  • Page 16 Idling Current Adjustment Digital Voltmeter Digital Voltmeter V7002 V6002 N6004 N7004 V6002 V6001 R6026 BIAS C6014 T.P. R6003 Q6021 Q6014 R6015 Q6004 Q6013 D6008 R6024 Q6030 Q6010 N6004 R6013 Q6027 C6001 Q6009 JV157 C6004 Q6012 Q6001 R6001 R6012 R6025 Q6020 R6014 R6002 Q6011...

  • Page 17: The Power Can Not Be Turned On

    1.tHe PoWeR CAN Not Be tURNeD oN (StANDBY LeD DoeS Not LIGHt (StANDBY MoDe)) Check linsertion of the 8U-110131-4 STANDBY PWB UNIT. Check linsertion of the 8U-210120-1 STANDBY PWB UNIT. Power not supplied. Broken wire in SUB TRANS T8501. Check whether power is being Power not supplied.

  • Page 18: The Power Can Not Be Turned On

    2.tHe PoWeR CAN Not Be tURNeD oN (StANDBY LeD LIGHtS FLASH) Check each connector. Do you have broken the F8510 is 8U-110131-4? Replace the F8510. Check voltage of N80078(5pin,6pin). When the power is turned on, LCD or lights? If L is that PROTECT 1, if L is the 5pin 6pin is PROTECT 2 is activated.

  • Page 19: Standby Led Flashes While Using Unit

    3.StANDBY LeD FLASHeS WHILe USING UNIt (PRoteCtIoN CIRCUIt IS Set) Refer to "The power can not be turned on. Check each connector (STANDBY LED lights→flash)" 4.tHe PoWeR tURNeD oN, BUt A SoUND DoeS Not oUtPUt NoRMALLY 4.1. There is no sound from one channel. Check each connector.
  • Page 20 Personal notes:...

  • Page 21: Block Diagram

    Bi-AMP MAIN TRANS MUTE INPUT SELECTOR ±20V PRE AMP DETECT SOFT AC IN LCD DISPLAY SOFT START START ±24V RELAY DRIVER LED, RELAY -COM. POWER SW IR SENSOR +15V DISPLAY IR SENSOR F.C.B.S. to PM-11S3 SELECTOR CONTROL SUB TRANS -COM.

  • Page 22: Wiring Diagram

    WIRING DIAGRAM...

  • Page 23: Level Diagram

    LeVeL DIAGRAM SPK OUT 28.28V (8ohms, 100W) +12.7dB -21.0dB Volume Setting HP OUT 2.3V (32ohms) 0dB (MAX) +12.0dB +14.0dB -11.0dB PRE OUT 1.8V P.DIRECT IN 1.7V Tone ±8.0dB +15.5dB BALANCE 480mV -6.0dB CD, LINE, REC 240mV REC OUT 240mV +39.0dB PHONO MM 2.8mV +59.0dB Power Buffer...

  • Page 24: Printed Wiring Boards

    PRINteD WIRING BoARDS 8U-210121-1 (CoMPoNeNt SIDe) Z5507 K4001 C4053 R5501 C5503 N3001 N3002 R3011 R3601 D5517 C5501 D5519 R2009 C3615 R2074 C3611 R5513 R3012 R2005 C3603 R5517 N4003 C4051 C5009 N3005 R3509 C3001 Q2007 Q2006 R5025 R5003 R5547 D3508 S3508 R5507 Z5501 C3502...
  • Page 25 8U-210121-1 (FoIL SIDe) 8U-210121-2 (FoIL SIDe) 鉛フリー半田 半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。 Lead-free Solder When soldering, use the Lead-free Solder (Sn-Ag-Cu).
  • Page 26 8U-210121-6 8U-210121-3 (CoMPoNeNt SIDe) (FoIL SIDe) (CoMPoNeNt SIDe) (FoIL SIDe) 8U-210121-6 K5102 D1751 N1751 R1751 R5101 R5102 N5101 R3819 R3820 C3808 R3821 N3802 R3822 8U-210121-3 8U-210121-7 8U-210121-4 (CoMPoNeNt SIDe) (FoIL SIDe) (CoMPoNeNt SIDe) (FoIL SIDe) 8U-210121-7 R9902 C9902 N9901 R9901 K9901 8U-210121-5 8U-210121-8...
  • Page 27 8U-110131-1 8U-110131-1 (CoMPoNeNt SIDe) (FoIL SIDe) V6002 V6001 R6026 BIAS C6014 T.P. R6003 Q6021 Q6014 R6015 Q6004 Q6013 D6008 R6024 Q6030 Q6010 N6004 R6013 Q6027 C6001 JV157 Q6009 C6004 Q6012 Q6001 R6012 R6001 R6025 Q6020 R6002 R6014 Q6011 JV52 JV96 R6017 C6013 R6066...
  • Page 28 8U-110131-3 8U-110131-3 (CoMPoNeNt SIDe) (FoIL SIDe) N9504 N9502 N9501 R9003 8U-110131-3 C9001 Z9001 Z9003 D9009 Z9004 Z9002 JV69 JV131 C9005 JV27 C9006 12.5 JV140 C9002 JV114 20.0 20.0 20.0 JV49 C9004 JV28 20.0 20.0 R9002 R9001 R9009 C9003 JV112 JV31 JV87 R9010 JV121...
  • Page 29 8U-110131-6 8U-110131-6 (CoMPoNeNt SIDe) (FoIL SIDe) N8006 JV118 L8006 C8007 N8005 方向有 N8007 JV155 Z8007 Q8008 Z8006 R8028 N8007 C8012 R8027 R8021 U8002 R8029 C8006 R8001 JV54 R8019 R8025 JV108 Z8402 N8001 R8006 C8014 C8016 C8015 U8401 JV161 JV22 C8010 20.0 Z8001 JV134...
  • Page 30 8U-210120-2 (CoMPoNeNt SIDe) 8U-210120-2 (FoIL SIDe) S1901 Z1901 N1902 C1906 Z1902 K1901 C1907 K1902 K1903 U1901 C1904 R1907 8U-210120-2 R1906 R1909 R1902 Q1904 C1912 N1901 Q1903 R1912 S1902 8U-210120-3 8U-210120-3 (CoMPoNeNt SIDe) (FoIL SIDe) R1412 R1415 C1411 C1410 N1402 R1409 R1410 R1411 R1413...

  • Page 31: Schematic Diagrams (1/8)

    R4055 K5101 D4019 LO-BK CHASSIS B9901 C 9 9 0 1 , C 9 9 0 2 : N , K O N LY L4001 D4021 PRE OU T K9901 F , U : O P E N H/PJACK N9901 N9901 N , K : 3 2 0 u H R9902...

  • Page 32: Bd210121_3

    PHONO TO AI K4001 -20V VOL_L LO-BK VOL_R +24VLB TO AK +24VLB UP-BK R3813 Q3509 C3801 KRC102S R3801 R3805 C3803 N3801 2 2 / 2 5 N3801 2 2 / 2 5 R3809 6 P - E H ( I M ) R3814 R1O_L U3801...

  • Page 33: Bd210121_4

    TONE_L TONE_R TO AN C5003 R5001 SHORT 4 7 / 2 5 +20V R2079 +5VA R2007 3 . 3 K R2061 +20V VOL_L C2005 U2003 C2015 C2011 +VCC +VCC +VCC NJM2068MD 100P 100 P 0 . 1 / 50 A-GND A-GND +OUT +OUT...

  • Page 34: Bd210121_5

    R3625 + 20VB 1 . 5 K N3601 C3601 N3601 R3601 7 P - E H s C3603 C5503 5 . 6 K 2 2 / 2 5 R3609 PO_L 2 2 / 2 5 U3601 P_DI_L R5505 NJM2068MD -GND +20VB R5523 -GND...

  • Page 35: Bd110131_2

    R6025 Q6034 -->N6010 Q6035 -->N6011 3 P - E H ( I M ) N6005 N6005 OPEN OPE N R6042 CFPS1/4CMHT CFPS1/4CMHT TO N9501 TEM P O VER-C C6013 Q6031 -->N6009 OPEN 3P-PH N6006 B6501 3 TEM P TEM P CFPS1/4CMHT 2P-EH 0V: NORMAL...

  • Page 36: Bd11013

    F OR_PM-11S3_A363 Z8203 HEAT-SINK 2 S C 4 8 8 3 ( O / Y ) 3 P - E H ( I M ) 44741001601AM Q8201 R8108 N8102 N8102 3 . 3 TO N3003 CFPS1/4CMHT D8117 UDZS10B 15P-PLUG(C125Z1) Z8101 N8103 N8103 +3VD...

  • Page 37: Bd210120_1

    +3.3VD C1017 +15V 1608 N o S i g n a l : L 1000P C1018 S i g n a l D e t e c t : H 16P-PH KRC102S 1608 N1001 1000P N1001 Q1012 POWER L1001 D-GND R1014 + 3 .

  • Page 38: Bd210120_2

    K1901 RCA206B0 R I - O R 7 P - F F C s N1902 LE-OR TOOL0 RESET D_GND Z1901 +VCC M3-SIDE C1901 0 . 1 Z 1608 R1910 1608 R1909 OPE N C1907 Z1902 OPEN KRA102S M3-SIDE Q1904 1608 Q1902 0 .

  • Page 39: Exploded View

    eXPLoDeD VIeW 004D 021D 001D 006D J001 021D 901G J003-J006 J007-J010 010D 019D 023G 012Dx3 002D 801K 008Dx2 P801 027G 904Gx3 902Gx8 PB01 013D 903G P851 004D 011Dx4 919Gx2 L001 PC01 PA01 P901 P991 045G 038G PD41 PD01 011G P101 011B 005K P401...
  • Page 40 Personal notes: Personal notes:...

  • Page 41: Parts List Of Exploded View

    TOP COVER BL PM-11S3 A363 N1B, U1B 001G MAIN CHASSIS 001K O63.5 RETAINER (CU) BLSC-641 001L MAIN HEATSINK 002B 00M04AJ353150 RING WINDOW PM-11S3 GL N A363 002B 00M04AJ353020 RING WINDOW PM-11S3 BL A363 N1B, U1B 002B 00M04AJ353120 WINDOW RING (GL) FN, K1G 002D...
  • Page 42 40441004201AM SIDE PANEL ASSY GL PM-11S3 N1G, FN, K1G 013D 40441004200AM SIDE PANEL ASSY BL PM-11S3 N1B, U1B 015B 42341002307AM INDICATOR BL A1070P T0.5 PM-11S3 A363 016B 00M04AJ056110 LCD ESC.BUFFER 017B 42351003200AM LENS LCD ESC. PM-11S3 017G RIGHT SIDE BRACKET...
  • Page 43 00M04AJ122020 WINDOW FIXING ADHESIVE 057B 00M04AJ122030 WINDOW FIX ADHESIVE 058B D=10-4.2 0.8T+NONI FIBER W. 901G REAR PANEL PM-11S3 (N) A363 N1B, N1G 901G REAR PANEL PM-11S3 (U) A363 901G REAR PANEL PM-11S3 (K) A363 901G REAR PANEL PM-11S3 (F) A363...
  • Page 44 Ref No. Part No. Part Name Remarks Q'ty New SCREW SCREW SCREW SCREW SCREW Tooth Washer 3mm (CU) Tooth Washer 4mm (CU) 4X20 CBTS (S)-B 3X10 CBTS (P)-CU SCREW...

  • Page 45: Packing View

    PACKING VIeW F ONLY N ONLY...

  • Page 46: Parts List Of Packing & Accessories

    F : Japan model B : Black model G : Silver gold model Ref No. Part No. Part Name Remarks Q'ty New 53121022100AM PACKING CASE PM-11S3 A363 U1B,N1B,N1G,FN 53121022110AM PACKING CASE PM-11S3 A363 53121022200AM MASTER CARTON PM-11S3 A363 N1B,N1G 00M04AJ809022 CUSHION (R)

  • Page 47: Semiconductors

    SeMICoNDUCtoRS Only major semiconductors are shown. Genaral semiconductors etc. are omitted from list. The semiconductors which have a detailed drawing in a schematic diagram are omitted from list. 1. IC's R5F100MFAFA (U1001)
  • Page 49 MAIN MPU PoRt tABLe R5F100MFAFA (U1001) Port Setting Port Name Note Act. stby exit R Over Current detection/ DC detection / P141/PCLBUZ1/INTP7 PROT_1 PU 10k Temperature detection P140/PCLBUZ0/INTP6 PROT_2 PU 10k Power failure detection P120/ANI19 P45/SO01 PD 10k Speaker Relay On (ON:H) P44/SI01/SDA01 E2PROM Serial Data Preliminary P43/SCK01/SCL01...
  • Page 50 Port Setting Port Name Note Act. stby exit R Tone amp controll Analog SW(LC78212) CE T_CE_T PD 10k (TREBLE) Volume IC(MAS6116) MUTE 制御 MUTE P17/TI02/TO02 V_MUTE PD 10k On:H P16/TI01/TO01/INTP5 V_CS_R PD 10k Volume IC(MAS6116) CS (R ch) P15/SCK20/SCL20 V_CLK PD 10k Volume IC(MAS6116) Serial Clock P14/RxD2/SI20/SDA20...
  • Page 51 MC14094 (U3501,U3502) MC14094B PIN ASSIGNMENT STROBE OUTPUT DATA ENABLE CLOCK Q′ TRUTH TABLE Parallel Outputs Serial Outputs Output Q′ Enable Clock Strobe Data No Chg. No Chg. No Chg. No Chg. No Chg. −1 No Chg. −1 No Chg. No Chg. No Chg.
  • Page 52 U3501 Port Setting Port Name Note Act. stby exit R STROBE Chip Enable DATA DATA Serial Data (Direct controll from MPU) CLOCK Serial Clock LINE2 PD 10k LINE2 INPUT Relay ON (ON:H) REC1 PD 10k RECORDER1 INPUT Relay ON (ON:H) REC2 PD 10k RECORDER2 INPUT Relay ON (ON:H)
  • Page 53 TC74VHC86FT(U1004)
  • Page 54 PC817 (U1901) Anode Cathode Emitter Collector LC78211, 78212, 78213 Continued from preceding page. LC78212 (U2001, U2002)
  • Page 55 PIN CONFIGURATIONS  BLOCK DIAGRAM   MAS6116 (U5001, U5002)           SO16 AGND AVCC ROUT DA6116.001    27 February, 2009 LGND RGND RGND   DGND ZERO PEAK PIN CONFIGURATIONS  DVCC CCLK CROSSING DETECTOR DATA   XMUTE DATA     CCLK   CONTROL   SO16 XMUTE  ...

  • Page 56: Parts List Of Pcb Unit

    PARtS LISt oF PCB UNIt z Parts indicated by "nsp" on this table cannot be supplied. z The parts listed below are only for maintenance. Therefore they might differ from the parts used in the unit in appearances or dimensions. Note: The symbols in the column "Remarks"...
  • Page 57 Ref No. Part No. Part Name Remark Q'ty New Q4014 00MHX113121B0 2SA1312 (B) Q4015 00MHX333241B0 2SC3324 (B) Q4016 00MHX333241B0 2SC3324 (B) Q4017 00D2710300904 KTA1266-GR-AT/P Q4018 00D2710300904 KTA1266-GR-AT/P Q4019 21305001240AS KTC3198-GR-AT/P Q4020 21305001240AS KTC3198-GR-AT/P Q4021 00D2710300904 KTA1266-GR-AT/P Q4022 00D2710300904 KTA1266-GR-AT/P Q4023 21305001240AS KTC3198-GR-AT/P Q4024...
  • Page 58 Ref No. Part No. Part Name Remark Q'ty New Q5003 21305001240AS KTC3198-GR-AT/P Q5004 21305001240AS KTC3198-GR-AT/P Q5005 00D2710300904 KTA1266-GR-AT/P Q5006 00D2710300904 KTA1266-GR-AT/P Q5007 00D2710300904 KTA1266-GR-AT/P Q5008 00D2710300904 KTA1266-GR-AT/P Q5009 21305001240AS KTC3198-GR-AT/P Q5010 21305001240AS KTC3198-GR-AT/P Q5011 21305001240AS KTC3198-GR-AT/P Q5012 21305001240AS KTC3198-GR-AT/P Q5501 00D2710300904 KTA1266-GR-AT/P Q5502...
  • Page 59 Ref No. Part No. Part Name Remark Q'ty New D3801 20105001130AS 1SS133(HOMI) D3802 20105001130AS 1SS133(HOMI) D3901 20105001230AS 1SS355T D3902 20105001230AS 1SS355T D3903 20105001230AS 1SS355T D3904 20105001230AS 1SS355T D3905 20105001230AS 1SS355T D3906 20105001230AS 1SS355T D4001 20105001130AS 1SS133(HOMI) D4003 20105001130AS 1SS133(HOMI) D4004 20105001130AS 1SS133(HOMI) D4005...
  • Page 60 Ref No. Part No. Part Name Remark Q'ty New D5514 20105001230AS 1SS355T D5515 20105001230AS 1SS355T D5516 20105001230AS 1SS355T D5517 20105001230AS 1SS355T D5518 20105001230AS 1SS355T D5519 20105001230AS 1SS355T D5520 20105001230AS 1SS355T D5521 20105001230AS 1SS355T D5522 20105001230AS 1SS355T D5523 20105001230AS 1SS355T D5524 20105001230AS 1SS355T U2001...
  • Page 61 Ref No. Part No. Part Name Remark Q'ty New z R4543 00MGG05100160 10 OHM +- 5% 1/6W FLAMERETERDANT z R4544 00MGG05100160 10 OHM +- 5% 1/6W FLAMERETERDANT z R5032 00MGG05220160 22 OHM +- 5% 1/6W FLAMERETERDANT z R5523 00MGG05100160 10 OHM +- 5% 1/6W FLAMERETERDANT z R5524 00MGG05100160...
  • Page 62 Ref No. Part No. Part Name Remark Q'ty New C3027 00MOA476025R0 ROA-25V 470M -G3# - T2 C3028 00MOA476025R0 ROA-25V 470M -G3# - T2 C3029 00MOF55221590 220PF 200V +- 10% FAS N, K C3030 00MOF55221590 220PF 200V +- 10% FAS N, K C3031 00MOA106035Z0 ROS-35V 100M - F3#PE - T2 (10UF 35V)
  • Page 63 Ref No. Part No. Part Name Remark Q'ty New C3809 00MOF55221590 220PF 200V +- 10% FAS N, K C3810 00MOF55221590 220PF 200V +- 10% FAS N, K C3901 00MOA106035Z0 ROS-35V 100M - F3#PE - T2 (10UF 35V) C3902 00MOA106035Z0 ROS-35V 100M - F3#PE - T2 (10UF 35V) C3905 00MOA106035Z0 ROS-35V 100M - F3#PE - T2 (10UF 35V)
  • Page 64 Ref No. Part No. Part Name Remark Q'ty New C4513 00MOF56331540 STAR(126)100VDC331J7-10 C4514 00MOF56331540 STAR(126)100VDC331J7-10 C4515 00MOA227025R0 ROA-25V 221M -H5#PE - T2 (220UF 25V) C4516 00MOA227025R0 ROA-25V 221M -H5#PE - T2 (220UF 25V) C4517 00MOA227025R0 ROA-25V 221M -H5#PE - T2 (220UF 25V) C4518 00MOA227025R0 ROA-25V 221M -H5#PE - T2 (220UF 25V)
  • Page 65 Ref No. Part No. Part Name Remark Q'ty New OTHERS PARTS GROUP H1201 FUSE CLIP(TAPE) K3001 00D2048549000 2P PIN JACK(18MM) K3002 00D2048549000 2P PIN JACK(18MM) K3003 00D2048549000 2P PIN JACK(18MM) K3004 00D2048549000 2P PIN JACK(18MM) K3005 00D2048549000 2P PIN JACK(18MM) K4001 00D2048549000 2P PIN JACK(18MM)
  • Page 66 Ref No. Part No. Part Name Remark Q'ty New S3504 00D2140208003 RELAY(NA24W-K) S3505 00D2140208003 RELAY(NA24W-K) S3506 00D2140208003 RELAY(NA24W-K) S3507 00D2140208003 RELAY(NA24W-K) S3508 00D2140208003 RELAY(NA24W-K) S3601 00D2140208003 RELAY(NA24W-K) S3602 00D2140208003 RELAY(NA24W-K) S3801 00D2140208003 RELAY(NA24W-K) S3802 00D2140208003 RELAY(NA24W-K) S4001 00D2140208003 RELAY(NA24W-K) S4002 00D2140208003 RELAY(NA24W-K) S5501...

  • Page 67: 110131 Ass'y

    8U-110131 ASS'Y Ref No. Part No. Part Name Remark Q'ty New SeMICoNDUCtoRS GRoUP D6001 20105001130AS 1SS133(HOMI) D6002 20105001130AS 1SS133(HOMI) D6003 20105001130AS 1SS133(HOMI) D6004 20105001130AS 1SS133(HOMI) D6007 00MHI10115210 SLR-342VRTB7 RED TAPING D6008 00MHI10115210 SLR-342VRTB7 RED TAPING D6009 20105001130AS 1SS133(HOMI) D6010 20105001130AS 1SS133(HOMI) D6011 20105001130AS...
  • Page 68 Ref No. Part No. Part Name Remark Q'ty New z D8012 00MHD20055100 !SHOTTKY 11EQS10 1A 100V z D8013 00MHD20055100 !SHOTTKY 11EQS10 1A 100V z D8014 00MHD20055100 !SHOTTKY 11EQS10 1A 100V z D8015 00MHD20055100 !SHOTTKY 11EQS10 1A 100V z D8016 00MHD20055100 !SHOTTKY 11EQS10 1A 100V z D8017 00MHD20055100...
  • Page 69 Ref No. Part No. Part Name Remark Q'ty New Q6015 00D2710314903 KTA1024-Y-AT/P Q6016 00D2710314903 KTA1024-Y-AT/P Q6017 00D2730471907 KTC3206-Y-AT/P Q6018 00D2730471907 KTC3206-Y-AT/P Q6019 21305001420AS KTC3423-Y-U/PH Q6020 00D2730471907 KTC3206-Y-AT/P Q6021 00D2710314903 KTA1024-Y-AT/P Q6022 21105001420AS KTA1360-Y-U/PH Q6027 00D2710314903 KTA1024-Y-AT/P Q6030 00D2730471907 KTC3206-Y-AT/P z Q6031 00D2730445001 2SC4495 z Q6032...
  • Page 70 Ref No. Part No. Part Name Remark Q'ty New Q8008 00D2730464901 KTC3875S-GR-RTK/P Q8101 00D2710300904 KTA1266-GR-AT/P Q8102 21305001240AS KTC3198-GR-AT/P Q8105 00D2710300904 KTA1266-GR-AT/P z Q8106 00MHT348832A0 TRANSISTOR 2SC4883 O OR Y z Q8201 00MHT348832A0 TRANSISTOR 2SC4883 O OR Y z Q8301 00MHT118592A0 TRANSISTOR 2SA1859 O OR Y Q8502 00D2710300904...
  • Page 71 Ref No. Part No. Part Name Remark Q'ty New z R6046 00MGG05102160 1K OHM +- 5% 1/6W FLAMERETERDANT z R6047 00MGG05470160 47 OHM +- 5% 1/6W FLAMERETERDANT z R6048 00MGG05470160 47 OHM +- 5% 1/6W FLAMERETERDANT z R6049 00MGG05221160 220 OHM +- 5% 1/6W FLAMERETERDANT z R6050 00MGG05100160...
  • Page 72 Ref No. Part No. Part Name Remark Q'ty New z R8015 00MBF68400016 ! 0.68UF/4.7OHM z R8019 00MGG05100160 10 OHM +- 5% 1/6W FLAMERETERDANT z R8022 00MGG05220160 22 OHM +- 5% 1/6W FLAMERETERDANT z R8028 00MGG05100160 10 OHM +- 5% 1/6W FLAMERETERDANT R8101 00D2412471908...
  • Page 73 Ref No. Part No. Part Name Remark Q'ty New C8011 00MOA10605020 10 UF M 50V RA-2 C8012 00D2544577974 CE04W1C471MT(RA3) C8015 00MOA10702520 100 UF M 25V RA-2 C8016 00MOA10702520 100 UF M 25V RA-2 C8017 00MOA47602520 47 UF M 25V RA-2 C8101 00MOA15905010 LKG1H153MESBZT...
  • Page 74 Ref No. Part No. Part Name Remark Q'ty New N6008 13P PLUG(C125Z1) N6009 00MYP07005670 IMSA-6065B-06Z065-PT1 N6010 00MYP07005670 IMSA-6065B-06Z065-PT1 N6011 00MYP07005670 IMSA-6065B-06Z065-PT1 N7001 B3B-EH-TS (LF)(SN) 3P RADIAL TAPING N7002 00MYP07005670 IMSA-6065B-06Z065-PT1 N7003 00MYP07005670 IMSA-6065B-06Z065-PT1 N7004 B2B-EH N7005 B3B-EH-TS (LF)(SN) 3P RADIAL TAPING N7006 B3B-PH-K-S (LF)(SN) N7007...
  • Page 75 Ref No. Part No. Part Name Remark Q'ty New Z6004 GND TERMINAL FOR PCB Z6501 IRRAXTUBE V2 AWG20 BLACK 3MM Z7001 M3 SCREW TERMINAL Z7002 M3 SCREW TERMINAL Z7003 M3 SCREW TERMINAL Z8001 M3 SCREW TERMINAL Z8002 M3 SCREW TERMINAL Z8003 M3 SCREW TERMINAL Z8004...

  • Page 76: 210120A Ass'y

    8U-210120A ASS'Y Ref No. Part No. Part Name Remark Q'ty New SeMICoNDUCtoRS GRoUP D1001 26301000440AS SELG6E10C-S20 BLUE LED D1002 00D3939607908 SLR342VC(TB7) D1401 26301000440AS SELG6E10C-S20 BLUE LED D1402 26301000440AS SELG6E10C-S20 BLUE LED D1403 26301000440AS SELG6E10C-S20 BLUE LED D1404 26301000440AS SELG6E10C-S20 BLUE LED D1501 26301000440AS SELG6E10C-S20 BLUE LED...
  • Page 77 Ref No. Part No. Part Name Remark Q'ty New Q1902 00D2690184907 KRA102S-RTK/P (10K-10K) Q1903 00D2690192902 KRC102S-RTK/P (10K-10K) Q6601 00D2710318909 2N5401S-RTK/P Q6606 00D2710318909 2N5401S-RTK/P Q6608 00D2710318909 2N5401S-RTK/P Q6602 00D2730479909 2N5551S-RTK/P Q6605 00D2730479909 2N5551S-RTK/P Q6607 00D2730479909 2N5551S-RTK/P U1001 997243101160M R5F100MFAFA UCOM U1002 00MHC10229210 BD4727G 2.7V RESET IC U1004...
  • Page 78 Ref No. Part No. Part Name Remark Q'ty New L1010 00MFC90020210 MLB-1608-1000A-N2 L1011 00MFC90020210 MLB-1608-1000A-N2 L1012 00MFC90020210 MLB-1608-1000A-N2 L1013 00MFC90020210 MLB-1608-1000A-N2 L1014 00MFC90020210 MLB-1608-1000A-N2 L1015 00MFC90020210 MLB-1608-1000A-N2 L1016 00MFC90020210 MLB-1608-1000A-N2 L1020 00MFC90020210 MLB-1608-1000A-N2 L1021 00MFC90020210 MLB-1608-1000A-N2 L1023 00MFC90020210 MLB-1608-1000A-N2 L1024 00MFC90020210 MLB-1608-1000A-N2 L1025...
  • Page 79 Ref No. Part No. Part Name Remark Q'ty New S1503 66201000830AS TACT SW S1504 66201000830AS TACT SW S1901 00MSS02021620 SSSU121700 S1902 00D2140208003 RELAY(NA24W-K) Z1901 M3 SCREW TERMINAL Z1902 M3 SCREW TERMINAL...

  • Page 80: Hdam-Sa3D Ass'y

    HDAM-SA3D ASS'Y Ref No. Part No. Part Name Remark Q'ty New DN01 00MHZ20014990 KDS122 TAPING DN02 00MHZ20014990 KDS122 TAPING DN03 00MHZ20014990 KDS122 TAPING DN04 00MHZ20014990 KDS122 TAPING JN01 00MYP07005670 IMSA-6065B-06Z065-PT1 QN01 00D2710318909 2N5401S-RTK/P QN02 00D2730479909 2N5551S-RTK/P QN03 00D2710318909 2N5401S-RTK/P QN04 00D2730479909 2N5551S-RTK/P QN05...
