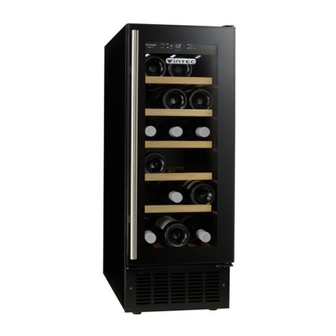

- Page 1 Armoire vin. Wine Preservation Technology USER MANUAL V20SG"e" SS V20SG"e" V20SG e S3 V20SG e BK...
- Page 2 The information in this document is subject to modification without any prior notice. VINTEC offers no guarantee for our wine cellar if it is being used for any purpose other than that for which it was specifically designed. VINTEC cannot be held responsible for any error in this manual.
- Page 3 It is hazardous for anyone other than an Authorised Service Person to carry out servicing or repairs to this appliance. In Queensland the authorized person must hold a Gas Work Authorisation for hydrocarbon refrigerants, before carrying out servicing or repairs which involve the removal of covers. WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
- Page 4 Leveling your wine cellar: Wine cellar must be leveled BEFORE loading your wines. Your wine cellar is equipped with 4 adjustable feet to facilitate easy leveling. VINTEC recommends that you tighten the back feet to the maximum and adjust the front feet to create...
- Page 5 Back spacer: Compressor-run appliances require proper ventilation for proper and longer usage. Your Vintec wine cellar is supplied with a back spacer. Affixed the back spacer at the back of the cellar for air circulation and heat evacuation. IMPORTANT - THIS SPACER MUST BE ATTACHED TO THE UNIT BEFORE INSTALLATION FOR VENTILATION PURPOSE.
- Page 6 An individual s perception of noise is directly linked to the environment in which the wine cellar is located, as well the specific type of models. VINTEC wine cellars are in line with international standards for such appliance. VINTEC will always do its utmost to satisfy its customers but will not retake possession of the goods due to complaints based on normal operating noise occurrences.
-
Page 7: Temperature Settings
TYPES OF REGULATION Please note that depending on the loading and settings chosen it takes 24hours for the wine cellar to see the temperature stabilizing. During this time LED seems to move erratically in particular for 2e models. It is a normal process. -
Page 8: Wine Serving Temperature Chart
Room temperature not exceeding 20 C IMPORTANT INFORMATION ABOUT TEMPERATURE Your VINTEC wine cellar has been designed to guarantee optimum conditions for storing and/or serving your wines. Fine wines require long and gentle developments and need specific conditions in which to reach their full potential. - Page 9 temperature that is important, but its consistency. In other words, as long as the temperature of your wine cellar is constant (between 12 C and 16 C) your wines will be stored in perfect conditions. Note: Not all wines will improve over the years. Some should be consumed at an early stage while others have tremendous ageing capability.
- Page 10 MODEL:V20SG e S3/V20SG e BK To prevent damaging the door gasket, make sure to have the door all the way opened when pulling shelves out of the rail compartment. When removing any of these shelves out of the rail compartment, To fit or remove the shelf, tilt the shelf as per the diagram and simply pull out, or push in the shelf until it sits on the support brackets securely.
- Page 11 Drawings for built-in purposes MODEL:V20SG"e"SS/V20SG"e" MODEL:V20SG e S3...
- Page 12 MODEL:V20SG e BK Installation limited block MODEL:V20SG e S3 After installing the wine cabinet, please open the door, adjust the fixing bracket (a)and fix this in position with two screws (c) using a screwdriver (d) into the work surface/kitchen cabinet.
-
Page 13: Operation Anomalies
Check fuse, if any. Make sure that the door is closed properly. If your wine cellar appears to be malfunctioning, unplug it and contact your VINTEC s after sales service. Any intervention on the cold circuit should be performed by a refrigeration technician who should carry out an inspection of the circuit sealed system. -
Page 14: Troubleshooting Guide
TROUBLESHOOTING GUIDE Common problems may easily be solved, saving you the cost of a possible service call. Please read carefully the instruction manual and revert to troubleshooting guide chart. PROBLEM POSSIBLE CAUSE Not plugged in. Wine cellar does not operate. The appliance is turned off. - Page 15 Product specification Chart V20SG"e"SS V20SG"e" V20SG e S3 V20SG e BK V20SG"e"SS Technical data (R134a) (R600a) (R600a) (R600a) (R600a) Capacity750ml Net capacity 57 L 57 L 56 L 56 L 57 L Gas charge quantity Pre-set temp in degrees 5 -18 C or 5 -18 C 5 -18 C 5 -18 C...
