Summary of Contents for Wellav CMP201

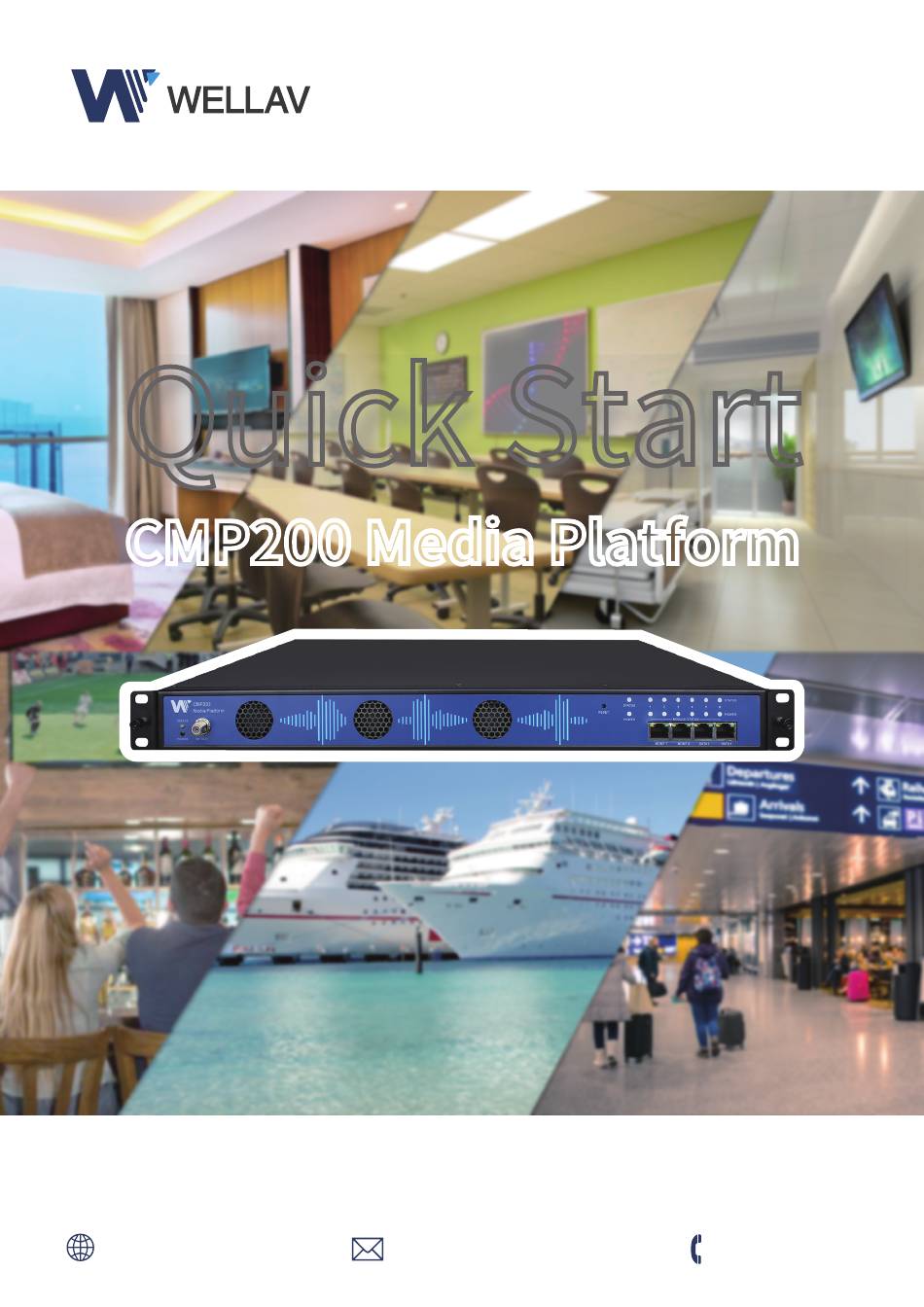

- Page 1 Quick Start CMP200 Media Platform CMP200 Media Platform www.wellav.com service@wellav.com +86-752-2760230...
- Page 2 CMP200 Unpacking Please check with the list to ensure your order is complete: Base unit × 1 Power cord × 1 Quick start guide × 1 User guide disk × 1 Specific modules and cables you ordered Rack Mounting and Cable Connecting Before beginning, please make sure you have: CMP200 mounted in a 19”...
- Page 3 CMP200 Pic A: Receiver module 1-FTA or scrambled DVB-S/S2 signal Picture A: Receiver 2-DVB-C/DTMB/ISDB-T signal 3-FTA or scrambled DVB-T/T2 signal 4-FTA DVB-S/S2/S2X signal 5-8VSB signal RF input 6-FTA DVB-T/T2 signal Pic B: Encoder module Picture B: Encoder 1-MPEG-2/H.264/HEVC HDMI encoder HDMI input 2-HDMI encoder with CC YPbPr input...
- Page 4 CMP200 Pic C: Modulator module 1-4/8 CH OFDM modulator Picture C: Modulator 2-4/8 CH QAM modulator 3-16 CH QAM modulator 4-4/8 CH DTMB modulator 5-4/8 CH ISDB-T modulator RF output 6-4/8 CH 8VSB modulator Pic D: Function module Picture D: Function module HDMI input 4-HDMI encoder modulator RF output...
- Page 5 CMP200 Connecting your unit Connect your management computer Ethernet port directly to the NMS port on front panel or on the same management switch as the unit connected. And plug the power cord to the power supply connector and turn on the unit. Management Switch Data Switch Power cord connected to power socket...
