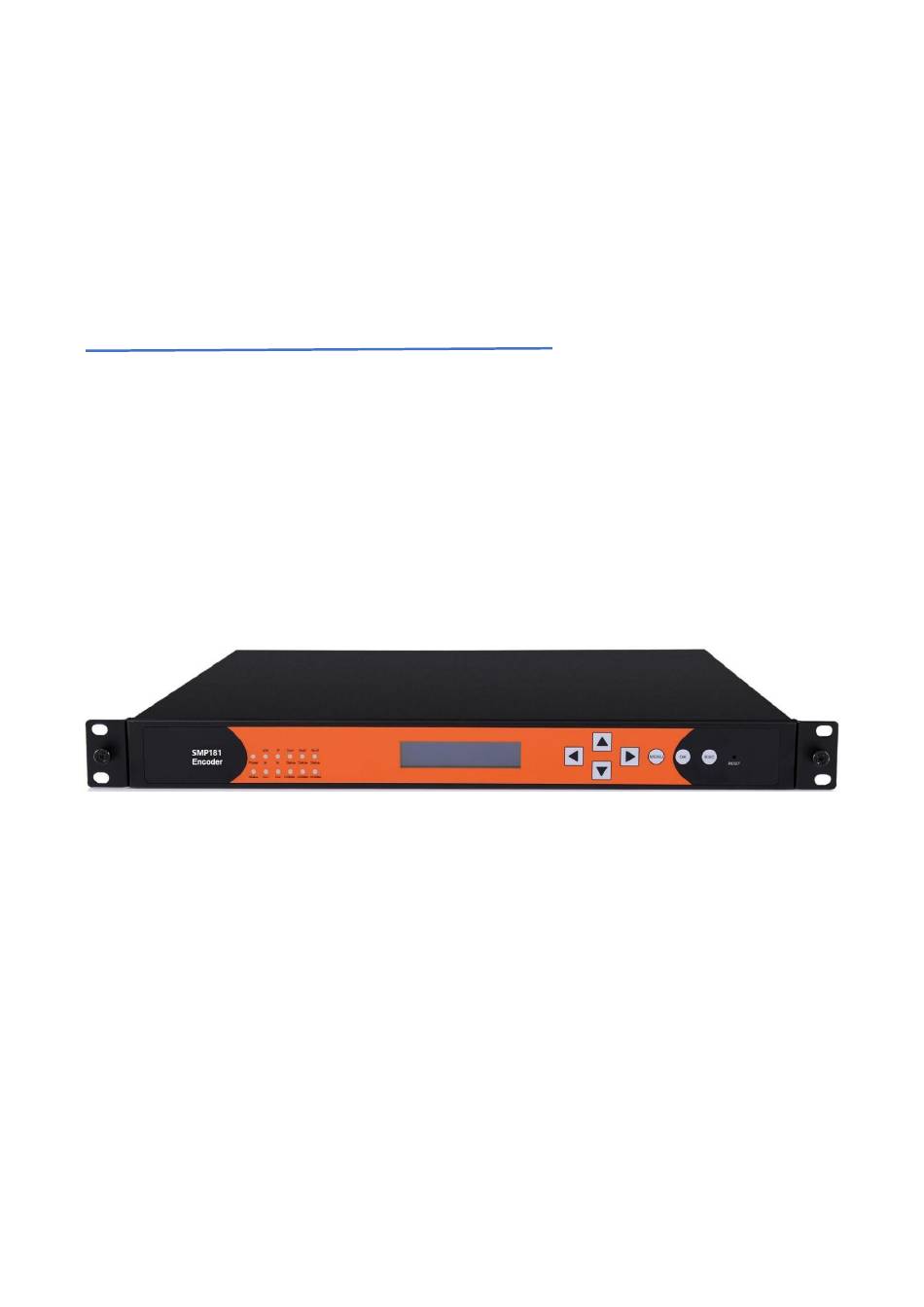

- Page 1 SMP181-HLS User Guide V1.1-N DVBCommunity - cообщество профессионалов ЦТВ https://dvbcommunity.ru/...
- Page 2 SMP181-HLS User Guide Revision History Date Version Description Author 12/8/2016 First Draft 3/5/2017 1.1-N UI Update This guide contains some symbols to call your attention. The DANGER symbol calls your attention to a situation that, if ignored, may cause DANGER physical harm to the user.
-
Page 3: Table Of Contents
SMP181-HLS User Guide Contents PART 1 SMP181 CHASSIS OVERVIEW · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 1 1.1 F... - Page 4 SMP181-HLS User Guide AFETY NSTRUCTIONS Read these instructions Keep these instructions Follow all instructions Heed all warnings Do not use this unit near water. Only use a damp cloth to clean chassis Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat ...
- Page 5 SMP181-HLS User Guide Safety Precautions There is always a danger present when using electronic equipment. Unexpected high voltages can be present at unusual locations in defective equipment and signal distribution systems. Become familiar with the equipment that you are working with and observe the following safety precautions.
-
Page 6: Part 1 Smp181 Chassis Overview
Part 1 SMP181 Chassis Overview 1.1 Front Panel Overview SMP181-HLS is a 2-channel decoder with HLS stream receiving interfaces. On the back of its chassis, there also built-in ASI and IP I/O interfaces. 1. Indicators ( For Power, ASI, TS/IP and decoder status) ... -
Page 7: Part 2 Rack Installation
SMP181-HLS User Guide Part 2 Rack Installation Rack Installation The SMP181 is designed to be mounted in a standard 19” rack. It takes 1RU of rack space. To install it into a rack, please use the following steps: 1. Determine the desired position in the rack for the SMP181. Make sure that the air intake on the top of the unit and the exhausts on the back of the unit will not be blocked. -
Page 8: Part 3 Web Ui Overview
SMP181-HLS User Guide Part 3 Web UI Overview 3.1 Web UI Introduction 3.1.1 Connecting to the Management Port Factory network settings of the Management Port: IP address 192.168.1.241 Subnet Mask 255.255.255.0 Gateway 192.168.1.1 Use the following step to access the Web UI in a browser. -
Page 9: Logging Into The Web User Interface
SMP181-HLS User Guide 3.1.2 Logging into the Web User Interface Type the management IP address into the URL field of any recommended browser (IE8 or above, Firefox, and Google Chrome) to access the logon page. By default, the admin user account is admin with password admin. -
Page 10: Service Configuration Introduction
SMP181-HLS User Guide Status pages summarize the input and output bitrate in each board. Module Configuration is where you set input and output parameters for each board. Service Configuration is where to distribute services. See 3.1.4 Equipment Configuration includes the basic settings for a SMP181 unit. -
Page 11: Part 4 Input And Output
SMP181-HLS User Guide Apply Click to apply the configuration you have just done. There are also Apply buttons in other pages. Click Apply buttons every time you complete the settings in these pages. SMP181 Save Click to save all the configurations into the flash memory. Only in this way will the able to restore all the configurations after power recycling. -
Page 12: Built-In Asi Input
SMP181-HLS User Guide Go to Status > TSIP+02, verify the input bitrate, resolution and frame rate are correct. Go to Service Configuration. Right-click on TS1 to Scan TS. After the scan, the service will be listed under TS1. See the following image, we have Service01 in TS1. -
Page 13: Built-In Ip Input
SMP181-HLS User Guide Go to Service Configuration, Right click on ASI input TS1 to scan the input stream. 4.1.3 Built-in IP Input Go to Module Configuration > Slot5 TSIP [Embedded] > Setup. Configure network settings for the embedded TSIP board. Click Apply before you go to the next step. - Page 14 SMP181-HLS User Guide Go to Status > Slot5 TSIP [Embedded], verify the input bitrate of each IP input channels. Go to Service Configuration and Scan TS. Refer to ASI input configuration steps. DVBCommunity - cообщество профессионалов ЦТВ https://dvbcommunity.ru/...
-
Page 15: Configuring Output
SMP181-HLS User Guide 4.2 Configuring Output 4.2.1 Decoder Go to Module Configuration > Decoder CC. Two decoding channels are available. See the following image. Some of the items have optional settings: Aspect Ratio Conversion Auto, 4:3 Letter Box, 4:3 Pan and Scan, 16:9 Letter Box, 16:9 Pan and Scan... -
Page 16: Built-In Asi Output
SMP181-HLS User Guide Mixer Stereo, Left, Right, Mono, Dual Line 4 ~ 9 Audio Group Off, Audio1 PCM, Audio2 PCM Refer to 4.2.4 about how to distribute a service to the Decoder. 4.2.2 Built-in ASI Output Go to Module Configuration > Slot4 ASI [Embedded], Enter a Constant Rate for the ASI port. -
Page 17: Configuring Output In Service Configuration
SMP181-HLS User Guide Check the small boxes to open output channels. Choose Protocol. Enter IP address, Dest Port and Constant Rate. Click Apply before you go to the next step. Go to Service Configuration. Distribute an input TS to the TSIP output Port. Refer to 4.2.4 4.2.4 Configuring Output in Service Configuration... - Page 18 SMP181-HLS User Guide One Decoder Port decodes only one service. But you can drag more than one service from input to embedded ASI and TSIP output TS’s, which is called multiplexing. Drag a TS to an output port Right-click on an existing input TS, drag and drop it on an empty output TS. See the following image.
-
Page 19: Other Configurations
SMP181-HLS User Guide 4.3 Other Configurations 4.3.1 Delete Input TS Right-click on a TS under an input port. Click Clear TS to remove this input TS. Click Apply. 4.3.2 Bypass Input TS Right-click on a TS under an input port. Click Bypass TS to passthrough this TS. A bypassed TS and the services in this TS will not be multiplexed. -
Page 20: Edit Ts Info
SMP181-HLS User Guide Move the cursor to any service or PID in this service, you can delete it whenever you can see the red cross. 4.3.4 Edit TS Info Right-click a TS under an output port, then click Edit TS Info to change service name, PID’s, TS ID and Original Network ID. -
Page 21: Part 5 Equipment Configuration
SMP181-HLS User Guide Part 5 Equipment Configuration 5.1 System Default Click to restore factory settings. SMP181 will reboot by itself after Default process. Reboot Click to restart this unit without power off. 5.2 Version Information/Upgrade DVBCommunity - cообщество профессионалов ЦТВ... -
Page 22: License
SMP181-HLS User Guide Browse Click to select the software. Then click Upgrade to start update process. If it is a mainboard upgrade, SMP181 will reboot by itself after upgrade is finished. If it is module upgrade, Go to Module Configuration and click Reboot to activate the new software. -
Page 23: Login User Management
SMP181-HLS User Guide 5.5 Login User Management By default, the administrator user name and password are both admin. If the password is lost, you can perform factory setting on the front panel buttons. In that case, all the configuration will be erased. -
Page 24: Part 6 Appendices
SMP181-HLS User Guide Part 6 Appendices Appendix A - Warranty We warrants this instrument against defects from any cause, except acts of God and abusive use, for a period of 1 (one) year from date of purchase. During this warranty period, we will correct any covered defects without charge.
