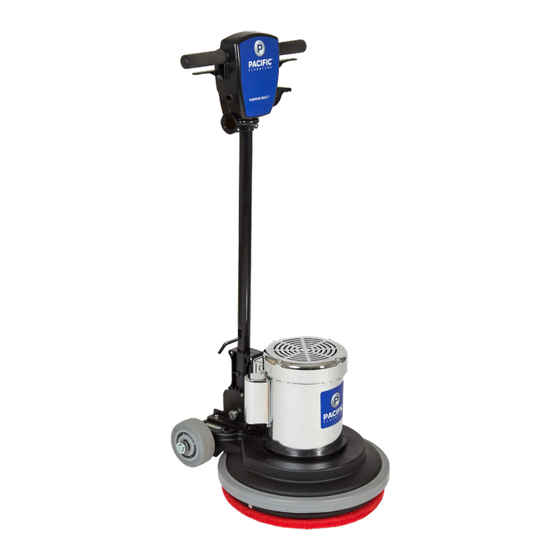

FM-17 EHD / FM-20 EHD
EXTRA HEAVY DUTY FLOOR MACHINE
Model: 535457 & 535456
PARTS & OPERATING MANUAL
Thank you for purchasing a Pacific Floorcare product. Carefully inspect all components for freight damage. If such
damage is discovered, file a "CONCEALED DAMAGE REPORT" immediately with the delivering carrier.
Read this manual carefully and keep it near the machine, protected from liquids and other damaging substances. Failure to
follow the instructions may result in injury or damage to equipment and property.
The contents of this manual are based on the latest product information available at the time of publication. Pacific
Floorcare reserves the right to make changes or improvements without being obliged to apply changes to the machines
previously sold.
New manuals can be downloaded from: www.pacificfloorcare.com/manuals
Advertisement
Table of Contents
Related Manuals for Pacific FM-20 EHD
Summary of Contents for Pacific FM-20 EHD
- Page 1 The contents of this manual are based on the latest product information available at the time of publication. Pacific Floorcare reserves the right to make changes or improvements without being obliged to apply changes to the machines previously sold.
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS To ensure the safe operation of this machine, you must read and understand all warnings and instructions in this book. If you do not un- derstand, ask your supervisor. WARNING: INDICATES A POTENTIALLY HAZARDOUS SITUATION WHICH, IF NOT AVOIDED, COULD RESULT IN DEATH OR SERIOUS INJURY. - Page 3 Grounding Instructions This machine must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This machine is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
-
Page 4: Operating Procedures
OPERATING PROCEDURES WARNING! For the safe operation of this machine follow the instructions given in this manual and the training given by your supervisor. Failure to do so can result in personal injury and/or damage to machine and property! DO NOT OPERATE MACHINE IN AN EXPLOSIVE ENVIRONMENT! This machine is intended for commercial use. -
Page 5: Operation
OPERATING PROCEDURES OPERATION Plug the machine’s power cable into a properly grounded outlet (see Safety Instructions). Next, adjust the handle height to a comfortable position by pulling up on the handle adjustment lever as shown below. The machine will not start when the handle is in the upright position. -
Page 6: Maintenance
OPERATING PROCEDURES MAINTENANCE AFTER EACH USE: Store the machine in a clean dry area. Wipe the entire machine and cord down with a clean cloth. Remove the pad or brush and clean thoroughly. Wrap the machine’s electrical cord onto the handles and the cord hook provided. CHECK the cord and plug for nicks, cuts or damage. - Page 7 APPLICATION DETAILS FOR PAD/BRUSH USE For best cleaning results, use the appropriate pad/brush for your cleaning application. If you need help sourcing the ap- propriate pads/brushes for your application, please contact your sales representative or if this is unknown, contact your supervisor.
- Page 8 SUGGESTED SERVICE PART LISTING OPTIONS DESCRIPTION PART NUMBER 17-INCH QTY 20-INCH QTY Block, clamp, handle 531303 Bumper, 17-inch 481202 Bumper, 20-inch 481203 Capacitor, run 531505 Cord, electrical, 50-feet 908129 Driver, pad, 17-inch 505903 Driver, pad, 20-inch 505905 Grip, handle 533701 Housing, front 534201 Housing, rear...
- Page 9 FM-17EHD FLOOR MACHINE - BASE ASSEMBLY ITEM QTY PART NUMBER DESCRIPTION 531304 BASE, 17INCH, ROTOMOLD 481202 BUMPER GREY PX17.ipt 535201 MOTOR & GEARBOX 175RPM HD 1.5HP 962474 SCREW .31-18X1.5 SHC ZINC GR8 980094 WASHER, SPLIT LOCK, .31, SS 980109 WASHER FLAT .31 X 1.0 ZINC 920012 NUT, NYLOCK, 5/16-18, ZINC W243D...
- Page 10 W189D SCREW, HEX, 1/4-20 X .75, SS, PATCH 980002 WASHER, LOCK, SPLIT, .25 W104D WASHER, FLAT, .25 534801 INDICATOR LEVEL 962391 SCREW TAPPING #6 X 1.0 536802 PLUG HOLE 2.0 INCH 505197 LABEL, PACIFIC, 3 INCH 505914 DRIVER PAD 20INCH...
- Page 11 CORD SET HANDLE FM S611A CLAMP, HOSE, WORM 980018 WASHER #10 C-SUNK EXT SHKPRF 911117 TIE-CABLE .098 X 8 PLT-2 204179 HOSE .25ID .38OD 533701 GRIP FM CLOSED 515148 LABEL WARNING TRI-LINGUAL 535101 LABEL, PACIFIC, FM 253801 GROMMET .88ID 1.25HOLE .125THK...
- Page 12 FM-17EHD & FM-20EHD FLOOR MACHINES - WEIGHT ASSEMBLY ITEM QTY PART NUMBER DESCRIPTION 539501 WEIGHT DISK FM 980109 WASHER FLAT 5/16 1.0 ZINC 537702 SHAFT RETENTION WEIGHT 875003 KNOB, MALE, 5/16-18 920040 NUT 5/16-18 NYLOCK SS THIN 877207 RETAINER...
- Page 13 FM-17EHD & FM-20EHD FLOOR MACHINES - MOTOR & GEAR BOX ASSEMBLY ITEM QTY PART NUMBER DESCRIPTION 533502 GEAR BOX ASSY 535203 537302 RING 535201 535202 & 535203 532402 COUPLING 535203 537303 RING 535201 535202 & 535203 531503 END BELL LOWER 535203 964255 SCREW 535203 537503...
- Page 14 FM-17EHD & FM-20EHD FLOOR MACHINES - SOLUTION TANK ASSEMBLY (OPTIONAL) FULL ASSEMBLY CAN BE ORDERED AS PART NUMBER 545005 ITEM QTY PART NUMBER DESCRIPTION 548601 TANK ASSY FM 533301 FITTING STR .25 FPT .25 BARB BRASS 544105 TUBING 1/4” - 11” 533302 FITTING ELBOW .25NPT .25 BARB NYL T4056...
- Page 16 www.pacificfloorcare.com...
