PARTS & OPERATING MANUAL

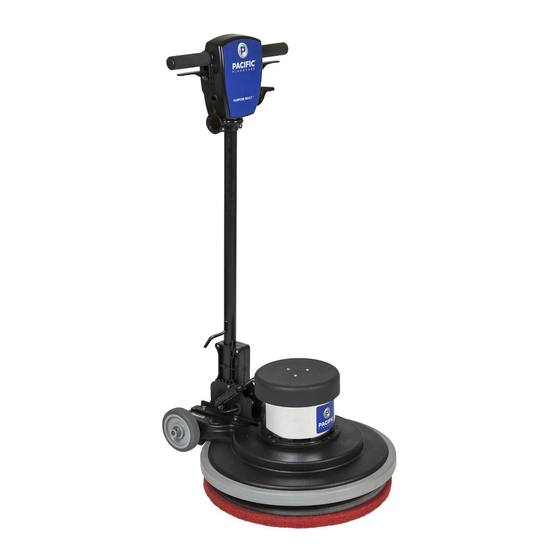

FM-17EHD & FM-20EHD
FLOOR MACHINES
This operator's book has important information for the use and safe operation of this machine. Read
this book carefully before starting the machine. Keep this book and tell all operators to read the book. If
you do not follow the instructions, you can cause an injury or damage equipment, furniture or buildings.
For new books, please download your copy from our website www.pacificfloorcare.com or write to:
Pacific Floorcare
2259 S. Sheridan Drive
Muskegon, MI 49442-6252
Carefully inspect all components to ensure that there is no concealed freight damage. If such damage is
discovered, file a "CONCEALED DAMAGE REPORT" immediately with the delivering carrier.
The contents of this manual are based on the latest product information available at the time of
publication. Pacific reserves the right to make changes or improvements without notice.
Thank you for purchasing a Pacific Floorcare product. Warranty registration will allow us to better
serve you over the lifetime of the product. For quick and easy registration, go to:
PLEASE READ THIS BOOK
www.pacificfloorcare.com/Register Product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FM-17EHD and is the answer not in the manual?

Questions and answers

Related Manuals for Pacific FM-17EHD

Summary of Contents for Pacific FM-17EHD

  • Page 1 Pacific reserves the right to make changes or improvements without notice. Thank you for purchasing a Pacific Floorcare product. Warranty registration will allow us to better serve you over the lifetime of the product. For quick and easy registration, go to:...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS To ensure the safe operation of this machine, you must read and understand all warnings and instructions in this book. If you do not understand, ask your supervisor. READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE WARNING : To reduce the risk of fire, electric shock, or injury: 1.

  • Page 3: Operating Procedures

    OPERATING PROCEDURES WARNING! For the safe operation of this machine follow the instructions given in this manual and the training given by your supervisor. Failure to do so can result in personal injury and/or damage to machine and property! DO NOT OPERATE MACHINE IN AN EXPLOSIVE ENVIRONMENT! This machine is intended for commercial use.
  • Page 4 FM-17EHD & FM-20EHD FLOOR MACHINES...
  • Page 5 ITEM PART NO. DESCRIPTION QTY. ITEM PART NO. DESCRIPTION QTY. 504810 Interlock Assembly 504420 Hook, Cord 962011 Screw, 10-32 x 2 Oval 505010 Knob, Turn 962002 Screw, 10-32 x 1/2 Oval 980007 Washer, 5/16 Flat 980018 Washer, #10, C-Sunk, Ext. 500840 Brace 486407...
  • Page 6 FM-17EHD & FM-20EHD FLOOR MACHINES - MOTOR & GEAR BOX ASSEMBLY...

  • Page 7: Wiring Diagram

    ITEM PART NO. DESCRIPTION QTY. 485202 Motor Only, 1.5hp, 115V, 60C 483101 Stator Assembly 480401 Rotor Assembly 481306 Box, Capacitor (Item 39 on pg 4) 483401 Gasket (Between Motor & Capacitor Box) Cord Assembly, Motor 486604 Plate, End 960038 Bolts, Thru 483001 Fan, External 482303...
  • Page 8 The inoperative machine or warranted parts must be delivered to the authorized dealer with shipping and delivery charges prepaid. If unable to locate the Dealer, you may contact Pacific at the address listed herein for the location of the nearest Pacific repair center or agent or for other instructions pertaining to your warranty difficulty.
