Summary of Contents for Reina NIKA

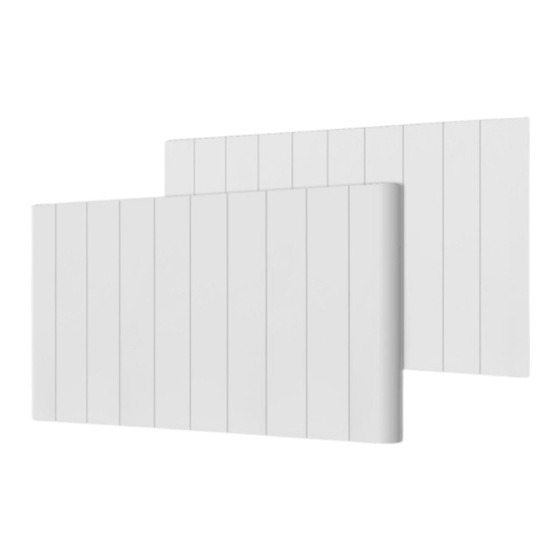

- Page 1 Electric Panel Heater Instruction Manual MAIA&NIKA-H...
-
Page 2: Table Of Contents
Table of contents 1. Safety & Warnings 2. Technical Specifications 3. Installation 3.1 Fixings 3.2 Wall mounting instructions 3.3 Free Standing Instructions 4. Control Panel 4.1 Standby Mode 4.2 Heating Mode 4.3 Child lock 4.4 Supplementary functions 4.5 Tilt Protection 4.6 Reset to Defaults 5. -
Page 3: Safety & Warnings
INSTRUCTION MANUAL Read this manual carefully before using or installation the device. Keep the manual for future reference. Warning: This device must be installed by a licensed electrician. 1. SAFETY & WARNINGS • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. -
Page 4: Technical Specifications
• Allow the device to cool down before touching or transporting the device, or attempting maintenance work. • The device must be placed where the switches and controllers cannot be touched by a person in a bathtub or shower. 2. TECHNICAL SPECIFICATIONS Code MAIA/NIKA-H Heating element X shaped Aluminum Voltage 230V AC / 50Hz... -
Page 5: Installation
INSTRUCTION MANUAL 3 INSTALLATION 3.1 Fixings Before installing, check that all fixings are complete, and the product is intact. The radiator should only be wall mounted with the manufacturer’s fixings. Feet x 2 Hanging Plate x 2 Wall Bracket x 2 Wall Anchor &... - Page 6 INSTRUCTION MANUAL Fix the wall brackets: a) Using the template, make two marks on the wall according to the product size. b) Using a 6mm drill bit, drill two holes where you make your marks. c) Knock a wall plug into each hole using a hammer. d) Position the wall hangers over the holes and use two wall screws to fix them in place.
-
Page 7: Free Standing Instructions
INSTRUCTION MANUAL 3.2.3 Hang the heater Hang the heater on the wall brackets and fix in place with two M4*12 bracket screws. 3.3 Free Standing Instructions To use the heater free standing, you must first affix the feet: a) Make sure the heater is off and turn the heater upside down. b) Align the holes on the feet with the holes on the base of the heater. -
Page 8: Control Panel
INSTRUCTION MANUAL 4. CONTROL PANEL Temperature Display Anti-freeze Time Frames Up Button LST Mode ON/OFF Device is heating Child Lock Connected to WiFi Mode Change Timer Eco Mode Down Button Open Window Detected Time and Day Comfort Mode The controller has below functional modes: 4.1 Standby Mode 4.2 Heating Mode 4.4 Supplementary functions... - Page 9 INSTRUCTION MANUAL 4.1 Standby Mode When the radiator first switches on it appears in standby mode and the radiator will not heat. You can use the button to switch between stadby and heating modes. 4.2 Heating Mode Press the button to switch the radiator on. Press the button to change the heating mode.
- Page 10 INSTRUCTION MANUAL • Day of week setting: Press to set the day of week, the setting range is 1~7 in steps of 1day. where 1 = Monday, 2 = Tuesday and so on. Press and hold the button to speed up. (Figure-3) Figure-2 Figure-1 Figure-3...
- Page 11 INSTRUCTION MANUAL 4.4 Supplementary functions The settings menu allows you to enable, disable and configure all the radiator’s supplementary functions. Press to put the radiator into standby mode and hold down for 10 seconds to enter the settings menu. Press button to to switch functions: Temperature compensation →...
-
Page 12: Tilt Protection
INSTRUCTION MANUAL 4.5 Tilt Protection As a safety feature, this radiator is fitted with a tilt protection function that automatically places the radiator into standby mode if the appliance fell down. When the appliance is returned to an upright position, normal operation will then be resumed. 4.6 Reset to Defaults Press to put the radiator in standby mode. -
Page 13: Using The App
INSTRUCTION MANUAL Begin connecting and added Enter your WiFi passwor successfully If the heater successes to connect, “PS” will be shown on the display. If the heater fails to connect, “FA” will be shown on the display. Troubleshooting Problem Action the thermostat sensor has become Er is displaying disconnected... -
Page 14: Choose Mode
INSTRUCTION MANUAL 6.3 Choose Mode Tap the mode button on the interface to choose mode. The six options correspond to the six modes on the control panel. Comfort, Eco, Anti-Freeze, Program, Auto and Holiday mode. 6.3.1 Comfort & Eco Mode In comfort and Eco mode, simply use the sliding dial to adjust the set room temp. -
Page 15: Device Setting
INSTRUCTION MANUAL 7. DEVICE SETTINGS Tap the setting icon to view and adjust the radiator’s settings. This menu allows you to configure several settings not available through the control dial. 7.1 Child Lock Use the toggle switch to lock or unlock the radiator display. displays on the screen when the device is locked.
