Reina CASINA Installation Manual

CASINA (for 5 and 7 tubes) INSTALLATION GUIDE
Use the Rubber !
GENERAL RECOMMENDATION
- Before fitting the radiator it is necessary to wash out the heating system to remove any existing mud, scale, work residues, traces of flux, oil, etc.
- When the system water pH is outside the 8,5-5,5 range and/or when the dissolved is above 0,1mg/liter, it is always needed to protect the heating system components (the radiator is one of these) with
a proper chemical treatment compatible with all parts in contact with water (silicon rubber too).
- In order to fit the radiator to the wall, it is necessary to choose the proper fixings for the wall material.
- If the system water exceeds °50C, please install a warning mark near the radiator to avoid any accidental scalding.
- Clean the radiator surface only with a soft cloth to avoid scratching the finish and do not use chemical againts during cleaning operations. It is prohibited to climb onthe radiator.
- Maximum working temperature °95C, maximum working pressure 4 bar.
This product must be fitted only by a fully qualified installer.
CLIPS
2 PCS
WALL ANCHORS
4 PCS
FIXING SCREWS
4 PCS
CAP
2 PCS
END PLUG
1 PCS
AIR VENT
1 PCS
RUBBER
2 PCS

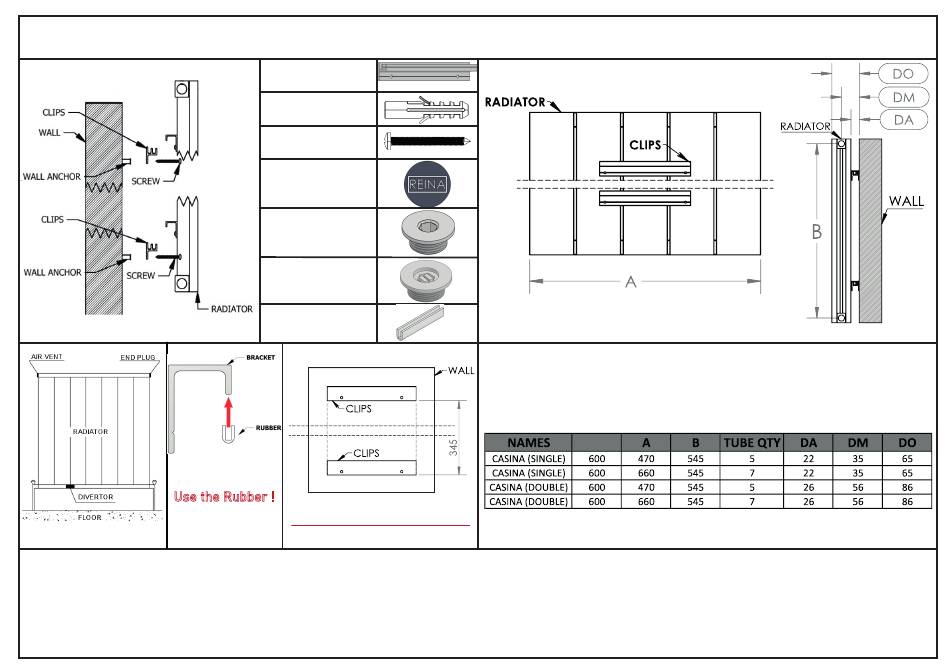

The installation guide for wall clips
This picture represents behind look of a double type radiator with 5 tubes.
