MAN-0014-B
TM-CO-DRXL Installation and
User Guide
RELEASED 07.22.20
TM-CO-DRXL Mobile Trans-Former
Installation and User Guide
Model: TM-CO-DRXL
Revision: July 2020
Reina Imaging 6107 W. Lou Ave., Crystal Lake, IL 60014 800-752-4918
www.reinaimaging.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TM-CO-DRXL and is the answer not in the manual?

Questions and answers

Related Manuals for Reina TM-CO-DRXL

Summary of Contents for Reina TM-CO-DRXL

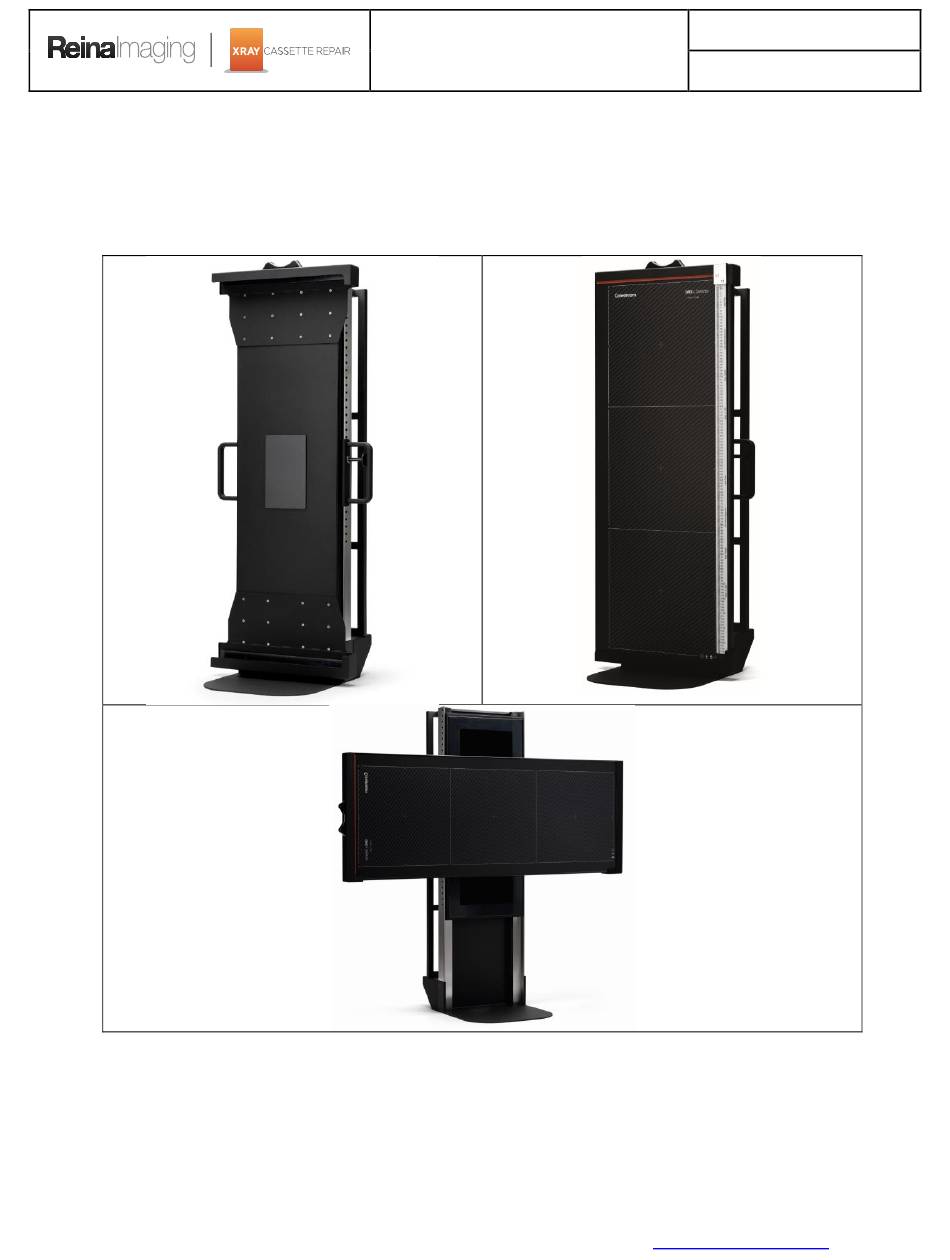

  • Page 1 MAN-0014-B TM-CO-DRXL Installation and User Guide RELEASED 07.22.20 TM-CO-DRXL Mobile Trans-Former Installation and User Guide Model: TM-CO-DRXL Revision: July 2020 Reina Imaging 6107 W. Lou Ave., Crystal Lake, IL 60014 800-752-4918 www.reinaimaging.com...

  • Page 2: Table Of Contents

    Height Adjustment of Long-Length DR Panel Long-Length DR Panel Rotation Device Position 6.4.1 Stabilizer Legs Patient Position Product Maintenance Maintenance Cleaning Changes to This Document Reina Imaging 6107 W. Lou Ave., Crystal Lake, IL 60014 800-752-4918 www.reinaimaging.com Page 2 of 17...

  • Page 3: Intended Use

    • Failure to adhere to the Precautions listed herein may result in injury to user or patient! Compliance The TM-CO-DRXL Mobile Trans-Former is a Class 1 Medical Device (510k exempt) in the USA and is registered to: Reina Imaging 6107 W. Lou Avenue...

  • Page 4: Warranty

    TM-CO-DRXL Installation and User Guide, July 2020 iii. Warranty Reina Imaging warrants to the Original Purchaser that this product will be free from defects in its workmanship and materials, under normal use and service conditions, as described herein. “Defects” as used in this warranty, is defined as any imperfections which impair the use of the product.

  • Page 5: About This Manual

    The user accepts all risks and Reina Imaging shall not be responsible for any liability caused by improper use. Reina Imaging assumes no responsibility to assess the user’s technical ability or clearance to...

  • Page 6: Changes To This Manual

    • Device-specific Cautions – Some cautions listed in this manual are specific to this device. The “Do Not Lean” symbol means that the user or patient should not lean on the TM-CO-DRXL, as it is a mobile device and could shift or move.

  • Page 7: Required Tools And Equipment

    • The unit is pre-assembled but take care in uncrating, as the device is heavy. • Follow all warning labels on the unit and these instructions. Reina Imaging 6107 W. Lou Ave., Crystal Lake, IL 60014 800-752-4918 www.reinaimaging.com Page 7 of 17...
  • Page 8 Detector Mount. The Long-Length DR Panel must be mounted with the Detector Mount in the factory-set position. Reina Imaging 6107 W. Lou Ave., Crystal Lake, IL 60014 800-752-4918 www.reinaimaging.com Page 8 of 17...
  • Page 9 Detector Mount by sliding it between the support guides in the portrait orientation and carefully pushing it until it is fully seated against the stops. Reina Imaging 6107 W. Lou Ave., Crystal Lake, IL 60014 800-752-4918 www.reinaimaging.com Page 9 of 17...

  • Page 10: Mounting The Long-Length Dr Panel

    DR Panel) by sliding it into the Detector Mount in the portrait orientation, taking care to keep it straight so it slides easily into position. Mounting the Grid Figure 5.3 Reina Imaging 6107 W. Lou Ave., Crystal Lake, IL 60014 800-752-4918 www.reinaimaging.com Page 10 of 17...

  • Page 11: Securing The Long-Length Dr Panel And Grid

    Figure 5.5 Removing Red Safety Screw 5.6. Moving the TM-CO-DRXL – Lower the Detector Mount to its lowermost position. Make sure stabilizer legs are in the “up” position. Hold the frame from the rear near the top, place foot on bottom of frame and tilt the device back toward you.

  • Page 12: Moving The Device

    To reach the lowermost position place your left hand on top of the Detector Mount and apply downward pressure. Reina Imaging 6107 W. Lou Ave., Crystal Lake, IL 60014 800-752-4918 www.reinaimaging.com Page 12 of 17...

  • Page 13: User Operations: Height Adjustment And Rotation

    Detector Mount. Adjusting Height of Long-Length DR Figure 6.2 Panel Reina Imaging 6107 W. Lou Ave., Crystal Lake, IL 60014 800-752-4918 www.reinaimaging.com Page 13 of 17...

  • Page 14: Long-Length Dr Panel Rotation

    Always make sure the device is perpendicular to the central ray of the x-ray source and patient is standing on the tongue of the TM-CO-DRXL before performing a radiographic examination. If the patient is not standing on the tongue, the main body could move during the examination, potentially causing a patient to lose balance or fall, or create motion-induced blurring in the resultant image.

  • Page 15: Device Position

    Stabilizer Legs Figure 6.4.1 6.5. Patient Position - The patient must stand on the tongue of the TM-CO-DRXL to stabilize the device during a radiographic exam. Standing on the Tongue, PA/AP Figure 6.5 7.

  • Page 16: Changes To This Document

    07.22.20 B Updated Pictures ALL QUESTIONS AND CONCERNS SHOULD BE FORWARDED TO: REINA IMAGING 6107 W. LOU AVE., CRYSTAL LAKE, IL 60014 800-752-4918 www.reinaimaging.com Reina Imaging 6107 W. Lou Ave., Crystal Lake, IL 60014 800-752-4918 www.reinaimaging.com Page 16 of 17...
  • Page 17 TM-CO-DRXL Installation and User Guide, July 2020 Reina Imaging 6107 W. Lou Ave., Crystal Lake, IL 60014 800-752-4918 www.reinaimaging.com Page 17 of 17...
