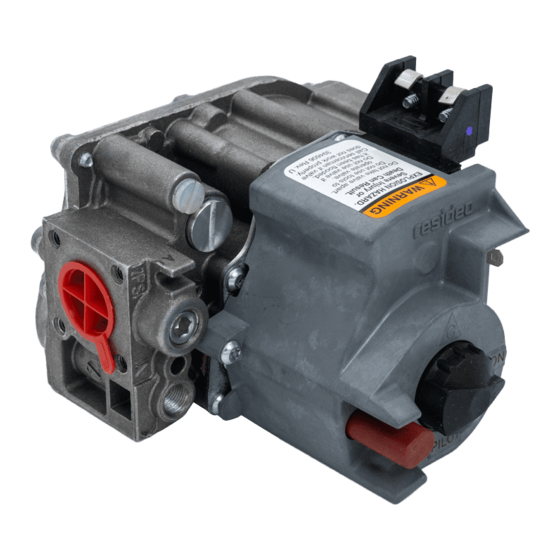

resideo VR8200H1251 Installation Instructions Manual

V8200A,C,H,M and VR8200A,C,H,M
Continuous Pilot Combination Gas
Controls
APPLICATION
These continuous pilot combination gas controls are
used in gas-fired appliances up to 200 cfh capacity of
natural gas. They include safety shutoff, a manual valve,
one or two automatic operators, a pressure regulator
and a pilot filter. Body pattern is straight-through with
1/2 in. inlet and 1/2 in. outlet. An ECO connector (part
no. 393200-1) with two 1/4 in. quick connect terminals
is available.
See Table 1 for model differences and Table 2 for
temperature ranges and regulator types.
Additional 90° angle and straight flanges are available
for 3/8, 1/2, and 3/4 in. pipe. See Table 3 for flange part
numbers. Flange kits include one flange with attached
O-ring, four mounting screws, and a 9/64 in. hex wrench.
Model Frequency
V8200 24 V/60 Hz
VR8200 24 V/60 Hz
Table 2. Model Number Suffix Letter Designation.
Model No. Ambient
Suffix Temperature
Letter
A 0° to 175° F (-18° to 79° C)
C 0° to 175° F (-18° to 79° C)
H 0° to 175° F (-18° to 79° C)
M -40° to 175° F (-40° to 79° C) Standard
Table 1. Continuous Pilot Combination Gas Control Models.
Voltage Number of
Automatic Operators
Regulator
Range
Standard
Step-opening
Slow-opening
Controls are factory-set for natural (and manufactured)
or LP gas. Do not attempt to use a control set for natural
(manufactured) gas on LP gas, or a control set for LP on
natural (manufactured) gas.
Controls with standard or slow opening regulators can
be converted from one gas to the other with a
conversion kit (order separately). Order Part No. 393691
to convert from natural (manufactured) to LP gas; order
Part No. 394588 to convert from LP to natural
(manufactured) gas. Controls with step opening
regulators cannot be converted.
CSA Certificate: 112395
Australian Gas Association Certificate: 4752
Knob Positions
One OFF-PILOT-ON
Two OFF-PILOT-ON
Type Inlet/Outlet
Pipe Size
3/8 in. NPT
1/2 in. NPT
3/4 in. NPT
a
Elbow (angle) flanges cannot provide right hand inlet
when the ECO connector is used.
NOTE:
INSTALLATION INSTRUCTIONS
Gas Control
Table 3. Flange Part Numbers.
Flange
Type
Straight NA
393690-2
a
Elbow
Straight 393690-6
393690-3
a
Elbow
Straight 393690-4
393690-5
a
Elbow
Flange Kits include one flange with attached
O-ring and four mounting screws. Kits include
9/64 inch hex wrench, as noted.
Current
Draw
0.30
0.5
Part No.
Less With
Hex Hex
Wrench Wrench
393690-11
NA
NA
393690-13
NA
393690-15
69-0422-05
