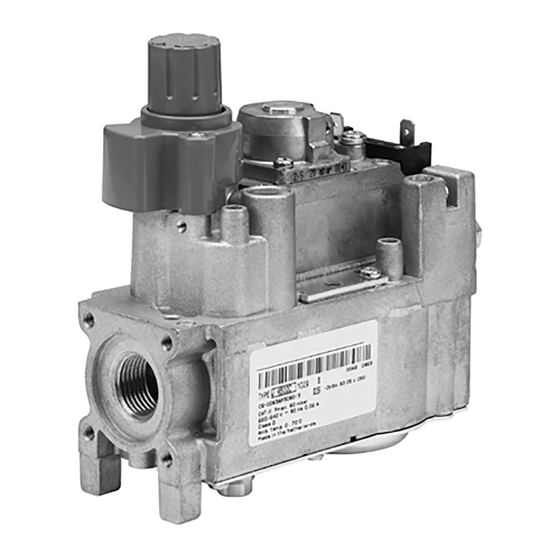

Compact gas control with throttle valve

Advertisement

Quick Links

APPLICATION

V4600/V8600E,T gas controls, together with Resideo pilot
burner/thermocouple and room/boiler thermostats, provide all
the functions necessary to safely regulate gas flow pilot
burner and main burner manifold of domestic heating boilers
(free standing and wall mounted), warm air furnaces and back
boilers.
V4600/V8600E,T gas controls are intended to be used for
manufactured, natural and LP gases (1
V4600/V8600E,T gas controls are approved in accordance
with existing european standards.

DESCRIPTION

V4600/V8600E,T gas controls comprise a pilotstat
mechanism, throttle valve and an electric operated on/off
valve.
The pilotstat is a thermoelectric safety device according to
european standards EN 125 and EN 126 and closes off the
gas supply to both main burner and pilot burner.
The electric on/off servo operator is an automatic shut- off
valve of class J according to EN 161 and closes off the gas
supply to the main burner.

SPECIFICATIONS

Models
V4600 serie: 220/240 V, 50 Hz.
V8600 serie: 24 V, 50 Hz.
Suffix E: fast opening and throttle valve
Suffix T: slow opening and throttle valve
COMPACT GAS CONTROL WITH THROTTLE VALVE

Dimensions

See fig. 1.
Ambient temperature
Pipe connection
Pipe connections are designed to meet the bending stress of
group 2 according to EN 161.
Standard:
Inlet and outlet can also be made with straight or elbow
flanges.
Special connection: Side outlet Ø14 mm
Standard at end outlet:
tubing.
Special connection: Included in the side outlet.
Capacity*
In m
st
nd
rd
, 2
, 3
family gas).
* Capacity curves are available on request.
Minimum differential pressure
Between inlet and outlet: 2.5 mbar
Minimum adjustable capacity
1.5 m
Maximum operating pressure
The P
maximum inlet pressure at which the gas control functions
safely.
Mounting holes
Two M5 mounting holes are located on the bottom of the gas
control.
The four holes at inlet and outlet for mounting the flange on
the gas control are provided with M5 thread with minimum
6.5 mm full thread.
The four holes for mounting the flange to the side outlet are
provided with M4 thread with min 6 mm full thread.
V4600/V8600E,T
0 ... 70 °C
1
Inlet:
/
" ISO 7- 1 internal parallel pipe thread.
2
1
Outlet:
/
" ISO 7- 1 internal parallel pipe thread or
2
Ø18.6 mm without thread.
1
/
", 4 mm or 6 mm outer diameter
4
air at ∆P of 2.5 mbar.
3
/
h
Pipe connection
1
1
/
" x
/
"
2
2
1
/
" x Ø18.6 mm
2
1
/
" x Ø14 mm side outlet
2
air at ∆P of 20 mbar
3
/
h
indication on the housing of the gas control is the
max
INSTRUCTION SHEET
Capacity
3.15
3.15
2.2
EN1R- 9099 2004R8- NE
