L5 WiFi Water Leak Shutoff Valve

APPLICATION

Thank you for purchasing Resideo's new L5 WiFi
Water Leak Shutoff Valve. When paired with
Resideo's WiFi Leak Detector(s), as soon as
M38768
water is detected, the L5 could automatically
shut off the water to reduce your potential water damage.
This guide will take you through everything you need to know
to get started.
WHAT'S IN THE BOX?
NOTE: Box content is dependent on market availability
based on configuration.
E
D
B

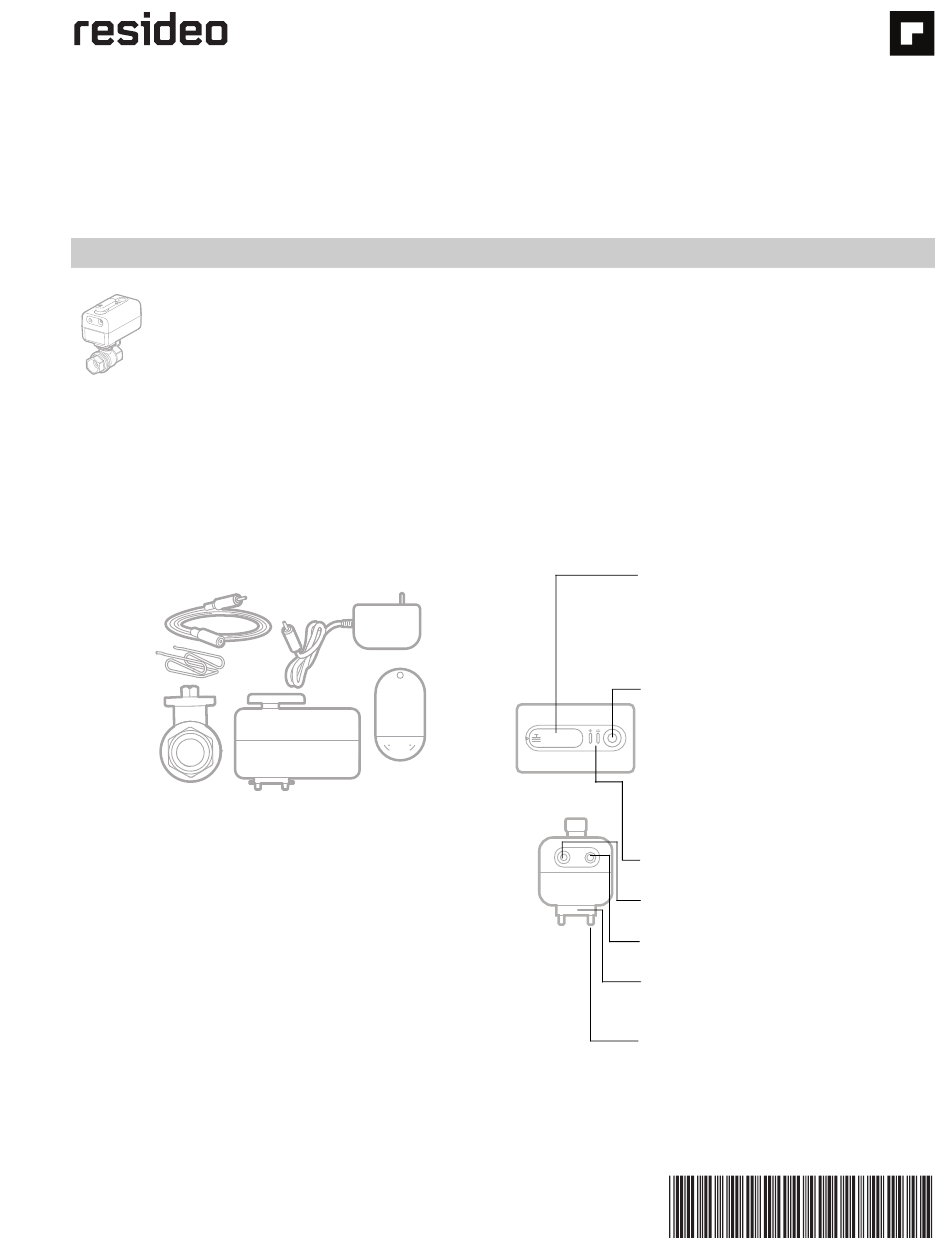

Fig. 1. Included parts.

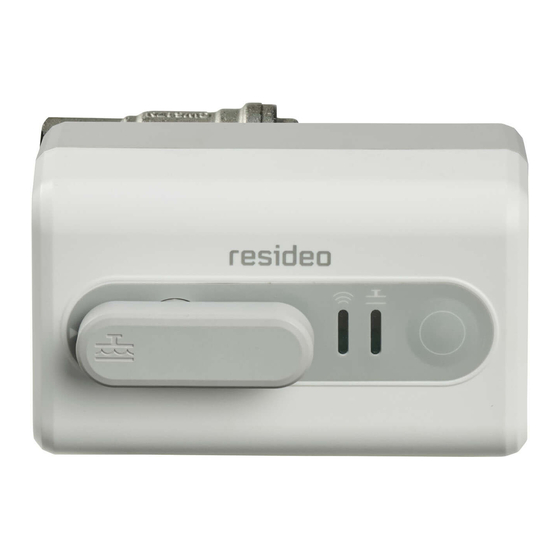

A. L5 Actuator: Connects to WiFi and controls the status of
your valve.
B. Water Ball Valve: Lead-free ball valve. (Can be installed in
any orientation.)
C. Power Supply: 3 m/10 ft power adapter used to power your
L5 Actuator.
D. Metal Clip: Connects the actuator with the water ball valve.
E. Leak Detection Cable: This 1.5 m/5 ft add-on rope sensor
can be connected to the L5 actuator and can be linked with
multiple rope sensors to extend the detection area.

OVERVIEW

Auto Shutoff Through Water Leak & Freeze Sensor: When
paired with Resideo's WiFi Leak Detector(s), L5 WiFi Water
Leak Shutoff Valve should be able to shut off your water line
C
F
A
M39195
automatically before the damage becomes catastrophic. One
L5 WiFi Water Leak Shutoff Valve can be paired up to 30
Resideo WiFi Leak Detectors.
Control the L5 WiFi Water Leak Shutoff Valve Remotely Via
the App: Whether you are on your way to the airport or at a
remote location, control the valve's on or off status wherever
you are.
Manual Override to Turn On or Off Water: When needed, the
Valve can be turned on or off by using the emergency handle
on the L5 Actuator. We recommend this handle be used only
in emergencies. For normal manual override, short press the
power button to open or close the valve.
Easy Install: Standard ball valve makes it easy for a licensed
plumber to install.
Manual Override:
• Mechanical valve override (for emergency
usage)
• Note: Using the emergency handle won't
trigger LED status change, or valve status
change in the app
Button:
• Power button. It can also open/close valve,
initiate Bluetooth signal broadcasting and
factory reset
• Short press (1s): Power on/off & open/close
valve
• Long press (>5s): Initiate Bluetooth signal
broadcasting
• Extra long press (>15s): Factory reset
LED:
• Connectivity LED and valve status LED
Power input port:
⎓
• 15 V
M38761
Auxiliary Input:
• Water sensing rope/plug
Actuator Output:
• Up to 6 Nm torque, <10 seconds runtime, 90
degree
Valve Interface:
• ISO flange valve interface
Fig. 2. Components.
QUICK START GUIDE
power input
