Page 1: Table Of Contents

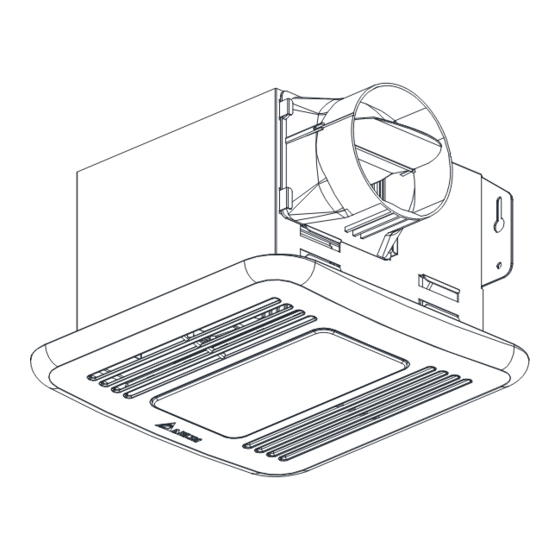

VENTILATION FAN / LED LIGHT MODEL ITG50LED/ITG80LED TABLE OF CONTENTS Package Contents General Safety Information Preparation Assembly Instructions New Construction Existing Construction Grille Installation Operation Care and Maintenance Troubleshooting Dimensions Warranty READ AND SAVE THESE INSTRUCTIONS Address: 46101 Fremont Boulevard, Fremont, CA 94538 US Toll Free Number: 1-888-979-9889 www.deltabreez.com... -
Page 2: Package Contents
PACKAGE CONTENTS PART DESCRIPTION ❶ Fan Body ❷ Grille ❸ Duct Connector... -
Page 3: General Safety Information
GENERAL SAFETY INFORMATION READ AND SAVE THESE INSTRUCTIONS 7. If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application and be GENERAL SAFETY INFORMATION connected to a GFCI (Ground Fault Circuit lnterrupter) – 1. -
Page 4: Preparation
Use a roof cap or wall cap that has a built-in damper improvement or hardware store. to reduce backdrafts. External timer/dimmer switch can be used please DIMENSION REQUIREMENTS contact Delta Breez customer service and consult with a licensed electrician for compatibility. Ceiling Ceiling Ceiling... -
Page 5: Assembly Instructions
ASSEMBLY INSTRUCTIONS NEW CONSTRUCTION Turn off power source. Review all safety precautions. 1. Attach the Duct Connector ❸ to the Fan Body ❶ 2. Remove the wiring box cover from the Fan Body ❶ . Remove the wiring knockout from the wiring box 3. -
Page 6: Existing Construction
ASSEMBLY INSTRUCTIONS 6. Install a circular 4 in. duct (not included) and secure it with duct tape or clamps (neither included). Finish 4 in. Duct ceiling work. The ceiling hole should be aligned with the edge of the Fan Body ❶ . Duct tape Ceiling or clamp... - Page 7 ASSEMBLY INSTRUCTIONS 5. Remove the wiring box cover from the Fan Body ❶ . Remove the wiring knockout from the wiring box 6. Remove the three screws that hold the fan motor assembly in place. Remove the fan motor assembly from the Fan Body ❶...
-
Page 8: Grille Installation
GRILLE INSTALLATION Insert the LED light connector into the fan body. Pinch the mounting springs on the Grille ❷ , and insert them into the narrow rectangular slots inside the fan. Push the Grille ❷ up toward the ceiling. installation. FAN / LED LIGHT OPERATION Operation Fan mode: Turn the Fan switch to operate ON/OFF of... -
Page 9: Care And Maintenance
CARE AND MAINTENANCE See safety information before proceeding. Routine maintenance should be done at least once a year. • Never use solvents, thinner or harsh chemicals when cleaning the fan. • Do not allow water to enter the motor. • Do not immerse metal parts in water. •... -
Page 10: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION The fan is not turning on 1. Power off 1. Make sure power supply is on. 2. Faulty switch 2. Test or replace switch. 3. Faulty wire connection 3. Check wire in switch box. The fan seems louder 1. -
Page 11: Dimensions
PRODUCT SPECIFICATIONS SPECIFICATIONS Frequency Air Flow Fan Power LED light Max Current Weight Model No. Voltage (V) Note (Amps) (lb.) (Hz) @0.1”(CFM) @0.1”SP(W) spec. 13.0 atts, Single ITG50LED 0.22 850Lumens, Speed 2700K 13.0 atts, Single 850Lumens, ITG80LED 11.3 0.28 Speed 2700K... -
Page 12: Warranty
WARRANTY DELTA ELECTRONICS THREE YEAR LIMITED WARRANTY Delta Electronics Inc. (“Delta Electronics”) warrants to the original consumer purchaser in the USA that the Breez ventilation fan products will be free from defects in material or workmanship. This warranty is limited to three (3) years from the original date of purchase.
