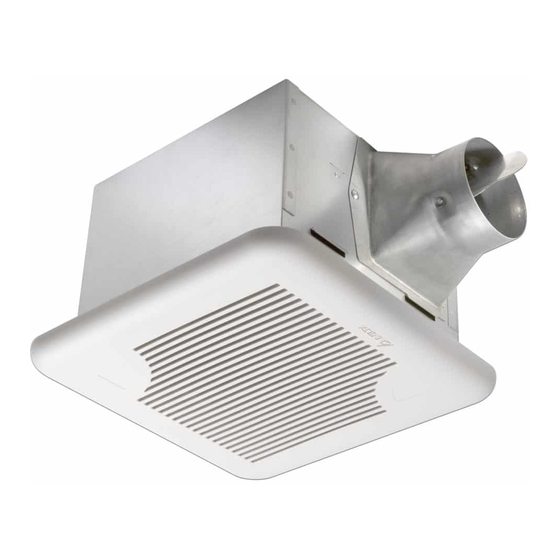

VENTILATION FAN
MODEL SIG80 / SIG80M / SIG80D / SIG110 / SIG110H / SIG110D
TABLE OF CONTENTS
Warranty
2
3
4
5
6
10
10
11
12
13
13
14
V01
Advertisement
Table of Contents
Related Manuals for DELTA BREEZ SIG110
Summary of Contents for DELTA BREEZ SIG110
-
Page 1: Table Of Contents
VENTILATION FAN MODEL SIG80 / SIG80M / SIG80D / SIG110 / SIG110H / SIG110D TABLE OF CONTENTS Package Contents General Safety Information Preparation and Wiring Diagrams Assembly Instructions - New Construction Assembly Instructions - Existing Construction Grille Installation Operation Care and Maintenance... -
Page 2: Package Contents
Suspension bracket Ⅰ 13”(318.5mm) ❹ Suspension bracket Ⅱ 13”(318.5mm) ❺ Duct Connector HARDWARE CONTENTS (Images are to scale) Long Wood Screw ( ∅ 4 x 25mm) Short screw (#8-32x1/4”) Duct Screw (M4x12mm) Model: SIG80 / SIG80M /SIG80D/ SIG110 / SIG110H / SIG110D... -
Page 3: General Safety Information
5. When cutting or drilling into the wall or ceiling, do not Cooking damage electrical wiring and other hidden utilities. floor Equipment 6. Ducted ventilating fans must always be vented to the Fig. B outdoors. Model: SIG80 / SIG80M /SIG80D/ SIG110 / SIG110H / SIG110D... -
Page 4: Preparation And Wiring Diagrams
(bare) SWITCH BOX (bare) (purchase separately) ON/OFF SWITCH SWITCH BOX (purchase separately) WIRING WIRING POWER PLATE POWER MODE PLATE SWITCH SWITCH SWITCH 120 VAC 120 VAC LINE IN LINE IN Model: SIG80 / SIG80M /SIG80D/ SIG110 / SIG110H / SIG110D... -
Page 5: Assembly Instructions - New Construction
Suspension Suspension Bracket II suspension brackets to the fan body ❶ by using the ❹ Bracket I Suspension Bracket II short screws (provided). Hardware Suspension Bracket II Short screw Model: SIG80 / SIG80M /SIG80D/ SIG110 / SIG110H / SIG110D... -
Page 6: Assembly Instructions - Existing Construction
Mask protects unit during construction. Remove before installing Grille. EXISTING CONSTRUCTION – ACCESSIBLE FROM ABOVE BEFORE INSTALLATION Turn off power source. Review all safety precautions. 1. Remove existing fan. Model: SIG80 / SIG80M /SIG80D/ SIG110 / SIG110H / SIG110D... - Page 7 Wood support not crumble and give way. Put screws in both ends of wood beyond the 10.25 in. hole. Keep screws in range of grille. Model: SIG80 / SIG80M /SIG80D/ SIG110 / SIG110H / SIG110D...
- Page 8 (M4X12). Duct screw(M4X12) Hardware from Parts Bag Duct Screw Pull existing ductwork into Housing Insert tab into slot in Housing 9. Insert fan unit and secure by 3 screws. Model: SIG80 / SIG80M /SIG80D/ SIG110 / SIG110H / SIG110D...
- Page 9 3. Connect a 4 in. circular duct a (not supplied) and vent to the outside. Secure it with duct tape joist (not supplied) or clamp (not supplied) to make the connection secure and air tight. joist Model: SIG80 / SIG80M /SIG80D/ SIG110 / SIG110H / SIG110D...
-
Page 10: Grille Installation
90°. (Room will be green. temperature is 25°C) 90° Factory setting: low speed airflow 30CFM, time delay Factory setting: low speed airflow 30CFM, time delay 15 minutes. 15 minutes. Model: SIG80 / SIG80M /SIG80D/ SIG110 / SIG110H / SIG110D... -
Page 11: Care And Maintenance
4. Dampen cloth with dust detergent and wipe the fan body ❶ . Then wipe dry with a clean cloth. 5. Replace grille ❷ back onto fan body ❶ . 6. Turn on power source to operate fan again. Model: SIG80 / SIG80M /SIG80D/ SIG110 / SIG110H / SIG110D... -
Page 12: Troubleshooting
The fan is not able to draw air out of the room without enough airflow to draw in from. 2. Insufficient CFM 2. Be sure the CFM rating on the fan matches the requirements for your room size. Model: SIG80 / SIG80M /SIG80D/ SIG110 / SIG110H / SIG110D... -
Page 13: Dimensions
Motion Sensor SIG80D 0.30 Dual Speed SIG110 13.6 0.38 Single Speed SIG110H 13.6 0.38 Humidity Sensor SIG110D 13.6 0.38 Dual Speed Note: Design and specifications subject to change without notice. Model: SIG80 / SIG80M /SIG80D/ SIG110 / SIG110H / SIG110D...
