DELTA BREEZ 80RLED-ADJ Manual

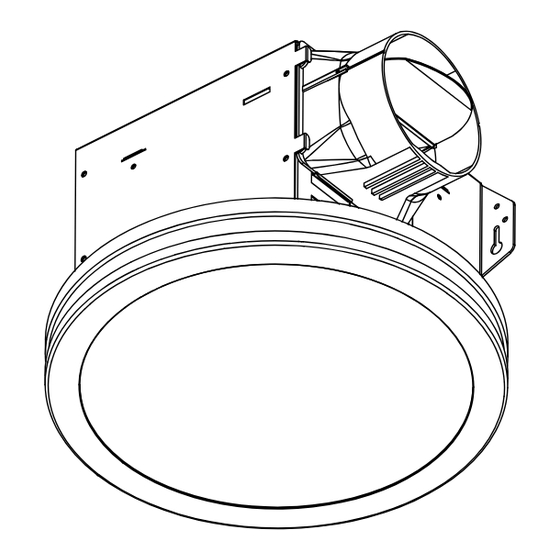

Ventilation fan / led light
Hide thumbs Also See for 80RLED-ADJ:

Advertisement

Table of Contents

VENTILATION FAN / LED LIGHT
READ AND SAVE THESE INSTRUCTIONS
Address: 46101 Fremont Boulevard, Fremont, CA 94538
US Toll Free Number:
1-888-979-9889 - Technical Support
1-877-685-4384 - Customer Sales Support
www.deltabreez.com
MODELS 80RLED-ADJ / ITG80RLED

TABLE OF CONTENTS

2
3
4
5
6
8
9
10
11
11
12
MFG Model
VFB080B4RLED1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 80RLED-ADJ and is the answer not in the manual?

Questions and answers

Marty Hochstetler
February 25, 2025

does the 80LED-ADJ operate on 110 VAC or does it need a DC supply

0
1 comments:
Mr. Anderson
February 25, 2025

The DELTA BREEZ 80RLED-ADJ operates on an AC power supply of 120V, 60Hz.

This answer is automatically generated

0

Related Manuals for DELTA BREEZ 80RLED-ADJ

Summary of Contents for DELTA BREEZ 80RLED-ADJ

  • Page 1: Table Of Contents

    VENTILATION FAN / LED LIGHT MODELS 80RLED-ADJ / ITG80RLED TABLE OF CONTENTS Package Contents General Safety Information Preparation and Wiring Diagrams Assembly Instructions - New Construction Assembly Instructions - Existing Construction Grille Installation Care and Maintenance Troubleshooting Dimensions Product Specifications...

  • Page 2: Package Contents

    PACKAGE CONTENTS PART DESCRIPTION Fan Body Grille Duct Connector...

  • Page 3: General Safety Information

    GENERAL SAFETY INFORMATION READ AND SAVE THESE INSTRUCTIONS 7. If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application GENERAL SAFETY INFORMATION and be connected to a GFCI (Ground Fault Circuit 1.

  • Page 4: Preparation And Wiring Diagrams

    Use a roof cap or wall cap that has a built-in damper to reduce backdrafts. External timer/dimmer switch can be used. Please contact Delta Breez customer service and consult with a licensed electrician for compatibility. WIRING DIAGRAM BLACK...

  • Page 5: Assembly Instructions - New Construction

    ASSEMBLY INSTRUCTIONS NEW CONSTRUCTION BEFORE INSTALLATION Turn off power source. Review all safety precautions. 1. Attach the Duct Connector to the Fan Body 2. Remove the wiring box cover from the Fan Body . Remove the wiring knockout from the wiring box cover with a flathead screwdriver (not included).

  • Page 6: Assembly Instructions - Existing Construction

    ASSEMBLY INSTRUCTIONS 5. Remove the fan junction box cover. Using wire wire nut nut(not supplied), connect house wires to fan (not included) House wires as shown in the wiring diagram on page Product wires 4. 14AWG is the smallest conductor that shall wires be used for branch circuit wiring.
  • Page 7 ASSEMBLY INSTRUCTIONS 3. If this fan is not replacing an old fan, be sure to cut a 7 1/2in. x 7 1/4in. opening for the Fan Body Make sure the 7 1/4 inch side of opening is flush with the joist for installation from below. 4.

  • Page 8: Grille Installation

    GRILLE INSTALLATION For the LED light connection, plug in the connector from the grille into the fan housing as shown. Pinch the mounting springs on the Grille , and insert them into the narrow rectangular slots inside the fan. Push the Grille up toward the ceiling.

  • Page 9: Care And Maintenance

    CARE AND MAINTENANCE See safety information before proceeding. Routine maintenance should be done at least once a year. • Never use solvents, thinner or harsh chemicals when cleaning the fan. • Do not allow water to enter the motor. • Do not immerse metal parts in water. •...

  • Page 10: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION The fan is not turning on 1. Power off 1. Make sure power supply is on. 2. Faulty switch 2. Test or replace switch. 3. Faulty wire connection 3. Check wire in switch box. The fan seems louder 1.

  • Page 11: Dimensions

    Air Flow @ 0.1"SP Power @ 0.1"SP Max Current Weight Model No. Note Light Spec (Hz) (CFM) (Amps) (lb.) 13W LED, 80RLED-ADJ/ 1000 Lumens, Single ITG80RLED/ 11.5 0.28 2700K Speed VFB080B4RLED1 4000K 5000K Note: Design and specifications subject to change without notice.

  • Page 12: Warranty

    WARRANTY DELTA ELECTRONICS THREE YEAR LIMITED WARRANTY Delta Electronics Inc. (“Delta Electronics”) warrants to the original consumer purchaser in the USA that the Breez ventilation fan products will be free from defects in material or workmanship. This warranty is limited to three (3) years from the original date of purchase.
