DELTA BREEZ 80LED-REC Instructions Manual

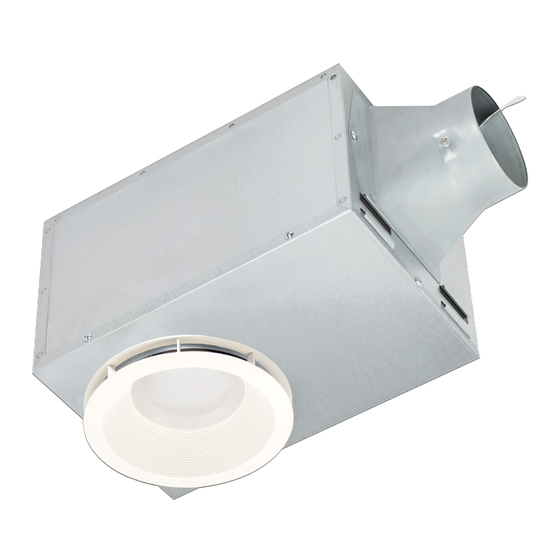

Ventilation fan / led light
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
VENTILATION FAN / LED LIGHT
READ AND SAVE THESE INSTRUCTIONS
Address: 46101 Fremont Boulevard, Fremont, CA 94538
US Toll Free Number:
1-888-979-9889 - Technical Support
1-877-685-4384 - Customer Sales Support
www.deltabreez.com
MODELS 80LED-REC / VFB080F4LED1

TABLE OF CONTENTS

2
3
4
5
6
9
10
10
11
11
12
MFG Model
VFB080F4LED1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 80LED-REC and is the answer not in the manual?

Questions and answers

Related Manuals for DELTA BREEZ 80LED-REC

Summary of Contents for DELTA BREEZ 80LED-REC

  • Page 1: Table Of Contents

    VENTILATION FAN / LED LIGHT MODELS 80LED-REC / VFB080F4LED1 TABLE OF CONTENTS Package Contents General Safety Information Preparation Wiring Diagram Assembly Instructions Care and Maintenance Troubleshooting Product Specifications Dimensions Product Exploded Drawing Warranty READ AND SAVE THESE INSTRUCTIONS Address: 46101 Fremont Boulevard, Fremont, CA 94538 US Toll Free Number: 1-888-979-9889 –...

  • Page 2: Package Contents

    PACKAGE CONTENTS PART DESCRIPTION ❶ Fan Body ❷ LED Module ❸ Suspension bracket Ⅰ 13”(318.5mm) ❹ Suspension bracket Ⅱ 13”(318.5mm) HARDWARE CONTENTS (Images are to scale) Long Wood Screw ( ∅ 4 x 25mm) Short Screw (#8-32x1/4”)

  • Page 3: General Safety Information

    GENERAL SAFETY INFORMATION READ AND SAVE THESE INSTRUCTIONS 7. If this unit is to be installed over a tub or shower, it must GENERAL SAFETY INFORMATION be marked as appropriate for the application and be connected to a GFCI (Ground Fault Circuit lnterrupter) – 1.

  • Page 4: Preparation

    PREPARATION Tools Required for Assembly (not included): Hammer, Roof cap Flathead Screwdriver, Wire Nuts, Nails, Duct Tape, (with built-in damper) Phillips Head Screwdriver, Utility Knife Short piece of flexible duct helps alignment and absorbs sound Helpful Tools (not included): Electric Drill, Drill Bits WARNING: Turn off electricity at breaker box Fan housing before beginning installation.

  • Page 5: Wiring Diagram

    WIRING DIAGRAM Single Switch Control - With a single switch, all three features can be Single Switch Control - With a single switch, all three features can be Single Switch Control - With a single switch, the fan and light can be turned on and off simultaneously. turned on and off simultaneously.

  • Page 6: Assembly Instructions

    ASSEMBLY INSTRUCTIONS 1. For joist spacing 16 in. - 24in., insert suspension bracket I ❷ and suspension bracket II ❸ into the Suspension Bracket I bracket cover on the duct connector side and the Fan Body back of the fan body ❶ Hardware Suspension Bracket II...
  • Page 7 ASSEMBLY INSTRUCTIONS Install the suspension brackets to the joists Joist with long wood screws, and secure the suspension ❶ brackets to the fan body by using the short screws (provided). Joist Fan Body Wire nut 4. Remove the fan junction box cover .
  • Page 8 ASSEMBLY INSTRUCTIONS 7. Insert the LED light connector into the fan body. 2-Slots LED light connector 2-Springs LED module 8. Attach LED module ❷ by pinching mounting springs Rectangular slot and insert into the narrow rectangular slots in fan body. Springs...

  • Page 9: Care And Maintenance

    CARE AND MAINTENANCE See safety information before proceeding. Routine maintenance should be done at least once a year. • Never use solvents, thinner or harsh chemicals when cleaning the fan. • Do not allow water to enter the motor. • Do not immerse metal parts in water. •...

  • Page 10: Troubleshooting

    3. Check wire in switch box. PRODUCT SPECIFICATIONS SPECIFICATIONS Max. Air Flow Voltage Frequency Power @ Weight Model No. @ 0.1”S Current Note LED light spec (Hz) 0.1”S (W) (lb.) (CFM) (amps) Single LED Light: 13W 80LED-REC/ 14.5 0.34 Speed VFB080F4LED1 850Lumens, 3000K...

  • Page 11: Dimensions

    DIMENSIONS 6 1/2 7 1/2 (161.6)Dia. (12.0) (190.0) Unit: Inches(mm) 12 3/4 (100.0) (324.9) PRODUCT EXPLODED DRAWING PART DESCRIPTION Duct connector Suspension bracket Fan motor LED module Junction box Junction box cover Power unit...

  • Page 12: Warranty

    WARRANTY DELTA ELECTRONICS THREE YEAR LIMITED WARRANTY Delta Electronics Inc. (“Delta Electronics”) warrants to the original consumer purchaser in the USA that the Breez ventilation fan products will be free from defects in material or workmanship. This warranty is limited to three (3) years from the original date of purchase.
