VENTILATION FAN / LED LIGHT
READ AND SAVE THESE INSTRUCTIONS
Address: 46101 Fremont Boulevard, Fremont, CA 94538
US Toll Free Number:
1-888-979-9889 - Technical Support
1-877-685-4384 - Customer Sales Support
www.deltabreez.com
MODEL SIG80-110ELED

TABLE OF CONTENTS

2
3
4
4
5
7
12
12
13
14
14
15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SIG80-110ELED and is the answer not in the manual?

Questions and answers

Related Manuals for DELTA BREEZ SIG80-110ELED

Summary of Contents for DELTA BREEZ SIG80-110ELED

  • Page 1: Table Of Contents

    VENTILATION FAN / LED LIGHT MODEL SIG80-110ELED TABLE OF CONTENTS Package Contents General Safety Information Preparation Wiring Diagram New Construction Assembly Instructions Existing Construction Assembly Instructions Care and Maintenance Operation Troubleshooting Dimensions Product Specifications Warranty READ AND SAVE THESE INSTRUCTIONS...

  • Page 2: Package Contents

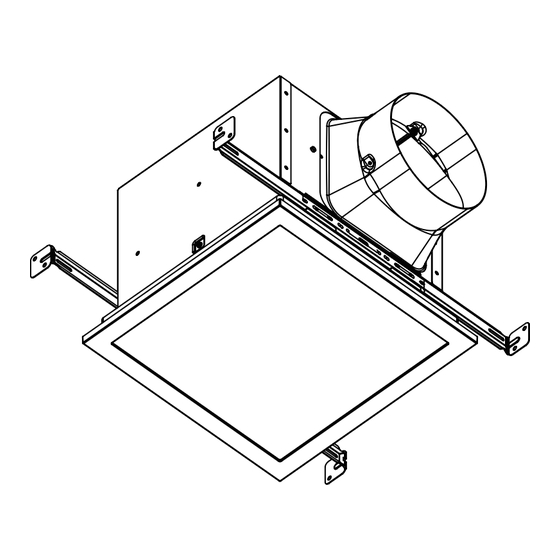

    PACKAGE CONTENTS PART DESCRIPTION Fan housing LED light panel Duct adapter (optional) Suspension bracket HARDWARE CONTENTS (Images are to scale) × 8 Long Wood Screw ( ø 4 x 25mm ) × 4 Short Machine Screw ( #8-32x1/4” ) 6 in. to 4 in.

  • Page 3: General Safety Information

    GENERAL SAFETY INFORMATION READ AND SAVE THESE INSTRUCTIONS 7. If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application GENERAL SAFETY INFORMATION and be connected to a GFCI (Ground Fault Circuit 1.

  • Page 4: Preparation

    Ceiling Opening Ceiling Opening Ceiling Opening External timer/dimmer switch can be used. Please contact Delta Breez customer service and consult 10 1/4 in. 10 1/4 in. 7 7/8 in. with a licensed electrician for compatibility. WIRING DIAGRAM...

  • Page 5: New Construction Assembly Instructions

    NEW CONSTRUCTION ASSEMBLY INSTRUCTIONS BEFORE INSTALLATION Turn off power source. Review all safety precautions. 1. ATTACHING TO THE JOIST For joist spacing 16 in. - 24 in., insert two suspension brackets (D) into the bracket covers on each side of the fan housing (A) as shown (1.1 and 1.2).
  • Page 6 NEW CONSTRUCTION ASSEMBLY INSTRUCTIONS 4. Connect a 6 in. circular duct (4.1) (not supplied) and vent to the outside. Secure it with duct tap (not included) or clamp (not included) to make the connection secure and air tight. Note: If available ducting is 4 inches in diameter, the Joist optional duct adapter (C) can be used to reduce the 6 in.

  • Page 7: Existing Construction Assembly Instructions

    EXISTING CONSTRUCTION ASSEMBLY INSTRUCTIONS INSTALLATION FROM BELOW - NO NEED FOR SUSPENSION BRACKETS (NO ATTIC ACCESS) BEFORE INSTALLATION Turn off power source. Review all safety precautions. 1. Measure the opening to ensure it is large enough to accommodate the new fan housing (A) (10 1/4 in. x 10 1/4 in.).
  • Page 8 EXISTING CONSTRUCTION ASSEMBLY INSTRUCTIONS 4. Remove the fan junction box cover (4.1). Using wire nuts (not supplied), connect the house wires to the fan wires (4.2) as shown in the wiring diagram on page 4. 14 AWG is the smallest conductor that should be used for branch-circuit wiring.
  • Page 9 EXISTING CONSTRUCTION ASSEMBLY INSTRUCTIONS 7. Reinsert fan motor (7.1) into the fan housing (A). Secure with the screws that were removed in step 2. 8. Insert the LED connector (8.1) on the LED light panel (B) into the fan housing (A). 9.
  • Page 10 EXISTING CONSTRUCTION ASSEMBLY INSTRUCTIONS INSTALL FROM ABOVE WITH SUSPENSION BRACKETS (ATTIC ACCESSIBLE) ONLY IF UNABLE TO ATTACH DIRECTLY TO JOIST(S) Turn off power source. Review all safety precautions. Remove old fan. 1. Measure the opening to ensure it is large enough to accommodate the new fan housing (A) (10 1/4 in.
  • Page 11 EXISTING CONSTRUCTION ASSEMBLY INSTRUCTIONS 4. Remove the fan junction box cover (4.1). Using wire nuts (not supplied), connect the house wires (4.2) to the fan wires (4.3) as shown in the wiring diagram on page 4. 14 AWG is the smallest conductor that can be used for branch-circuit wiring.

  • Page 12: Care And Maintenance

    EXISTING CONSTRUCTION ASSEMBLY INSTRUCTIONS 7. Attach LED light panel (B) by pinching the mounting springs (7.1) and inserting them into the narrow rectangular slots (7.2) on both sides of the fan housing (A). Using the switch on the back of grille, choose the color temperature you want for your LED.

  • Page 13: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION The fan is not turning on 1. Power off 1. Make sure power supply is on. 2. Faulty switch 2. Test or replace switch. 3. Faulty wire connection 3. Check wire in switch box. The fan seems louder 1.

  • Page 14: Dimensions

    PRODUCT SPECIFICATIONS Voltage Frequency Air Flow @ 0.1"SP Power @ 0.1"SP Max Current Weight Model No. Light Spec (Hz) (CFM) (Amps) (lb.) 13W LED, 1000 Lumens, SIG80-110ELED 0.48 10.1 2700K 4000K 5000K Note: Design and specifications subject to change without notice.

  • Page 15: Warranty

    WARRANTY DELTA ELECTRONICS THREE YEAR LIMITED WARRANTY Delta Electronics Inc. (“Delta Electronics”) warrants to the original consumer purchaser in the USA that the Breez ventilation fan products will be free from defects in material or workmanship. This warranty is limited to three (3) years from the original date of purchase.
