VENTILATION FAN MODEL Pro200/Pro300 TABLE OF CONTENTS Package Contents General Safety Information Preparation and Wiring Diagrams Assembly Instructions Grille Installation Operation Care and Maintenance Troubleshooting Dimensions Warranty READ AND SAVE THESE INSTRUCTIONS Address: 46101 Fremont Boulevard, Fremont, CA 94538 US Toll Free Number: 1-888-979-9889 www.deltabreez.com... -
Page 2: Package Contents

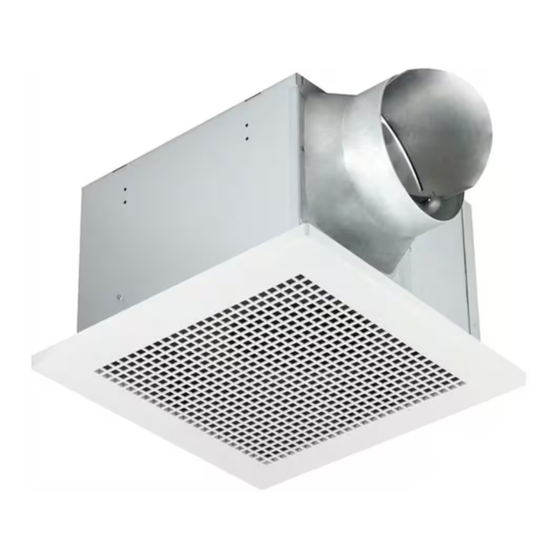

PACKAGE CONTENTS Part Appearance Quantity Fan body Grille Duct connector (6’’) HARDWARE CONTENTS (Images are to scale) Long Wood Screw ( ∅4 x 25) ( ∅4 x 10) Tapping Screw Machine Screw ( M 4 x 6) Suspension Bracket Rubber Model: Pro200/ Pro300... -
Page 3: General Safety Information
GENERAL SAFETY INFORMATION be marked as appropriate for the application and be READ AND SAVE THESE INSTRUCTIONS connected to a GFCI (Ground Fault Circuit Interrupter) – GENERAL SAFETY INFORMATION protected branch circuit. 1. Make sure that the electric service supply voltage is AC Do not use this unit with any other solid-state control 120V, 60Hz. -
Page 4: Preparation And Wiring Diagrams
PERPARATION AND WIRING DIAGRAMS Proper insulation around the fan to minimize building Roof cap (with built-in heat loss and gain. The ducting from this fan to the damper) Short piece of flexible outside of the building has a strong effect on the air duct helps alignment and absorbs sound... -
Page 5: Assembly Instructions
ASSEMBLY INSTRUCTIONS BEFORE INSTALLATION Machine screw Turn off power source. Review all safety precautions. (M4 x 6) ATTACH DUCT CONNECTOR 1.Attach the duct connector from outside, and secure it to fan body by using machine screw (M4x6) . Hardware Screw (M4x6) Machine MOUNT HOUSING WITH SUSPENSION BRACKETS Tapping screw... -
Page 6: Grille Installation
GRILLE INSTALLATION Insert the mounting springs into the slots and mount the grille to the fan body. Slots OPERATION Turn the power switch on , the LED indicator will be green. Model: Pro200/ Pro300... -
Page 7: Care And Maintenance
CARE AND MAINTENANCE TALLATION TURN OFF POWER SOURCE. REVIEW ALL SAFETY PRECAUTION See safety information before proceeding. Routine maintenance should be done at least once a year. • Never use solvents, thinner or harsh chemicals when cleaning the fan. • Do not allow water to enter the motor. •... -
Page 8: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION The fan is not turning on 1. Power off 1. Make sure power supply is on. 2. Faulty switch 2. Test or replace switch. 3. Faulty wire connection 3. Check wire in switch box. The fan seems louder 1. -
Page 9: Dimensions
DIMENSIONS 6 " " PRODUCT SPECIFICATIONS SPECIFICATIONS Voltage Frequency Power @ Max.Current Air Flow @ Model No. Weight (lb.) (Hz) 0.1”SP (W) 0.1”SP (CFM) (amps) Pro200 17.5 12.6 0.52 Pro300 41.0 12.6 0.72 Model:Pro200/ Pro300... -
Page 10: Warranty
WARRANTY DELTA ELECTRONICS THREE YEAR LIMITED WARRANTY Delta Electronics Inc. (“Delta Electronics”) warrants to the original consumer purchaser in the USA and Canada that the Breez ventilation fan products will be free from defects in material or workmanship. This warranty is limited to three (3) years from the original date of purchase.
