Omron ZX-LDA41-N 2M Manual

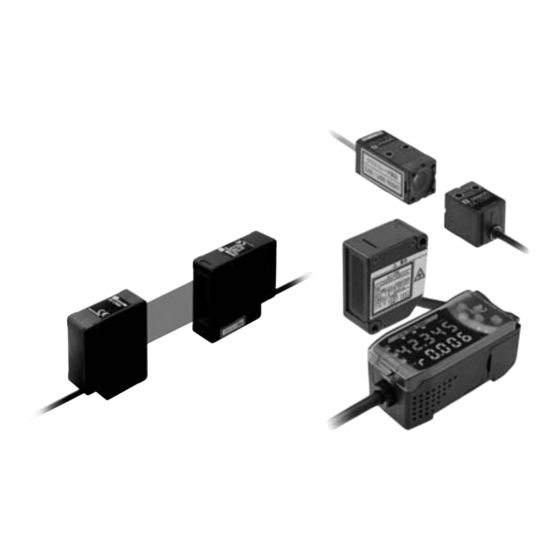

Smart Sensors (Laser Type)
ZX Series (ZX-L-N)
Ordering Information
■ Sensors
Sensor Heads (Reflective)
Optical system
Diffuse reflective Spot beam
Line beam
Regular reflective Spot beam
Line beam
*1. For an average count of 4,096.
Sensor Heads (Through-beam)
Optical system
Through-beam 1-mm dia.
1 to 2.5-mm dia.
5 mm
10 mm
30 mm
*1. For an average count of 64.
*2. The cable length for all models is 0.5 m.
Amplifier Units
Appearance
Note: Compatible connection with the Sensor Head.
Beam shape Sensing distance
40±10 mm
100±40 mm
300±200 mm
40±10 mm
100±40 mm
300±200 mm
30±2 mm
Measuring width Sensing distance
0 to 500 mm
500 to 2000 mm
0 to 500 mm
Power supply
DC
ZX Series (ZX-L-N)
For the most recent information on models that have been certified for
safety standards, refer to your OMRON website.
Resolution*1
2 μm
16 μm
300 μm
2 μm
16 μm
300 μm
0.25 μm
Resolution*1
4 μm
---
4 μm
12 μm
Output type
NPN
PNP
Smart Sensors (Laser Type)
Model
ZX-LD40
ZX-LD100
ZX-LD300
ZX-LD40L
ZX-LD100L
ZX-LD300L
ZX-LD30V
ZX-LD30VL
Model *2
ZX-LT001
ZX-LT005
ZX-LT010
ZX-LT030 0.5M
Model
ZX-LDA11-N 2M
ZX-LDA41-N 2M
.
1
