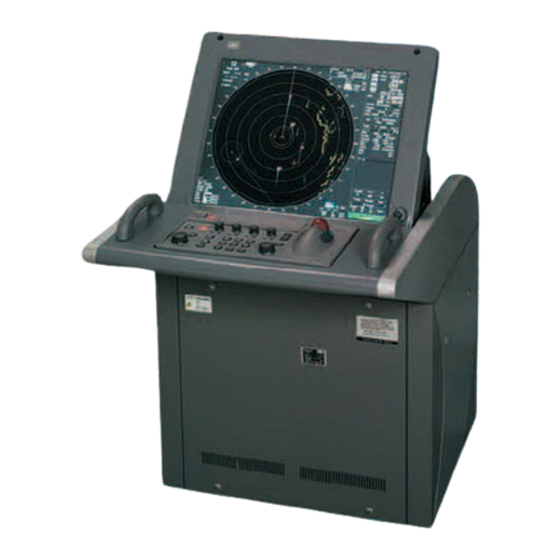

Jma-9100 series arpa radar 23” high visibility lcd screen constaview digital signal processing tef multi-level target enhancement high speed version available wide dynamic range receiver
Jma-900b series chart radar system, 23−inch high visibility display constaview digital signal processing tef multi-level target enhancement built-in high performance ecdis mode for backup advanced lan interfacing (8 pages)
Page 1
10.000 GT. and fully meets MSC 192(79) radar performance standards eff ective from 1 July 2008. – an all-new high-performance radar from JRC brings a new level of functionality to the bridge 23” high visibility LCD screen Constaview™ digital signal processing TEF™...
JMA-9100 series – performance features Unique features JRC’s new JMA-9100 ARPA radar series integrates the latest leading technologies and represents a signifi cant step change in terms of reliable performance and cost-eff ectiveness, making it one of the most advanced radar products available today.
Page 3
The JMA-9100 incorporates three Tornado™ processors, which are exclusively developed and designed by JRC, bringing a new level of performance and reliability to radar operation. The new Tornado™ processors, which equal the power of twelve conventional processors, and advanced system architecture make the JMA-9100 series probably the most sophisticated radar available today.
Page 4
JRC StarNetwork™ JRC has been providing sales and support of products since 1915. Today, JRC off ers comprehensive assistance through its organisation, in partnership with a worldwide StarNetwork™ of over 270 fully trained and qualifi ed partners and agents, assisting you 24 hours a day, 7 days a week and 365 days a year.
Page 5
What’s standard in the box? JRC sets the highest standards for performance and fl exibility. With our new JMA-9100 series, you have six key choices to select from, allowing you to ‘confi gure’ your favoured radar system – from unit type to cabling – making it more than ideal for your preferred installation approach.
Page 6
JMA-9100 series – dimensions and mass Dimension drawings - Stand alone version NCD-4990 MASS 130 kg 325 mm 200 mm 1145 mm 575 mm 700 mm 335 mm 515 mm Dimension drawings - Desktop version NWZ-170 MASS 25 kg 505 mm 485 mm 606 mm 463 mm...
Page 7
JMA-9100 series – dimensions and mass Dimension drawings - 10kW X-band scanner highspeed NKE-2103-6 NKE-2103-6HS MASS 40 kg MASS 40 kg Swing circle 1910 mm Swing circle 1910 mm 290 mm 290 mm 348 mm 348 mm Dimension drawings - 25kW X-band scanner highspeed NKE-1125-6 NKE-2254-6HS...
Page 8
JMA-9100 series – specifi cations Model JMA-9110-6XA JMA-9110-6XAH JMA-9122-6XA JMA-9122-9XA JMA-9122-6XAH JMA-9123-7XA JMA-9123-9XA JMA-9132-SA JMA-9133-SA IMO compliant Unit type 2-unit type 3-unit type 2-unit type 3-unit type Performance monitor NJU-85 NJU-84 Frequency X-band S-band Display colour raster scan PPI Scanners Model NKE-2103-6 NKE-2103-6HS...
