JMA-900B series

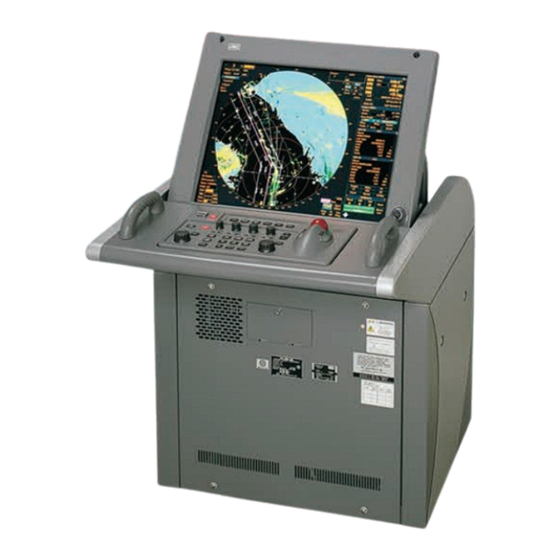

Chart radar system
Complies with IMO carriage requirements for vessels above
10.000 GT. and fully meets MSC 192(79) radar performance
standards effective from 1 July 2008 contained within IEC62388.
– the new chart radar combines the features of JRC's renowned radar systems with great chart graphics
23−inch high visibility display
Constaview™ digital signal processing
TEF™ multi-level target enhancement
Built-in high performance ECDIS mode for backup
Advanced LAN interfacing

Advertisement

loading

Summary of Contents for JRC JMA-900B

  • Page 1 10.000 GT. and fully meets MSC 192(79) radar performance standards effective from 1 July 2008 contained within IEC62388. – the new chart radar combines the features of JRC’s renowned radar systems with great chart graphics 23−inch high visibility display Constaview™ digital signal processing TEF™...
  • Page 2: Unique Features

    JMA-900B series – performance features Unique features The new JMA-900B chart radar combines JRC’s renowned radar and highly advanced ECDIS technology, providing reliable performance and significantly improves situation awareness. Constaview™ Constaview™ True Trails The second generation and patented Constaview™ refreshes the image every 16mS.
  • Page 3 Interswitching Optional interswitching to JMA-900B and JMA-9100 series radar. with optional I/S PCB JRC also produces special interswitch boxes that allow interswitching up to 8 (chart) radars. wa re n e s s...
  • Page 4 Signal processing info JRC StarNetwork™ JRC has been providing sales and support of products since 1915. Today, JRC offers comprehensive assistance through its organisation, in partnership with a worldwide StarNetwork™ of over 270 fully trained and qualified partners and agents, assisting you 24 hours a day, 7 days a week and 365 days a year.
  • Page 5 What’s standard in the box? JRC sets the highest standards for performance and flexibility. With our new JMA-900B series, you have a set of choices to select from, allowing you to ‘configure’ your favoured chart radar system. This makes it ideal for your preferred installation approach.
  • Page 6 JMA-900B series – dimensions and mass Dimension drawings - Stand alone version NCD-2096 MASS 150 325 mm 200 mm 1145 mm 575 mm 700 mm 335 mm 515 mm Dimension drawings - Display in desktop version NWZ-170-E MASS 25 23” 505 mm 485 mm 606 mm...
  • Page 7 JMA-900B series – dimensions and mass Dimension drawings - Transceivers for 3-unit types x-band s-band MASS 15 MASS 33 NTG-3225 NTG-3230 461 mm 615 mm 460 mm 227 mm 615 mm 365 mm Dimension drawings - 25kW X-band scanner MASS 55 MASS 60 NKE-1125-6 NKE-1125-9...
  • Page 8 JMA-900B series – specifications Model JMA-922B-6XA JMA-922B-9XA JMA-923B-7XA JMA-923B-9XA JMA-932B-SA JMA-933B-SA IMO compliant Unit type 2-unit type 3-unit type 2-unit type 3-unit type Performance monitor NJU-85 NJU-84 Frequency X-band S-band Display colour raster scan PPI Scanners Model NKE-1125-6 NKE-1125-9 NKE-1129-7 NKE-1129-9 NKE-1130 NKE-1139...
