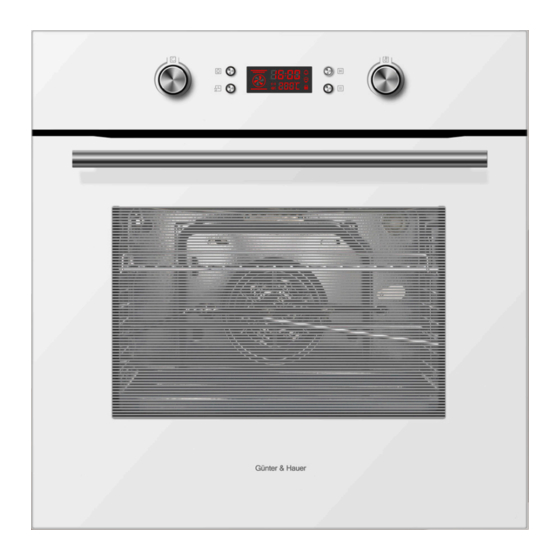

- Page 1 Instruction manual Built-in oven EOM 970W EOM 970BL...
-
Page 3: Table Of Contents
Content Warnings…..………………………………………4 Safety hints…………………………..………….7 Product description………………………….…...8 Operation instructions………..…..……………...9 Accessories…………………………….……….12 Installation……………………….……………..14 Removing the door from the oven…………….15 Cleaning & Maintenance………….…………...16... -
Page 4: Warnings
WARNING When the oven is first switched on, it may give off an unpleasant smell. This is due to the bonding agent used for the insulating panels within the oven. Please run up the new empty product with the conventional cooking function, 250 ℃, 90 minutes to clean oil impurities inside the cavity. - Page 5 supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. During use, the appliance becomes very hot. Care should be taken to avoid touching heating elements inside the oven.
- Page 6 If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
-
Page 7: Safety Hints
SAFETY HINTS Do not use the oven unless you are wearing something on your feet. Do not touch the oven with wet or damp hands or feet. For oven: Oven door should not be opened often during the cooking period. ... -
Page 8: Product Description
PRODUCT DESCRIPTION Start button Remind button Time button Stop button Function description Symbol Oven Lamp: Which enables the user to observe the progress of cooking without opening the door. Oven lamp will light for all cooking functions. except ECO function. Defrost: The circulation of air at room temperature enables quicker thawing of frozen food, (without the use of any heat). -
Page 9: Operation Instructions
OPERATION INSTRUCTIONS 1. Clock Setting After connecting the unit to the power, the symbols " 0:00 " will be visible on the display. 1> Press " ", the hour figures will flash. 2> Rotate " K2 " to adjust the hour figures, (time should be within 0--23). 3>... - Page 10 6. Reminder Function This function will help to remind you to start cooking in a certain time from 0:01 to 9:59. Only when oven in standby mode, the reminder can be set. Follow below to set the reminder: 1> Press reminder setting button " ";...
- Page 11 10. Reservation Function 1> To use reservation function, clock must be set in advance. Then, in the way of setting the clock, reserved time that oven starts to cook must be set (a> Press reservation setting button" "; b> Rotate " K2 " to set the hour time of reservation. Time should be within 0--23. c> Press reservation setting button "...
-
Page 12: Accessories
ACCESSORIES Meat probe : Before using, insert the probe into the center of the thickest portion of meat or into the inner thigh or breast of poultry, away from fat or bone. Place food in oven and connect the meat probe. Keep probe as far away from heat source as possible. - Page 13 SHELF PLACEMENT WARNING: To ensure the oven shelves operate safely, correct placement of the shelves between the side rail is imperative. Shelves and the pan only can be used between the first and fifth layers. The shelves should be used with the right direction, it will ensure that during careful removal of the shelf or tray, hot food items should not slide out.
-
Page 14: Installation
VENTILATING OPENINGS When cooking is finished or in pause state or in waiting state, if the oven's center temperature is over 75 degree, the cooling fan will continue working for 15 minutes. Or when the oven's center temperature becomes lower than 75 degree, the cooling fan will stop in advance. Ventilating openings CONNECTION OF THE OVEN INSTALLATION... -
Page 15: Removing The Door From The Oven
REMOVING THE DOOR FROM OVEN (OPTIONAL) Removable door allows full access to entire interior of the oven for easier and quicker maintenance. To remove the door, open the door to the maximum angle. Then pull the buckle at the door hinge backward. (Figure 1) Figure 1 Close the door to an angle approximately 15°. -
Page 16: Cleaning & Maintenance
Recipes for ECO mode Recipes Temperature (℃) Level Time (min) Pre-heat Potato Cheese 90-100 Gratin Cheese 100-150 Cake Meatloaf 110-130 CLEANING AND MAINTENANCE For the sake of a good appearance and reliability, keep the unit clean. The modern design of the unit facilitates maintenance to a minimum. - Page 18 Mühlenstrasse 8a, Berlin,14167, Germany www.gunter-hauer.eu e-mail: info@gunter-hauer.de...
