HIKVISION DS-2TD1217-3/P User Manual
  1. Manuals
  2. Brands
  3. HIKVISION Manuals
  4. Security Camera
  5. DS-2TD1217-3/P
  6. User manual

HIKVISION DS-2TD1217-3/P User Manual

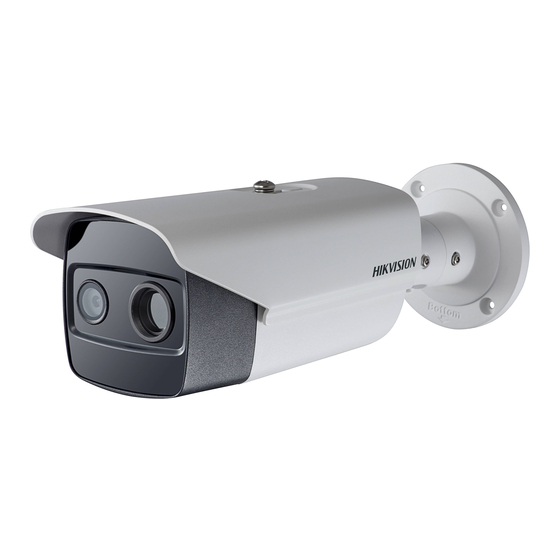

Thermal & optical bi-spectrum network camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Thermal & Optical Bi-spectrum Network
Camera
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-2TD1217-3/P and is the answer not in the manual?

Questions and answers

Related Manuals for HIKVISION DS-2TD1217-3/P

Summary of Contents for HIKVISION DS-2TD1217-3/P

  • Page 1 Thermal & Optical Bi-spectrum Network Camera User Manual...
  • Page 2 INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.
  • Page 3 Thermal & Optical Bi-spectrum Network Camera User Manual PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.
  • Page 4 Thermal & Optical Bi-spectrum Network Camera User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Danger Indicates a hazardous situation which, if not avoided, will or could result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, Caution could result in equipment damage, data loss, performance...
  • Page 5 Thermal & Optical Bi-spectrum Network Camera User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. Laws and Regulations ● Use of the product must be in strict compliance with the local electrical safety regulations. Transportation ●...
  • Page 6 Emergency ● If smoke, odor, or noise arises from the device, immediately turn off the power, unplug the power cable, and contact the service center. Manufacture Address No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China Hangzhou Hikvision Digital Technology Co.,Ltd...

  • Page 7: Table Of Contents

    Thermal & Optical Bi-spectrum Network Camera User Manual Contents Chapter 1 Overview........................1 1.1 Brief Description ........................1 1.2 Function ..........................1 Chapter 2 Device Activation and Accessing ................. 2 2.1 Activate the Device via SADP ....................2 2.2 Activate the Device via Browser ................... 2 2.3 Login ............................
  • Page 8 Thermal & Optical Bi-spectrum Network Camera User Manual 5.3.1 Calibrate Automatically ................... 16 5.3.2 Calibrate Manually ....................17 5.3.3 Verify the Calibration Result ..................18 5.4 Set Rules ..........................18 5.5 Advanced Configuration...................... 20 5.6 Set Global Size Filter ......................21 Chapter 6 Event and Alarm .......................
  • Page 9 Thermal & Optical Bi-spectrum Network Camera User Manual 8.1.6 Full Screen......................... 34 8.1.7 Light .......................... 34 8.1.8 Wiper ........................34 8.1.9 Lens Initialization ..................... 34 8.1.10 Auxiliary Focus......................34 8.1.11 Quick Set Live View ....................34 8.1.12 Lens Parameters Adjustment................. 35 8.2 Set Transmission Parameters .....................
  • Page 10 Thermal & Optical Bi-spectrum Network Camera User Manual 9.2.9 DNR ........................... 44 9.2.10 Defog ........................45 9.2.11 Set Palette ......................45 9.2.12 Set Target Color ...................... 45 9.2.13 DDE ......................... 45 9.2.14 Brightness Sudden Change ..................46 9.2.15 Enhance Regional Image ..................46 9.2.16 Mirror ........................
  • Page 11 Thermal & Optical Bi-spectrum Network Camera User Manual Chapter 11 Network Settings ....................56 11.1 TCP/IP ..........................56 11.1.1 Multicast Discovery ....................57 11.2 Port ............................ 57 11.3 Port Mapping ........................58 11.3.1 Set Auto Port Mapping ..................58 11.3.2 Set Manual Port Mapping ..................58 11.4 Multicast ..........................
  • Page 12 Thermal & Optical Bi-spectrum Network Camera User Manual 12.10 Set RS-232 ........................67 12.11 Set RS-485 ........................67 12.12 Set Same Unit ........................68 12.13 Security ..........................68 12.13.1 Authentication...................... 68 12.13.2 Security Audit Log ....................69 12.13.3 Set IP Address Filter ..................... 69 12.13.4 Set SSH ........................

  • Page 13: Chapter 1 Overview

    Thermal & Optical Bi-spectrum Network Camera User Manual Chapter 1 Overview 1.1 Brief Description Thermal & Optical Bi-spectrum network camera equipped with built-in GPU which supports intelligent perimeter protection algorithm, can realize high-precision VCA detection and real-time alarm. It is applied to perimeter protection and fire-prevention purposes in critical infrastructures such as community, villa, construction site, factory, 4S stores, and so on.

  • Page 14: Chapter 2 Device Activation And Accessing

    2.1 Activate the Device via SADP Search and activate the online devices via SADP software. Before You Start Access www.hikvision.com to get SADP software to install. Steps 1. Connect the device to network using the network cable. 2. Run SADP software to search the online devices.

  • Page 15: Login

    Thermal & Optical Bi-spectrum Network Camera User Manual Note The default IP address of the device is 192.168.1.64. You can set the IP address of the PC from 192.168.1.2 to 192.168.1.253 (except 192.168.1.64). For example, you can set the IP address of the PC to 192.168.1.100.
  • Page 16 Thermal & Optical Bi-spectrum Network Camera User Manual with the wrong password reach the set times, the device is locked. Go to Configuration → System → Security → Security Service, and enable Enable Illegal Login Lock, and set the illegal login attempts.

  • Page 17: Chapter 3 Temperature Measurement

    Thermal & Optical Bi-spectrum Network Camera User Manual Chapter 3 Temperature Measurement When you enable this function, the device measures the actual temperature of the scene. It alarms when temperature exceeds the temperature threshold value. 3.1 Notice This part introduces the notices of configuring temperature measurement function. ●...

  • Page 18: Thermography Configuration Flow Chart

    Thermal & Optical Bi-spectrum Network Camera User Manual 3.2 Thermography Configuration Flow Chart This part introduces the process of configuring temperature measurement. Figure 3-1 Thermography Configuration Flow Chart...

  • Page 19: Automatic Thermography

    Thermal & Optical Bi-spectrum Network Camera User Manual Note Please refer to the Quick Start Guide for detailed information of Installation part in the flow chart. 3.3 Automatic Thermography Configure the temperature measurement parameters and temperature measurement rules. The device can measure the actual temperature and output alarms when temperature exceeds the alarm threshold value.

  • Page 20: Set Normal Mode

    Thermal & Optical Bi-spectrum Network Camera User Manual ● Top Left: display the information on the top left of screen. Add Original Data on Capture Check to add data on alarm triggered capture of thermal channel. Add Original Data on Stream Check to add original data on thermal view.

  • Page 21: Set Expert Mode

    Thermal & Optical Bi-spectrum Network Camera User Manual Check Pre-Alarm Output and Alarm Output to link the pre-alarm or alarm with the connected alarm device. 5. Refer to Set Arming Schedule for setting scheduled time. Refer to Linkage Method Settings for setting linkage method.
  • Page 22 Thermal & Optical Bi-spectrum Network Camera User Manual Point Please refer to Point Thermographyfor detailed configuration. Line Please refer to Line Thermographyfor detailed configuration. Area Please refer to Area Thermographyfor detailed configuration. 3. Configure the temperature measurement parameters. Emissivity Set the emissivity of the target. The emissivity of the surface of a material is its effectiveness in emitting energy as thermal radiation.

  • Page 23: Point Thermography

    Thermal & Optical Bi-spectrum Network Camera User Manual 5. You can shield certain area from being detected. Refer to Set Shielded Region for detailed settings. 6. Click Save. Click Live View, and select thermal channel to view the temperature and rules information on live view.

  • Page 24: Manual Thermography

    Thermal & Optical Bi-spectrum Network Camera User Manual 2. Click 3. Drag the mouse in the live view to draw the area. You can drag the corners of the red rectangle area to change its shape and size. 4. Right click the mouse to stop drawing. 5.

  • Page 25: Chapter 4 Fire Source Detection

    Thermal & Optical Bi-spectrum Network Camera User Manual Chapter 4 Fire Source Detection The device will trigger and upload alarm when detect the fire source or smoking. Fire source detection includes fire source detection and smoking detection. It is applied to fire- prevention purposes in scenic region, forest, tunnel and so on.
  • Page 26 Thermal & Optical Bi-spectrum Network Camera User Manual Fire Source Detection Mode Smoking Mode Detect smoking behavior in the scene. Dynamic Fire Detect the fire source in the scene. Sensitivity The sensitivity of fire detection. The bigger the value is, more easily the fire source can be detected, and the false rate is higher.

  • Page 27: Chapter 5 Perimeter Protection

    Thermal & Optical Bi-spectrum Network Camera User Manual Chapter 5 Perimeter Protection The perimeter protection function is used to detect whether there is any target break the VCA rules. The optical camera will track the target or the device will alarm when the VCA rule is triggered.

  • Page 28: Set Vca Parameters

    Thermal & Optical Bi-spectrum Network Camera User Manual 5.2 Set VCA Parameters Steps 1. Go to Configuration → VCA → Basic Settings. Display VCA Info. on Stream Select to display target info and rule on stream, the information will be added to the video stream, and the overlay will be displayed if you get live view or play back by the VS Player.

  • Page 29: Calibrate Manually

    Thermal & Optical Bi-spectrum Network Camera User Manual 4. Click to start calibration. Caution ● The auto calibration starts when the person is totally seen in live view, and ends when the person is in the endpoint. ● The endpoint-to-camera distance (m) equals 4 times the lens focal length (mm). E.g, for 7mm lens, the recommended endpoint is 28m (7*4).

  • Page 30: Verify The Calibration Result

    Thermal & Optical Bi-spectrum Network Camera User Manual Caution ● Separate 4 vertical lines in the optical-axis direction at the close site, middle and far site respectively. ● Separate 4 vertical lines at the left, middle and right of the image respectively. ●...
  • Page 31 Thermal & Optical Bi-spectrum Network Camera User Manual If any target move across the setting line, the alarm will be triggered. You can set the crossing direction. Intrusion If any target intrude into the pre-defined region longer than the set duration, the alarm will be triggered.

  • Page 32: Advanced Configuration

    Thermal & Optical Bi-spectrum Network Camera User Manual The recommended size is 1.2 times of the target. ● Due to the main difference between human and animal is the height. Just concern the height of animal. ● Click to copy the same settings to other rules. 7.

  • Page 33: Set Global Size Filter

    Thermal & Optical Bi-spectrum Network Camera User Manual Scene Modes The scene mode is set to be General by default. Select Distant View when you are far from the targets. Select Indoor when you are indoor. Restore Parameters Restore Default Click Restore to restore the parameters to the default.

  • Page 34: Chapter 6 Event And Alarm

    Thermal & Optical Bi-spectrum Network Camera User Manual Chapter 6 Event and Alarm This part introduces the configuration of events. The device takes certain response to triggered alarm. 6.1 Set Motion Detection It helps to detect the moving objects in the detection region and trigger the linkage actions. Steps 1.

  • Page 35: Expert Mode

    Thermal & Optical Bi-spectrum Network Camera User Manual Figure 6-1 Set Rules Stop Drawing Stop drawing one area. Clear All Clear all the areas. 4. Optional: You can set the parameters of multiple areas by repeating the above steps. 6.1.2 Expert Mode You can configure the motion detection parameters of day/night switch according to the actual needs.

  • Page 36: Set Video Tampering Alarm

    Thermal & Optical Bi-spectrum Network Camera User Manual 3. Select an Area and click Draw Area. Click and drag the mouse on the live video, then release the mouse to finish drawing one area. Figure 6-2 Set Rules Stop Drawing Finish drawing one area.

  • Page 37: Set Alarm Input

    Thermal & Optical Bi-spectrum Network Camera User Manual Figure 6-3 Set Video Tampering Area 6. Refer to Set Arming Schedule for setting scheduled time. Refer to Linkage Method Settings for setting linkage method. 7. Click Save. 6.3 Set Alarm Input Alarm signal from the external device triggers the corresponding actions of the current device.

  • Page 38: Set Exception Alarm

    Thermal & Optical Bi-spectrum Network Camera User Manual 6. Click Save. 6.4 Set Exception Alarm Exception such as network disconnection can trigger the device to take corresponding action. Steps 1. Go to Configuration → Event → Basic Event → Exception. 2.
  • Page 39 Thermal & Optical Bi-spectrum Network Camera User Manual recommended to set as the average sound intensity in the environment. The louder the environment sound, the higher the value should be. You can adjust it according to the real environment. Sudden Decrease of Sound Intensity Detection Detect sudden decrease of sound intensity.

  • Page 40: Chapter 7 Arming Schedule And Alarm Linkage

    Thermal & Optical Bi-spectrum Network Camera User Manual Chapter 7 Arming Schedule and Alarm Linkage Arming schedule is a customized time period in which the device performs certain tasks. Alarm linkage is the response to the detected certain incident or target during the scheduled time. 7.1 Set Arming Schedule Set the valid time of the device tasks.

  • Page 41: Ftp/Nas/Memory Card Uploading

    Thermal & Optical Bi-spectrum Network Camera User Manual Manual Alarm You can trigger an alarm output manually. Steps 1. Set the manual alarm parameters. Alarm Output No. Select the alarm output No. according to the alarm interface connected to the external alarm device.

  • Page 42: Send Email

    Thermal & Optical Bi-spectrum Network Camera User Manual Refer to Set Memory Card for memory card storage configuration. 7.2.3 Send Email Check Send Email, and the device sends an email to the designated addresses with alarm information when an alarm event is detected. For email settings, refer to Set Email.

  • Page 43: Notify Surveillance Center

    Thermal & Optical Bi-spectrum Network Camera User Manual 7.2.4 Notify Surveillance Center Check Notify Surveillance Center, the alarm information is uploaded to the surveillance center when an alarm event is detected. 7.2.5 Trigger Recording Check Trigger Recording, and the device records the video about the detected alarm event. For device with more than one camera channels, you can set one or more channels to take recordings if needed.
  • Page 44 Thermal & Optical Bi-spectrum Network Camera User Manual Note Only certain camera models support the function.

  • Page 45: Chapter 8 Live View

    Thermal & Optical Bi-spectrum Network Camera User Manual Chapter 8 Live View It introduces the live view parameters, function icons and transmission parameters settings. 8.1 Live View Parameters Note For multichannel devices, select the desired channel first before live view settings. 8.1.1 Window Division ●...

  • Page 46: Full Screen

    Thermal & Optical Bi-spectrum Network Camera User Manual live view among multiple channels. Click to switch live view among multiple channels. 8.1.6 Full Screen This function is used to view the image in full screen mode. Click to start full screen mode and press ESC button to exit. 8.1.7 Light Click to turn on or turn off the illuminator.

  • Page 47: Lens Parameters Adjustment

    Thermal & Optical Bi-spectrum Network Camera User Manual Note The function is only supported by certain models. 8.1.12 Lens Parameters Adjustment It is used to adjust the lens focus, zoom and iris. Zoom ● Click , and the lens zooms in. ●...
  • Page 48 Thermal & Optical Bi-spectrum Network Camera User Manual multicast address for them before selection. Note For detailed information about multicast, refer to Multicast. HTTP HTTP is suitable for the situation that the third-party needs to get the stream from the device.

  • Page 49: Chapter 9 Video And Audio

    Thermal & Optical Bi-spectrum Network Camera User Manual Chapter 9 Video and Audio This part introduces the configuration of video and audio related parameters. 9.1 Video Settings This part introduces the settings of video parameters, such as, stream type, video encoding, and resolution.

  • Page 50: Resolution

    Thermal & Optical Bi-spectrum Network Camera User Manual 9.1.3 Resolution Select video resolution according to actual needs. Higher resolution requires higher bandwidth and storage. 9.1.4 Bitrate Type and Max. Bitrate Constant Bitrate It means that the stream is compressed and transmitted at a comparatively fixed bitrate. The compression speed is fast, but mosaic may occur on the image.

  • Page 51: Smoothing

    Thermal & Optical Bi-spectrum Network Camera User Manual file than MJPEG or MPEG-4 Part 2. H.265 H.265, also known as High Efficiency Video Coding (HEVC) and MPEG-H Part 2, is a compression standard. In comparison to H.264, it offers better video compression at the same resolution, frame rate and image quality.

  • Page 52: Display Vca Info

    Thermal & Optical Bi-spectrum Network Camera User Manual smoothing is, the higher quality of the stream will be, though it may appear not fluent. 9.1.9 Display VCA Info VCA information can be displayed by Player and Video. Player Player means the VCA info can be displayed by the dedicated player provided by the manufacturer.

  • Page 53: Two-Way Audio

    Thermal & Optical Bi-spectrum Network Camera User Manual some extent. 9.1.11 Two-way Audio It is used to realize the two-way audio function between the monitoring center and the target in the monitoring screen. Before You Start ● Make sure the audio input device (pick-up or microphone) and audio output device (speaker) connected to the device is working properly.

  • Page 54: Display Settings

    Thermal & Optical Bi-spectrum Network Camera User Manual Note The higher the ROI level is, the clearer the image of the detected region is. 8. Optional: Select other region No. and repeat the above steps if you need to draw multiple fixed regions.

  • Page 55: Exposure Settings

    Thermal & Optical Bi-spectrum Network Camera User Manual ● Self-Adaptive: Choose AGC mode automatically according to current scene. 9.2.3 Exposure Settings Exposure is controlled by the combination of iris, shutter, and photo sensibility. You can adjust image effect by setting exposure parameters. In manual mode, you need to set Exposure Time, Gain and Slow Shutter.

  • Page 56: Blc

    Thermal & Optical Bi-spectrum Network Camera User Manual according to the image brightness. Brightness Limit Adjust the upper limit of IR light power. 9.2.6 BLC If you focus on an object against strong backlight, the object will be too dark to be seen clearly. BLC (backlight compensation) compensates light to the object in the front to make it clear.

  • Page 57: Defog

    Thermal & Optical Bi-spectrum Network Camera User Manual 9.2.10 Defog You can enable the defog function when the environment is foggy and the image is misty. It enhances the subtle details so that the image appears clearer. 9.2.11 Set Palette You can select the palette mode to display the thermal grayscale image to colored image.

  • Page 58: Brightness Sudden Change

    Thermal & Optical Bi-spectrum Network Camera User Manual selectable. Disable this function. Normal Set the DDE level to control the details of the image. The higher the level is, the more details shows, but the higher the noise is. 9.2.14 Brightness Sudden Change When the brightness of target and the background is hugely different (the temperature difference of target and background is huge), the system reduces the difference for viewing.

  • Page 59: Digital Zoom

    Thermal & Optical Bi-spectrum Network Camera User Manual scan lines. Select video signal standard according to the video system in your country. 9.2.18 Digital Zoom You can zoom in the image. The larger the zoom size is, the more blurred the image is. 9.2.19 Scene Mode There are several sets of image parameters predefined for different installation environments.

  • Page 60: Overlay Picture

    Thermal & Optical Bi-spectrum Network Camera User Manual 5. Click Stop Drawing. 6. Click Save. Note Up to 4 areas are supported for setting. 9.5 Overlay Picture Overlay a customized picture on live view. Before You Start The picture to overlay has to be in BMP format with 24-bit, and the maximum picture size is 128 × 128 pixel.

  • Page 61: Set Picture In Picture

    Thermal & Optical Bi-spectrum Network Camera User Manual 9.7 Set Picture in Picture You can overlay the images of two channels and view the image of two channels at the same time. Steps 1. Select a channel number. 2. Select the picture in picture mode. Normal Mode Disable picture in picture mode.

  • Page 62: Chapter 10 Video Recording And Picture Capture

    Thermal & Optical Bi-spectrum Network Camera User Manual Chapter 10 Video Recording and Picture Capture This part introduces the operations of capturing video clips and snapshots, playback, and downloading captured files. 10.1 Storage Settings This part introduces the configuration of several common storage paths. 10.1.1 Set Memory Card If you choose to store the files to memory card, make sure you insert and format the memory card in advance.

  • Page 63: Set Ftp

    Thermal & Optical Bi-spectrum Network Camera User Manual The saving path of network disk files. User Name and Password The user name and password of the net HDD. 3. Click Test to check whether the network disk is available. 4. Click Save. 10.1.3 Set FTP You can configure the FTP server to save images which are captured by events or a timed snapshot task.

  • Page 64: Video Recording

    Thermal & Optical Bi-spectrum Network Camera User Manual 3. Set basic parameters. Protocol Version The protocol version of the cloud storage server. Server IP The IP address of the cloud storage server. It supports IPv4 address. Serve Port The port of the cloud storage server. 6001 is the default port and you are not recommended to edit it.

  • Page 65: Record Manually

    Thermal & Optical Bi-spectrum Network Camera User Manual movement is recorded. Alarm When alarm input is enabled and trigger recording is selected as linkage method, the video is recorded after receiving alarm signal from external alarm input device. Motion | Alarm Video is recorded when motion is detected or alarm signal is received from the external alarm input device.

  • Page 66: Playback And Download Video

    Thermal & Optical Bi-spectrum Network Camera User Manual 10.2.3 Playback and Download Video You can search, playback and download the videos stored in the local storage or network storage. Steps 1. Click Playback. 2. Select channel No. 3. Set search condition and click Search. The matched video files showed on the timing bar.

  • Page 67: Capture Manually

    Thermal & Optical Bi-spectrum Network Camera User Manual Event-Triggered Capture a picture when an event is triggered. 3. Set the Format, Resolution, Quality, Interval, and Capture Number. 4. Refer to Set Arming Schedule for configuring schedule time. 5. Click Save. 10.3.2 Capture Manually Steps 1.

  • Page 68: Chapter 11 Network Settings

    Thermal & Optical Bi-spectrum Network Camera User Manual Chapter 11 Network Settings 11.1 TCP/IP TCP/IP settings must be properly configured before you operate the device over network. IPv4 and IPv6 are both supported. Both versions can be configured simultaneously without conflicting to each other.

  • Page 69: Multicast Discovery

    Thermal & Optical Bi-spectrum Network Camera User Manual Manual Input IPv6 Address, IPv6 Subnet, IPv6 Default Gateway. Consult the network administrator for required information. It stands for maximum transmission unit. It is the size of the largest protocol data unit that can be communicated in a single network layer transaction.

  • Page 70: Port Mapping

    Thermal & Optical Bi-spectrum Network Camera User Manual 11.3 Port Mapping By setting port mapping, you can access devices through the specified port. Before You Start When the ports in the device are the same as those of other devices in the network, refer to Port to modify the device ports.

  • Page 71: Multicast

    Thermal & Optical Bi-spectrum Network Camera User Manual 11.4 Multicast Multicast is group communication where data transmission is addressed to a group of destination devices simultaneously. After setting multicast, you can send the source data efficiently to multiple receivers. Go to Configuration → Network → Basic Settings → Multicast for the multicast settings. IP Address It stands for the address of multicast host.

  • Page 72: Access To Device Via Pppoe Dial Up Connection

    Thermal & Optical Bi-spectrum Network Camera User Manual can be mapped to a domain name resolution server to realize the network access via domain name. Before You Start Registration on the DDNS server is required before configuring the DDNS settings of the device. Steps 1.

  • Page 73: Enable Hik-Connect Service On Camera

    Thermal & Optical Bi-spectrum Network Camera User Manual Confirm Input your dial-up password again. 4. Click Save. 5. Access the device. By Browsers Enter the WAN dynamic IP address in the browser address bar to access the device. By Client Software Add the WAN dynamic IP address to the client software.

  • Page 74: Enable Hik-Connect Service Via Sadp Software

    Thermal & Optical Bi-spectrum Network Camera User Manual 11.8.2 Enable Service via SADP Software Hik-Connect This part introduce how to enable Hik-Connect service via SADP software of an activated camera. Steps 1. Run SADP software. 2. Select a camera and enter Modify Network Parameters page. 3.

  • Page 75: Set Onvif

    Thermal & Optical Bi-spectrum Network Camera User Manual 4. Select a protocol version and input related parameters. 5. Click Save. Register status turns to Online when the function is correctly set. 11.10 Set ONVIF If you need to access to the device through ONVIF protocol, you can configure the ONVIF user to enhance the network security.

  • Page 76: Chapter 12 System And Security

    Thermal & Optical Bi-spectrum Network Camera User Manual Chapter 12 System and Security It introduces system maintenance, system settings and security management, and explains how to configure relevant parameters. 12.1 View Device Information You can view device information, such as Device No., Model, Serial No. and Firmware Version. Enter Configuration →...

  • Page 77: Export Diagnose Information

    Thermal & Optical Bi-spectrum Network Camera User Manual 12.4 Export Diagnose Information Diagnose information includes running log, system information, hardware information. Go to Configuration → System → Maintenance → Upgrade & Maintenance, and click Diagnose Information to export diagnose information of the device. 12.5 Reboot You can reboot the device via browser.

  • Page 78: View Open Source Software License

    Thermal & Optical Bi-spectrum Network Camera User Manual 2. Choose one method to upgrade. Firmware Locate the exact path of the upgrade file. Firmware Directory Locate the directory which the upgrade file belongs to. 3. Click Browse to select the upgrade file. 4.

  • Page 79: Set Dst

    Thermal & Optical Bi-spectrum Network Camera User Manual Note Server Address is NTP server IP address. 5. Click Test to test server connection. 6. Click Save. 12.9.3 Set DST If the region where the device is located adopts Daylight Saving Time (DST), you can set this function.

  • Page 80: Set Same Unit

    Thermal & Optical Bi-spectrum Network Camera User Manual Note You should keep the parameters of the device and the computer or terminal all the same. 3. Click Save. 12.12 Set Same Unit Set the same temperature unit and distance unit. When you enable this function, the unit cannot be configured separately in other setting pages Steps 1.

  • Page 81: Security Audit Log

    Thermal & Optical Bi-spectrum Network Camera User Manual WEB Digest Algorithm MD5, SHA256 and MD5/SHA256 encrypted algorithm in WEB authentication. If you enable the digest algorithm except for MD5, the third-party platform might not be able to log in to the device or enable live view because of compatibility.

  • Page 82: Set Ssh

    Thermal & Optical Bi-spectrum Network Camera User Manual Forbidden IP addresses in the list cannot access the device. Allowed Only IP addresses in the list can access the device. 4. Edit the IP address filter list. Add a new IP address to the list. Modify Modify the selected IP address in the list.

  • Page 83: Set Qos

    Thermal & Optical Bi-spectrum Network Camera User Manual Create and Install Self-signed Certificate Steps 1. Check Create Self-signed Certificate. 2. Click Create. 3. Follow the prompt to enter Country, Hostname/IP, Validity and other parameters. 4. Click OK. Result The device will install the self-signed certificate by default. Install Authorized Certificate If the demand for external access security is high, you can create and install authorized certificate via HTTPS protocol to ensure the data transmission security.

  • Page 84: Set Ieee 802.1X

    Thermal & Optical Bi-spectrum Network Camera User Manual Note Network can identify the priority of data transmission. The bigger the DSCP value is, the higher the priority is. You need to set the same value in router while configuration. 3. Click Save. 12.13.7 Set IEEE 802.1X You can authenticate user permission of the connected device by setting IEEE 802.1X.
  • Page 85 Thermal & Optical Bi-spectrum Network Camera User Manual creating accounts. Modify Select a user and click Modify to change the password and permission. Delete Select a user and click Delete. Note The administrator can add up to 31 user accounts. 3.

  • Page 86: Chapter 13 Appendix

    0.98 Hard Paperboard 0.90 White Paper 0.90 Water 0.96 13.2 Device Command Scan the following QR code to get device common serial port commands. Note that the command list contains the commonly used serial port commands for Hikvision thermal cameras.

  • Page 87: Device Communication Matrix

    Thermal & Optical Bi-spectrum Network Camera User Manual 13.3 Device Communication Matrix Scan the following QR code to get device communication matrix. Note that the matrix contains all communication ports of Hikvision thermal cameras.
  • Page 88 UD17923B...
