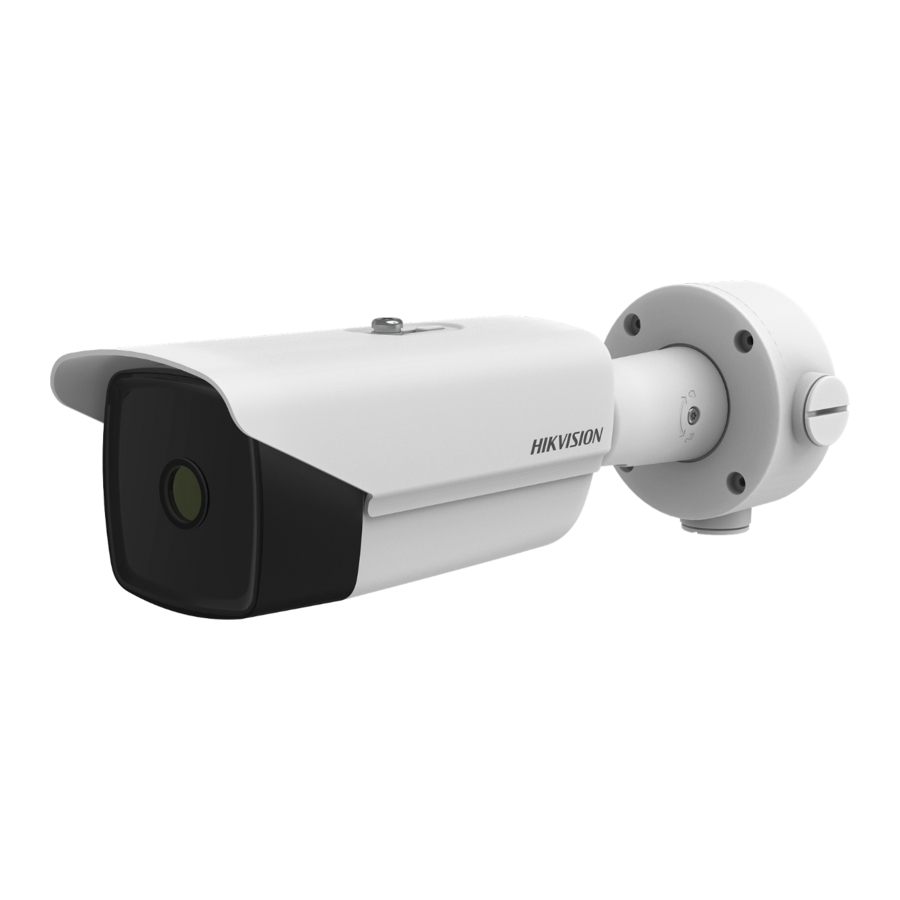

DS-2TD2137-7P Thermal Network Bullet Camera Quick Start Guide...
Page 2
BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS. YOU ACKNOWLEDGE THAT THE NATURE OF INTERNET PROVIDES FOR INHERENT SECURITY RISKS, AND HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS;...
Page 3
DS-2TD2137-7P Thermal Network Bullet Camera Quick Start Guide FCC Compliance: This equipment has been tested and found to comply with the limits for Class A device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
Page 4
DS-2TD2137-7P Thermal Network Bullet Camera Quick Start Guide Laws and Regulations • The lightning protection and grounding design of outdoor installation and wiring should be in compliance with the lightning protection requirements of the buildings and local laws and regulations.
Page 5
DS-2TD2137-7P Thermal Network Bullet Camera Quick Start Guide • For long-term storage of the battery, make sure it is fully charged every half year to ensure the battery quality. Otherwise, damage may occur. System Security • You acknowledge that the nature of the Internet provides for inherent security risks, and our company...
DS-2TD2137-7P Thermal Network Bullet Camera Quick Start Guide Table of Contents 1. Appearance Description 1.1 Type I Camera Appearance 1.2 Type II Camera Appearance 1.3 Type III Camera Appearance 1.4 Cable Description 1.5 Interfaces of Junction Box 2. Installation 2.1 Install Memory Card 2.1.1 Install Type I Camera Memory Card ...................
DS-2TD2137-7P Thermal Network Bullet Camera Quick Start Guide 1. Appearance Description There are three kinds of thermal network bullet cameras: Type I bullet camera, Type II bullet camera, and Type III bullet camera. The appearance descriptions of the three cameras are shown below.
DS-2TD2137-7P Thermal Network Bullet Camera Quick Start Guide Figure 3, Type II Camera Overview Figure 4, Type II Camera Components Overview 1.3 Type III Camera Appearance The overview of Type III thermal network bullet camera is shown below. Figure 5, Type III Camera Overview...
DS-2TD2137-7P Thermal Network Bullet Camera Quick Start Guide Figure 6, Type III Camera Components Overview 1.4 Cable Description The bullet camera cables, including power cable, alarm cable, and audio cable are shown below. The cables differ by camera model. Refer to the actual device.
DS-2TD2137-7P Thermal Network Bullet Camera Quick Start Guide Cable Description Name Description For 12 VDC or 24 VAC power supply, make sure that the positive/negative terminals Power Interface are connected correctly Network Interface Connect to the LAN interface, PoE (802.3af) is supported...
DS-2TD2137-7P Thermal Network Bullet Camera Quick Start Guide 2. Installation Before You Start • Make sure the device in the package is in good condition and all the assembly parts are included. • The standard power supply is 12 VDC or 24 VAC. Make sure your power supply matches your camera.
DS-2TD2137-7P Thermal Network Bullet Camera Quick Start Guide Figure 9, Remove Card Slot Cover (Type I Camera) 2. Insert the memory card into the memory card slot. Figure 10, Insert Memory Card (Type I Camera) 3. Cover the memory card slot and fix the screws on the memory card slot cover.
DS-2TD2137-7P Thermal Network Bullet Camera Quick Start Guide NOTE: A rubber seal ring is on the top of the memory card slot cover. Do NOT lose the ring for the waterproof performance. 2. Insert the memory card into the memory card slot.
DS-2TD2137-7P Thermal Network Bullet Camera Quick Start Guide NOTE: This table is for reference only, and the actual detection range may vary by camera settings, mounting condition, monitor, etc. Install Camera 2.3.1 Install Type I Camera Before You Start There are three Type I camera installation methods: wall mounting, ceiling mounting, and stand mounting.
Page 15
DS-2TD2137-7P Thermal Network Bullet Camera Quick Start Guide Figure 16, Drill Template (Type I Camera) 5. Align the drill template hole with the junction box base screw hole to place the junction box onto the wall. 6. Route the screw through the sealing ring, and fix the junction box base on the wall with the screws.
DS-2TD2137-7P Thermal Network Bullet Camera Quick Start Guide 9. Fix the delivered screws to secure the junction box. 10. Connect the corresponding cables to power on the camera and get the live view. 11. Adjust the camera according to the figure below.
Page 17
DS-2TD2137-7P Thermal Network Bullet Camera Quick Start Guide 3. (Optional) Affix the camera to the junction box. 1) Attach the drill template (supplied) to the where you want to fix the junction box, and then drill four holes in the ceiling/wall according to the drill template.
DS-2TD2137-7P Thermal Network Bullet Camera Quick Start Guide Type I Bracket ● 1) Loosen the pan adjusting screw to adjust panning position [0° to 360°]. Tighten the screw. 2) Loosen the tile adjusting screw to adjust the tilting position [0° to 100°]. Tighten the screw.
DS-2TD2137-7P Thermal Network Bullet Camera Quick Start Guide 2.4.1 Install Network Cable Waterproof Jacket Figure 25, Install Waterproof Jacket Steps 1. Feed the network cable through ① and ③ in order. 2. Fix ② on the network cable between ① and ③.
DS-2TD2137-7P Thermal Network Bullet Camera Quick Start Guide 3. Set the Network Camera over the LAN NOTE: You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, strengthen your own protection.
DS-2TD2137-7P Thermal Network Bullet Camera Quick Start Guide 3.2.1 Activate via Web Browser Steps 1. Power on the camera, and connect the camera to the network. 2. Input the IP address into the address bar of the Web browser, and click Enter to enter the activation interface.
DS-2TD2137-7P Thermal Network Bullet Camera Quick Start Guide Steps 1. Run the SADP software to search for online devices. 2. Check the device status from the device list, and select the inactive device. Figure 30, SADP Interface The SADP software supports activating the camera in batch. See the SADP software user manual for details.
DS-2TD2137-7P Thermal Network Bullet Camera Quick Start Guide Steps 1. Run the SADP software. 2. Select an active device. NOTE: Refer to Chapter 3.2 to activate the camera if the camera is inactive. 3. Change the device IP address to the same subnet as your computer by either modifying the IP address manually or checking the Enable DHCP checkbox.
Page 24
DS-2TD2137-7P Thermal Network Bullet Camera Quick Start Guide Web Browser: Internet Explorer 8.0 and above version, Apple Safari 5.0.2 and above version, Mozilla • Firefox 5.0 and above version, or Google Chrome 18 and above version Steps 1. Open the Web browser.
DS-2TD2137-7P Thermal Network Bullet Camera Quick Start Guide 5. Appendix Frequently Asked Questions (FAQ) Device Running Error Question: The device fails to start or reboots repeatedly. Answer: Examine the power supply of the device and see whether it meets the requirements.
