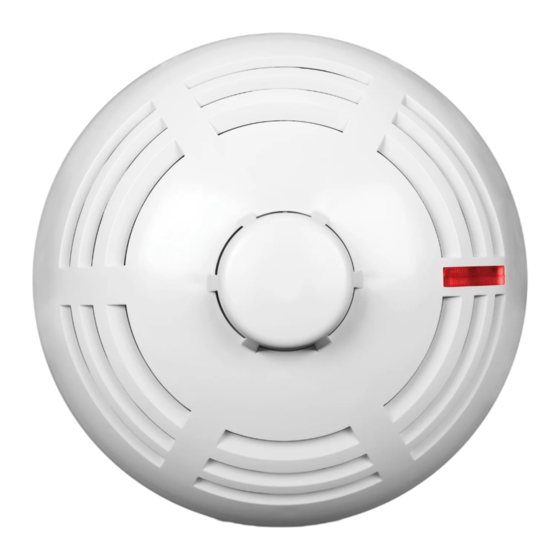

Satel ACSP DRP-400 Manual

Addressable multisensor smoke and heat detector, addressable optical smoke detector, addressable fixed temperature / rate-of-rise heat detector
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

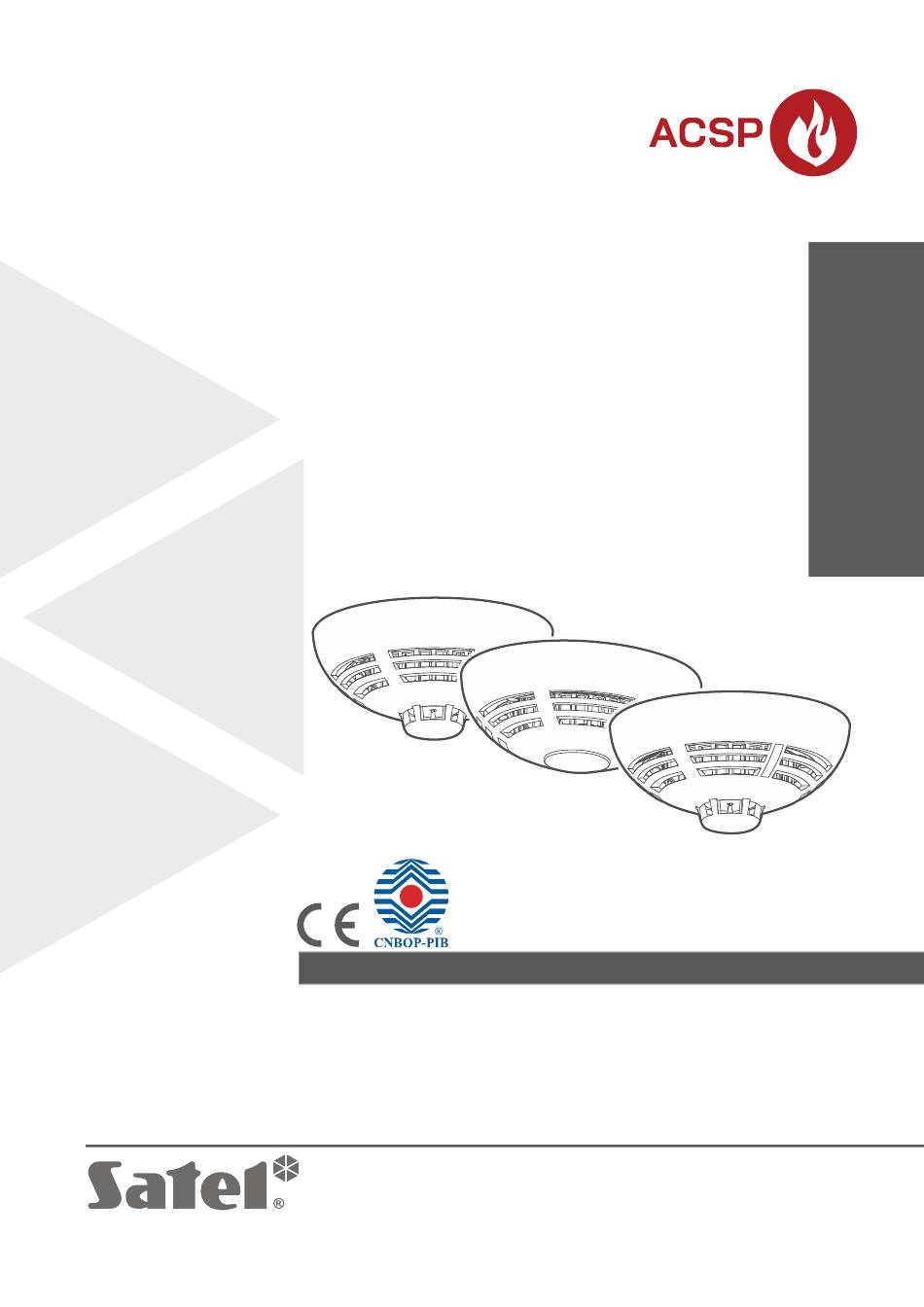

Addressable multisensor smoke and heat detector
Addressable fixed temperature / rate-of-rise heat detector
Addressable optical smoke detector
SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND
tel. +48 58 320 94 00
www.satel.pl
DMP-400
Firmware version 1.00
DRP-400
Firmware version 1.00
DCP-400
Firmware version 1.00
dmp-400_en 02/23
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACSP DRP-400 and is the answer not in the manual?

Questions and answers

Related Manuals for Satel ACSP DRP-400

Summary of Contents for Satel ACSP DRP-400

  • Page 1 Addressable optical smoke detector DRP-400 Firmware version 1.00 Addressable fixed temperature / rate-of-rise heat detector DCP-400 Firmware version 1.00 dmp-400_en 02/23 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.pl...
  • Page 2 IMPORTANT The device should be installed by qualified personnel. Prior to installation, please read carefully this manual in order to avoid mistakes that can lead to malfunction or even damage to the equipment. Disconnect power before making any electrical connections. Changes, modifications or repairs not authorized by the manufacturer shall void your rights under the warranty.
  • Page 3  Smoke sensor sensitivity adjusted by the control panel (4 sensitivity levels).  LED indicator.  Double-sided short-circuit isolator.  Power supply from the detection line.  Installation on the DB-400 base by SATEL (sold separately).  Ability to connect the WZ-110 remote indicator.  Dust cover included. Description Smoke detection (DMP-400, DRP-400) The optical method is used for the detection of visible smoke.

  • Page 4: Selecting A Mounting Location

    DMP-400 / DRP-400 / DCP-400 SATEL Temperature detection (DMP-400, DCP-400) The heat sensor operates according to the requirements of Class A1R (EN 54-5). The detector informs the control panel when the temperature exceeds 54°C or rises too fast (see: Table 1).

  • Page 5: Installation

    DMP-400 / DRP-400 / DCP-400  In spaces where condensation of water vapor occurs, install the detector base on the PDB-100 industrial base by SATEL.  Do not install the detector near heaters, cookers, fans or air-conditioner outlets.  Do not install the detector in places where there is no unobstructed movement of air (e.g.

  • Page 6: Specifications

    DMP-400 / DRP-400 / DCP-400 SATEL Specifications Supply voltage ....................... 18...26 VDC Quiescent current consumption DMP-400 ............0.5 mA DRP-400 ............0.45 mA DCP-400 ............0.45 mA Alarm current consumption DMP-400 ............0.7 mA DRP-400 ............0.7 mA DCP-400 ............0.6 mA Class according to EN 54-5 (heat sensor) ................A1R...
  • Page 7 SATEL DMP-400 / DRP-400 / DCP-400 Minimum static response temperature ................54 °C Maximum static response temperature ................65 °C Operating temperature range .................. -25...+50 °C Maximum humidity ......................93±3% DMP-400 / DCP-400 ......ø108 x 54 mm Enclosure dimensions DRP-400 ..........
  • Page 8 EN 54-5:2017+A1:2018 and EN 54-17:2005 + AC:2007. The Certificate and the Declaration of Constancy of Performance can be downloaded from the www.satel.pl. website. SATEL Sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND 1438 1438-CPR-0882...
  • Page 9 SATEL Sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND 1438 1438-CPR-0881 Declaration of Performance DOP/CPR/0881 EN 54-7:2018 EN 54-17:2005 + AC:2007 Fire safety in construction works. DRP-400 addressable, spot type, optical smoke detector operating on light scattering principle, with built-in short-circuit isolator, for fire alarm systems used in buildings.
  • Page 10 SATEL Sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND 1438 1438-CPR-0890 Declaration of Performance DOP/CPR/ 0890 EN 54-7:2018 EN 54-5:2017+A1:2018 EN 54-17:2005 + AC:2007 Fire safety in construction works. DMP-400 addressable, class A1R, multisensor smoke and heat detector operating on light scattering principle, with built-in short-circuit isolator, for fire alarm systems used in buildings.
