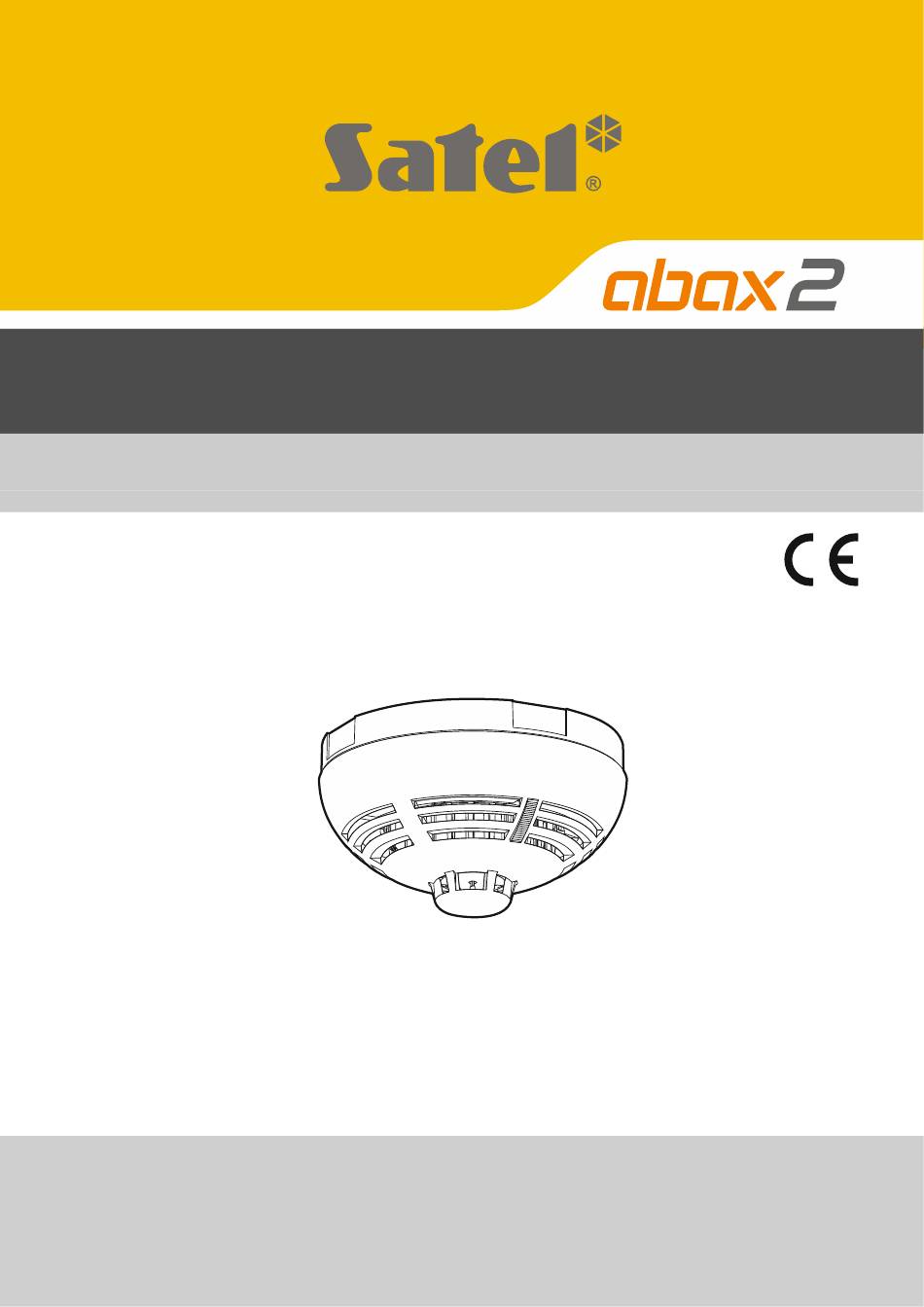

ASD-200
Wireless smoke and heat detector
Firmware version 1.00
asd-200_en 03/19
SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND
tel. +48 58 320 94 00
www.satel.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASD-200 and is the answer not in the manual?

Questions and answers

Related Manuals for Satel ASD-200

Summary of Contents for Satel ASD-200

  • Page 1 ASD-200 Wireless smoke and heat detector Firmware version 1.00 asd-200_en 03/19 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
  • Page 2 The rating plate of the device is located on the enclosure base. SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. Current information about the changes being introduced is available on our website.
  • Page 3 The ASD-200 multisensor detector can detect the early stages of fire development when there is some visible smoke and/or temperature rise. It is designed for operation within the ABAX 2 / ABAX two-way wireless system. This manual applies to the detector with firmware version 1.00, which is supported by:...
  • Page 4 ASD-200 SATEL Fire alarm Smoke detection An optical method is used for the detection of visible smoke. When the concentration of smoke in the optical chamber exceeds a given threshold, an alarm is triggered. The smoke sensor operating parameters are modified depending on the temperature changes recorded by the heat sensor (thermistor).

  • Page 5: Selecting A Mounting Location

    SATEL ASD-200 Test mode The test mode makes diagnostics of the detector easier, because the detector LED indicates periodical communication and alarm memory. How to start and end the test mode is described in the ABAX 2 / ABAX controller manual / the INTEGRA 128-WRL control panel manual.

  • Page 6: Installation

    ASD-200 SATEL  It is not advisable to install it in close vicinity of electrical systems, because it can adversely affect the range of radio signal. Legend for Figures 2 and 3: living room. room. hall, lobby, etc. kitchen. basement.

  • Page 7: Maintenance

    LED indicates fouling of the chamber (2 short flashes during periodical communication with controller / control panel). 1. Start the service mode in the control panel (if the controller is connected to a SATEL alarm control panel).
  • Page 8 ASD-200 SATEL 3. Remove the battery. 4. Pull aside the mounting catches (Fig. 7) and remove the electronics board with the optical chamber (Fig. 8). 5. Remove the cover from the thermistor (Fig. 9). 6. Pull aside the thermistor and its leads (Fig. 10).

  • Page 9: Battery Replacement

    When the detector indicates low battery (3 short flashes of the LED and 3 short beeps every 30 seconds), the battery must be replaced. 1. Start the service mode in the control panel (if the controller is connected to a SATEL alarm control panel).
