Introduction

Introduction

Overview

Nearly every new road vehicle, and many older vehicles, have multiple control modules
that monitor and control different aspects of the vehicle (e.g. Engine, Transmission,

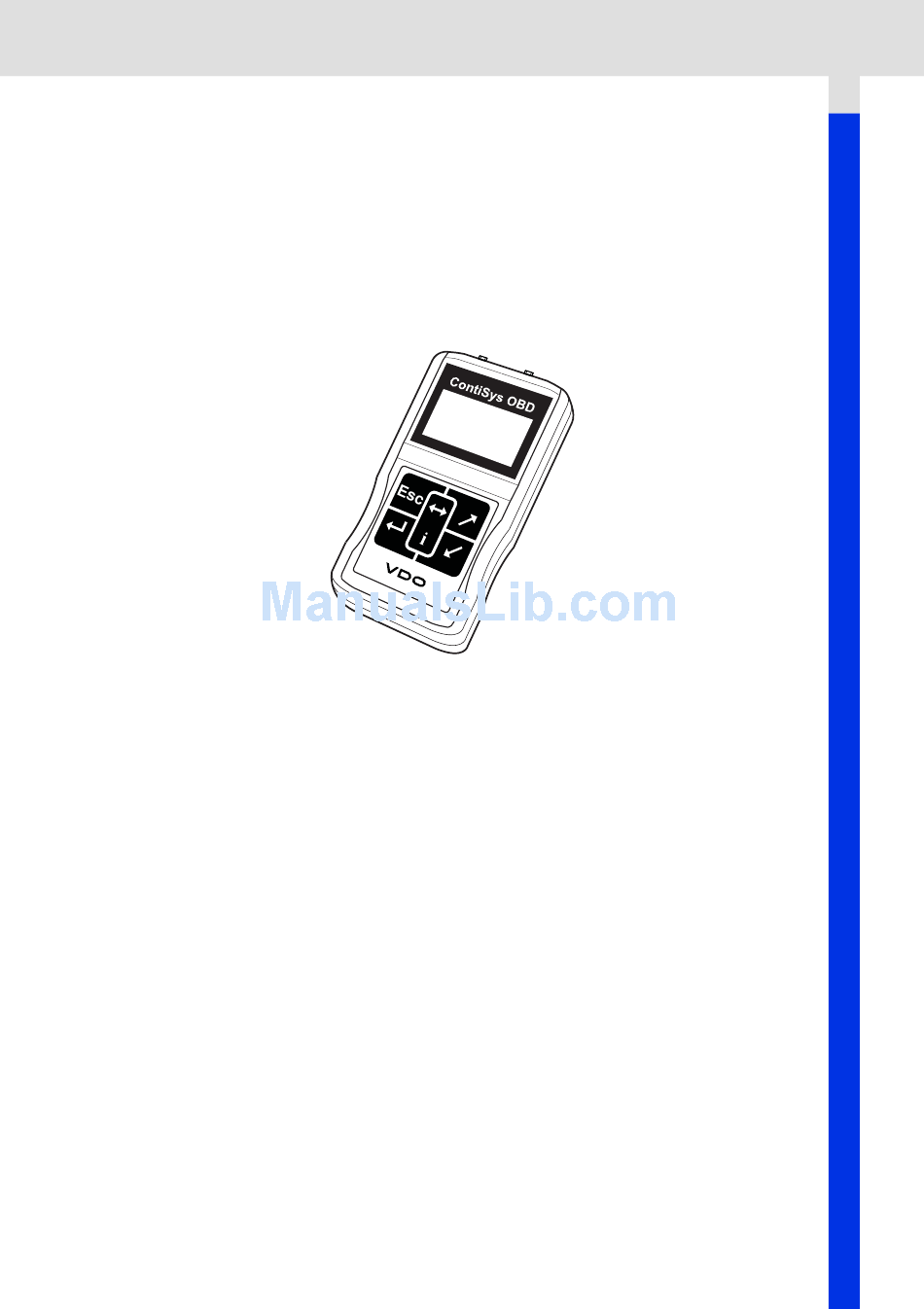

Body, Suspension, etc.). The ContiSys OBD service tool has been specifically
designed to connect to, and communicate with, a number of these control modules
and allow the user to extract information (e.g. Diagnostic Trouble Codes) which may
aid in the diagnosis of system problems.
The applications available on the ContiSys OBD service tool is dependent on the tool
purchased.
There are currently eight applications available.
EOBD
• The EOBD (European On-Board Diagnostic) Scan application allows you to access
the vehicles emission related data through the OBD functionality. This includes MI
(Malfunction Indicator) status, read and clear faults, live data, O2 sensor tests,
freeze frame data and more.
FastCheck ABS
• FastCheck ABS allows you to read and clear any fault codes stored by the selected
system
FastCheck Airbag
• FastCheck Airbag allows you to read and clear any fault codes stored by the
selected system.
FastCheck Climate
• FastCheck Climate allows you to read and clear any fault codes stored by the
selected system.
