Instructions

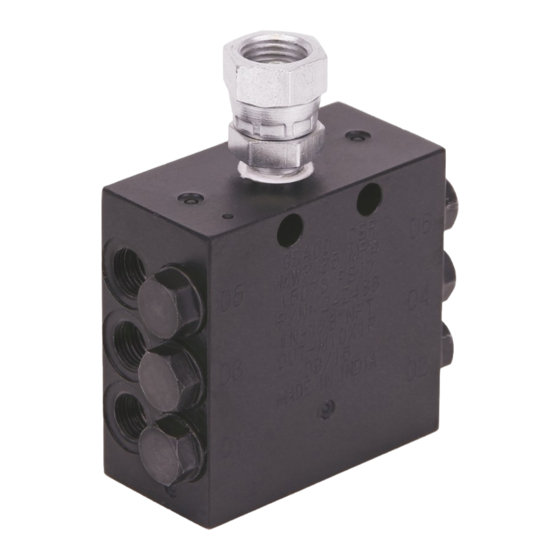

CSP Valve
For the progressive delivery of mineral oil and grease for lubrication. For professional use
only.
5076 psi (35 MPa, 350 bar) Maximum Operating
Pressure
See page 3 for model information, including maximum
working pressure and approvals.
Important Safety Instructions
Read all warnings and instructions in this
manual before using the equipment.
Save all instructions.
Related Manuals
Manual in
Description
English
3A3159
Field Attachable Hose Fittings
Without Indicator Pin
With Indicator Pin
3A3995L
EN
