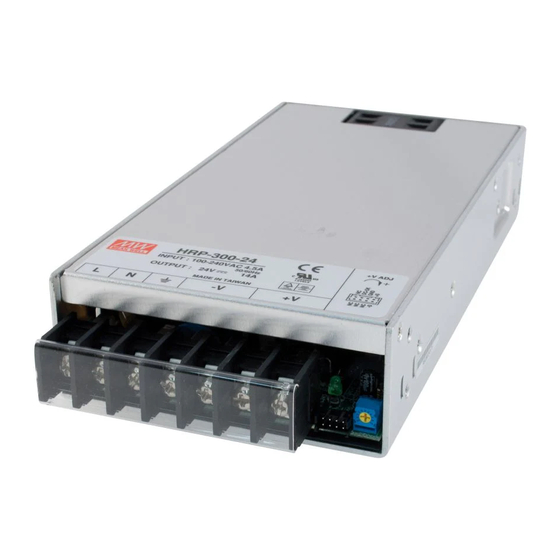

Mean Well HRP-N Series Installation Manual


Enclosed Type Switching Power Supply
Type：
(Families: CSP, ENP, ERP, G3, HDP, HEP, HRP, HRP-N, HRP-N3, HRPG, HSP, LRS, MSP,
 Introduction
Enclosed type switching power supplies possess a metal or plastic case for covering their internal PCB and will be
installed inside the case of the end system. Mean Well's enclosed type power supplies include 2 different groups of
power supplies, with built-in fan and without built-in fan, depending on their rated power or design concept.
 Installation
（1）Before any installation or maintenance work, please disconnect your system from the utility.
Ensure that it can't be re-connected inadvertently!
（2）Keep enough insulation distance between mounting screws and internal components of power supplies. Please
refer to case drawing on specifications to receive the maximum length of mounting screw.
（3）Mounting orientations other than standard orientation or operate under high ambient temperature may
increase the internal component temperature and will require a de-rating in output current. Please refer to
the specification sheets to receive the optimum mounting position and information about the de-rating curve.
（4）Fans and ventilation holes must be kept free from any obstructions. Also a 10-15 cm clearance must be kept
when the adjacent device is a heat source.
（5）Input and Output terminal
Series
RSP-750 / 1000 / 1500 / 2000 / 2400 / 3000
SE-450 / 1000 / 1500
HEP-600 ， HRP-300 ， HRP-300N ， HRP-300N3 ， HRPG-300 ， MSP-300
SP-480，SP-750，SPV-1500，USP-500，RST-10000
HRP-075 / 100 / 150 / 150N / 150N3 / 200，HRPG-150 / 200
LRS-035 / 050 / 075 / 100 / 150 / 150F / 200 / 350
MSP-100 / 200
NED-035 / 050 / 075 / 100，NET-035 / 050 / 075
NES-025 / 035 / 050 / 075 / 100 / 150 / 200 / 350
QP-200 / 320 / 375
RD-050 / 065 / 085 / 125，RID-050 / 065 / 085 / 125
RS-035 / 050 / 075 / 100 / 150
RSP-075 / 100 / 150 / 200 / 320
SP-075 / 100 / 150 / 200 / 240 / 320，SPV-150/300
SE-100 / 200 / 350，HSP-250，PSP-600
RSP-1600
RD-035，RT-050 / 065 / 085 / 125
RQ-050 / 065 / 085 / 125
TP-075 / 100 / 150，QP-100 / 150
RS-015 / 025
NES-015，USP-150
NSP-1600 / 3200
ERP-350
HDP-190 / 240
NEL-200 / 300
Installation Manual
NED, NEL, NES, NSP, PSP, PSPA, QP, RS, RSP, RST, SE, SP, SPV, TP, UHP, USP)
Terminal Screw
Screw Size
M4
M3.5
M3
Suggested
Torque
10-12kgf-cm
8-10 kgf-cm
6-8 kgf-cm
#6 8-10 kgf-cm
