Type：

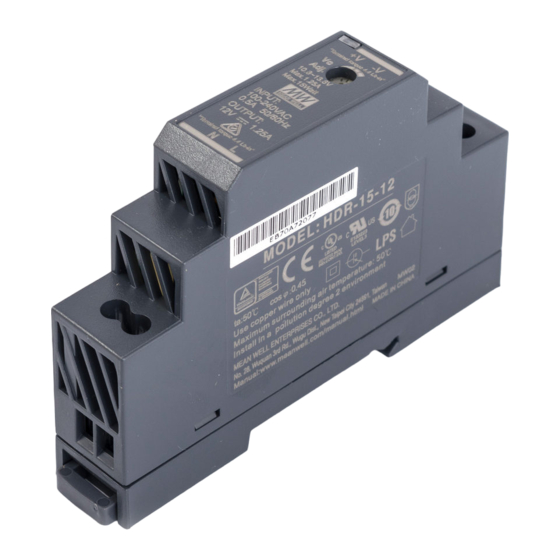

HDR DIN rail power supply（Series：HDR-15, HDR-30, HDR-60, HDR-100, HDR-150）
HDR-15-5
HDR-15-12
HDR-15-15
HDR-15-24
HDR-15-48
HDR-30-5
HDR-30-12
HDR-30-15
HDR-30-24
HDR-30-48
HDR-60-5
HDR-60-12
HDR-60-15
HDR-60-24
HDR-60-48
HDR-100-12
HDR-100-15
HDR-100-24
HDR-100-48
HDR-100-12N
HDR-100-15N
HDR-100-24N
HDR-100-48N
HDR-150-12
HDR-150-15
HDR-150-24
HDR-150-48
Introduction
HDR is a DIN rail power supply series with ultra slim appearance and full range AC input (100-240Vac). The series
conforms to EN6100-3-2, the norm the European Union regulates for harmonic current. With plastic housing, it can
effectively prevent user from electric hazards. Like other Mean Well's DIN series, they can be mounted on a TS35
Standard DIN rail.
Installation
（1） Always allow good ventilation clearances, 5mm left and right, 40mm above and 20mm below, around the
unit in use to prevent it from overheating. Also a 10-15 cm clearance must be kept when the adjacent device
is a heat source.

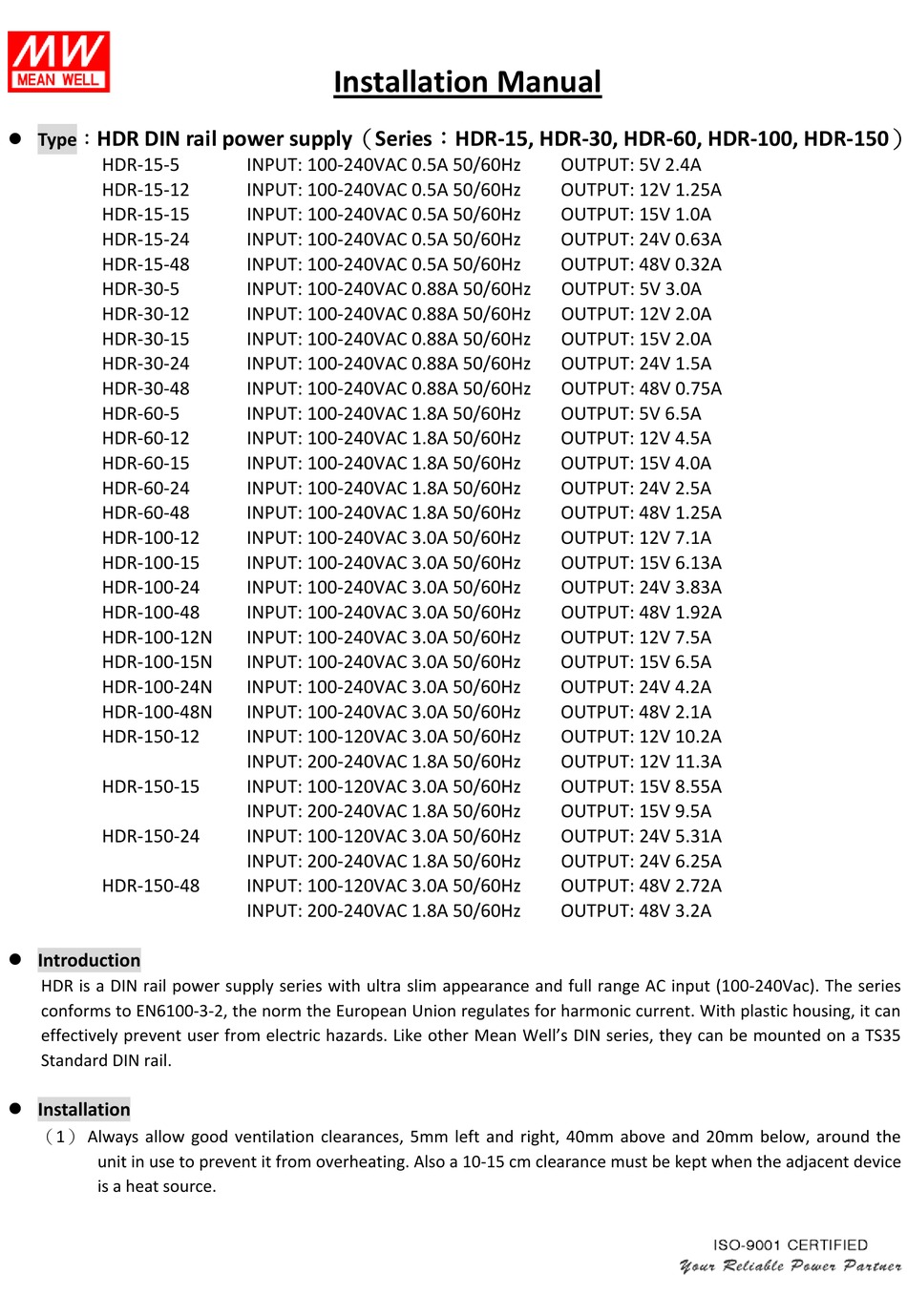

Installation Manual
INPUT: 100-240VAC 0.5A 50/60Hz
INPUT: 100-240VAC 0.5A 50/60Hz
INPUT: 100-240VAC 0.5A 50/60Hz
INPUT: 100-240VAC 0.5A 50/60Hz
INPUT: 100-240VAC 0.5A 50/60Hz
INPUT: 100-240VAC 0.88A 50/60Hz
INPUT: 100-240VAC 0.88A 50/60Hz
INPUT: 100-240VAC 0.88A 50/60Hz
INPUT: 100-240VAC 0.88A 50/60Hz
INPUT: 100-240VAC 0.88A 50/60Hz
INPUT: 100-240VAC 1.8A 50/60Hz
INPUT: 100-240VAC 1.8A 50/60Hz
INPUT: 100-240VAC 1.8A 50/60Hz
INPUT: 100-240VAC 1.8A 50/60Hz
INPUT: 100-240VAC 1.8A 50/60Hz
INPUT: 100-240VAC 3.0A 50/60Hz
INPUT: 100-240VAC 3.0A 50/60Hz
INPUT: 100-240VAC 3.0A 50/60Hz
INPUT: 100-240VAC 3.0A 50/60Hz
INPUT: 100-240VAC 3.0A 50/60Hz
INPUT: 100-240VAC 3.0A 50/60Hz
INPUT: 100-240VAC 3.0A 50/60Hz
INPUT: 100-240VAC 3.0A 50/60Hz
INPUT: 100-120VAC 3.0A 50/60Hz
INPUT: 200-240VAC 1.8A 50/60Hz
INPUT: 100-120VAC 3.0A 50/60Hz
INPUT: 200-240VAC 1.8A 50/60Hz
INPUT: 100-120VAC 3.0A 50/60Hz
INPUT: 200-240VAC 1.8A 50/60Hz
INPUT: 100-120VAC 3.0A 50/60Hz
INPUT: 200-240VAC 1.8A 50/60Hz
OUTPUT: 5V 2.4A
OUTPUT: 12V 1.25A
OUTPUT: 15V 1.0A
OUTPUT: 24V 0.63A
OUTPUT: 48V 0.32A
OUTPUT: 5V 3.0A
OUTPUT: 12V 2.0A
OUTPUT: 15V 2.0A
OUTPUT: 24V 1.5A
OUTPUT: 48V 0.75A
OUTPUT: 5V 6.5A
OUTPUT: 12V 4.5A
OUTPUT: 15V 4.0A
OUTPUT: 24V 2.5A
OUTPUT: 48V 1.25A
OUTPUT: 12V 7.1A
OUTPUT: 15V 6.13A
OUTPUT: 24V 3.83A
OUTPUT: 48V 1.92A
OUTPUT: 12V 7.5A
OUTPUT: 15V 6.5A
OUTPUT: 24V 4.2A
OUTPUT: 48V 2.1A
OUTPUT: 12V 10.2A
OUTPUT: 12V 11.3A
OUTPUT: 15V 8.55A
OUTPUT: 15V 9.5A
OUTPUT: 24V 5.31A
OUTPUT: 24V 6.25A
OUTPUT: 48V 2.72A
OUTPUT: 48V 3.2A
