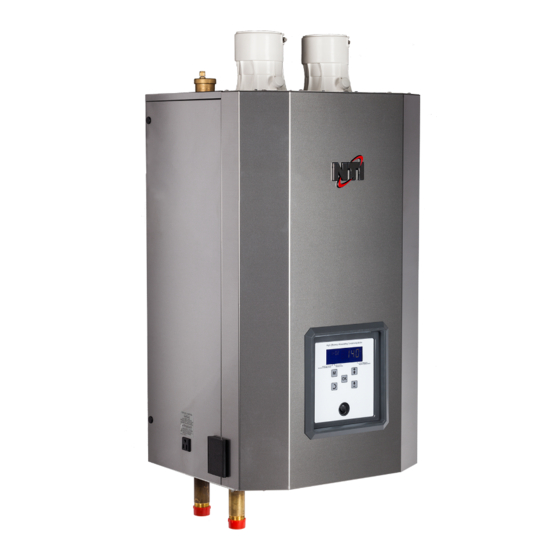

Trinity Tx
Model Numbers: Tx 51 - 200
Version Date: 2019-06-20
INSTALLATION AND OPERATION MANUAL

TABLE OF CONTENTS

1.0
INTRODUCTION ................................................................................................................ 3
2.0
SPECIFICATIONS .............................................................................................................. 6
3.0
BOILER LOCATION .......................................................................................................... 7
4.0
GENERAL VENTING ....................................................................................................... 10
5.0
VENT/AIR-INLET TERMINATION CLEARANCES ..................................................... 24
6.0
CONDENSATE DRAIN .................................................................................................... 26
7.0
INSTALLING GAS PIPING .............................................................................................. 28
8.0
LIGHTING THE BOILER ................................................................................................. 30
9.0
GAS VALVE AND BURNER SET-UP ............................................................................ 33
10.0 BOILER AND HEATING SYSTEM PIPING ................................................................... 36
12.0 FIELD WIRING ................................................................................................................. 49
13.0 CASCADE INSTRUCTIONS ............................................................................................ 52
14.0 WIRING SCHEMATICS ................................................................................................... 54
15.0 INSTALLATION CHECKLIST ........................................................................................ 56
16.0 ANNUAL MAINTENANCE AND INSPECTION ........................................................... 57
17.0 DISPLAY MENU GUIDE ................................................................................................. 59
18.0 TROUBLESHOOTING ..................................................................................................... 72
19.0 PARTS LIST ...................................................................................................................... 75
HAZARD SYMBOLS AND DEFINITIONS
Danger Sign: Indicates a hazardous situation which, if not avoided, will
result in serious injury or death.
Warning Sign: Indicates a hazardous situation which, if not avoided,
could result in serious injury or death.
Caution Sign plus Safety Alert Symbol: Indicates a hazardous situation
which, if not avoided, could result in minor or moderate injury.
Caution Sign without Safety Alert Symbol: Indicates a hazardous
situation which, if not avoided, could result in property damage.
Notice Sign: Indicates a hazardous situation which, if not avoided,
could result in property damage.
unit may result in property damage, serious injury to occupants, or possibly death.
This Boiler must be installed by a licensed and trained Heating
Technician or the Warranty is Void. Failure to properly install this
H
Visit us
online
NTI # 84874
