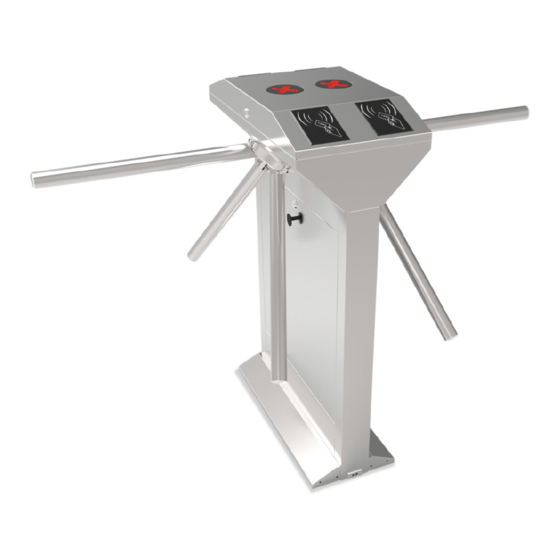

Tripod turnstile
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TS1200 Series Tripod Turnstile User Manual
Version: 2.4
Date: Jan, 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TS1211 and is the answer not in the manual?

Questions and answers

Related Manuals for ZKTeco TS1211

Summary of Contents for ZKTeco TS1211

  • Page 1 TS1200 Series Tripod Turnstile User Manual Version: 2.4 Date: Jan, 2018...

  • Page 2: Technical Specifications

    TS1200: Tripod Turnstile TS1211: Tripod Turnstile with Controller and RFID Reader TS1222: Tripod Turnstile with Controller and Fingerprint Reader with RFID function. Please read this document carefully before installation and using the device. 1. Technical Specifications AC 100~120V /200~240V, Center: 80 kg Input Voltage Max.

  • Page 3: Equipment Installation

    2. Rotating the arms to the connection points until it was fastening, and use the Hex key to fasten the one screw on each arm, as shown in Figure 2-2. Tighten the one screw on each arm in clockwise direction. Figure 2-2 2.2 Power-on test before the installation of device 1.
  • Page 4 Figure 3-1 Notes: 1. The space at the end of the arm shall not be greater than 80 mm (see Figure 3-1). 2. Setting a warning line for card swiping (see Figure 3-2). A warning line is suggested to prompt users to swipe cards in a distance, which would greatly reduce the probability of equipment failure caused by improper operations.
  • Page 5 Placing the mounting plate properly and apply screw securing glue on the surface and the threads of the expansion bolts, install six expansion bolts to secure the mounting plate, and use a horizontal ruler to test the levelness of the mounting plate.

  • Page 6: Cable Diagram

    4. Cable Diagram 4.1 Function description of the turnstile control board If you are using TS1211 or TS1222, all the connections between access control and turnstile control boards are done in factory. Just plug in communication cable to access controller and do the setting. If you are using TS1200, you need to connect access control system to the control board, please check the content in this chapter carefully.
  • Page 7 there are emergencies. J6 Drop Arm: Short circuit DOW and GND, the arm is dropped down by force in case there are fires or other emergencies. J8 Proximity Switch Signal Input: Input position signal of the arm. J9 12V Power Supply for Access control: control board directly provide Access Control with 12V power. (Maximum support 3A) V1L Left Solenoid, V2R Right Solenoid &...
  • Page 8 4.3.2 Direction indicator It is to indicate whether the passage allows people to pass. The green arrow means passing is allowed while the red "X" means passing is prohibited. The indicator status can be set through number 4 and 5 in the DIP switch. The description of the bit settings are as follows: 11 = One-way traffic, left passing is allowed.

  • Page 9: Equipment Precautions And Maintenance

    5. Equipment Precautions and Maintenance 5.1 Precaution 1. It is recommended to purchase optional accessories to use in outdoor environment. (1) It shall install optional cooling fans for the equipment if the working temperature is often above 50 ºC. (2) It is equivalent to IP54 waterproof under proper installation. However, it cannot work in the region that may suffer typhoon.

  • Page 10: Troubleshooting

    The Adjustable Tension Spring is used to adjust the tripod turnstile's elasticity and return speed. You can rotate it in clockwise direction to enhance and in anticlockwise direction to weaken the elasticity and return speed of the tripod turnstile. See Figure 5-2. Figure 5-3 shows the mechanical and electrical structure of this equipment.
  • Page 11 The passing is not smooth after the turnstile is opened, it encounters resistance It is caused by the Adjustable Tension Spring. when pushing the arms, and the arms Adjust the Adjustable Tension Spring, as shown in Figure 5-3. cannot return to the home position after they rotate.

  • Page 12: Attachment 1 Default Factory Settings

    Attachment 1 Default Factory Settings Function Default Lock Driving Duration Door Sensor None Verification Interval Controller Communication TCP/IP: 192.168.1.201 Turnstile Opening Duration Passing Direction Indicator Passing is allowed in both directions Continue Passing Function Disabled Alarm Function Disabled Note: The Lock Driving Duration is default 5 seconds, please set to 1 second.

  • Page 13: Attachment 2 Connection Diagram Of Control Board And Access Control Panel

    Attachment 2 Connection Diagram of Control board and Access Control Panel Warning: This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
