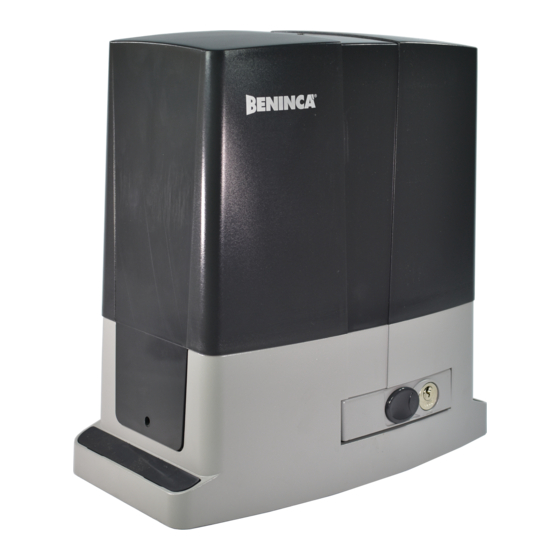

- Page 1 L854200296 03/2021 rev 0 BULL 424 ESA - 424 ESA.S 624 ESA - 624 ESA.S UNIONE NAZIONALE COSTRUTTORI AUTOMATISMI PER CANCELLI, PORTE SERRANDE ED AFFINI...
- Page 2 24mm max 20mm...
- Page 3 68 mm 103 mm ≈1 mm min = 92 mm min = 0 mm max = 112 mm max= 20 mm...
- Page 5 K Max 35 mm 3 mm 74 mm 35 mm 63 mm BULL 424 ESA.S BULL 624 ESA.S...
-
Page 7: General Information
GENERAL INFORMATION SPECIFICATIONS This automatic system, with 24VDC single-phase power supply for sliding BULL 424 ESA BULL 624 ESA gates, is available in the following versions: BULL 424 for gates with maximum weight equal to 350kg... -
Page 8: Installation
INSTALLATION MANUAL OPERATION FIG.13 FIG.1 Should a power failure or malfunction occurs, to manually operate the Overall dimensions of the gear motor expressed in mm. gate proceed as follows: POSITIONING OF THE FOUNDATION PLATE After inserting the customised key C, turn it anti-clockwise and pull FIG.2-3-4-5 the lever L. -
Page 9: Manutenzione
BULL ISTRUZIONI PER L’UTILIZZATORE USER’S HANDBOOK NORME DI SICUREZZA SAFETY MEASURES • Non sostare nella zona di movimento dell'anta. • Do not stand within the gate movement area. • Non lasciare che i bambini giochino con i comandi o in prossimità •... - Page 10 Declare that the DOC is issued under our sole responsibility and belongs to the following product: Modello/Tipo: Model/Product: BULL 424 ESA / BULL 424 ESA.S / BULL 624 ESA / BULL 624 ESA.S BULL 424 ESA / BULL 424 ESA.S / BULL 624 ESA / BULL 624 ESA.S Tipo di prodotto:...
- Page 11 Oświadcza, że dokument został wydany na własną odpowiedzialność i dotyczy produktu: Modelo/Tipo: Model/Typ: BULL 424 ESA / BULL 424 ESA.S / BULL 624 ESA / BULL 624 ESA.S BULL 424 ESA / BULL 424 ESA.S / BULL 624 ESA / BULL 624 ESA.S Tipo de producto: Rodzaj produktu: Motorreductor electromecánico 24Vdc para portones correderos...
