Install The Battery Backup Unit - Intel SRCU41L - RAID Controller User Manual

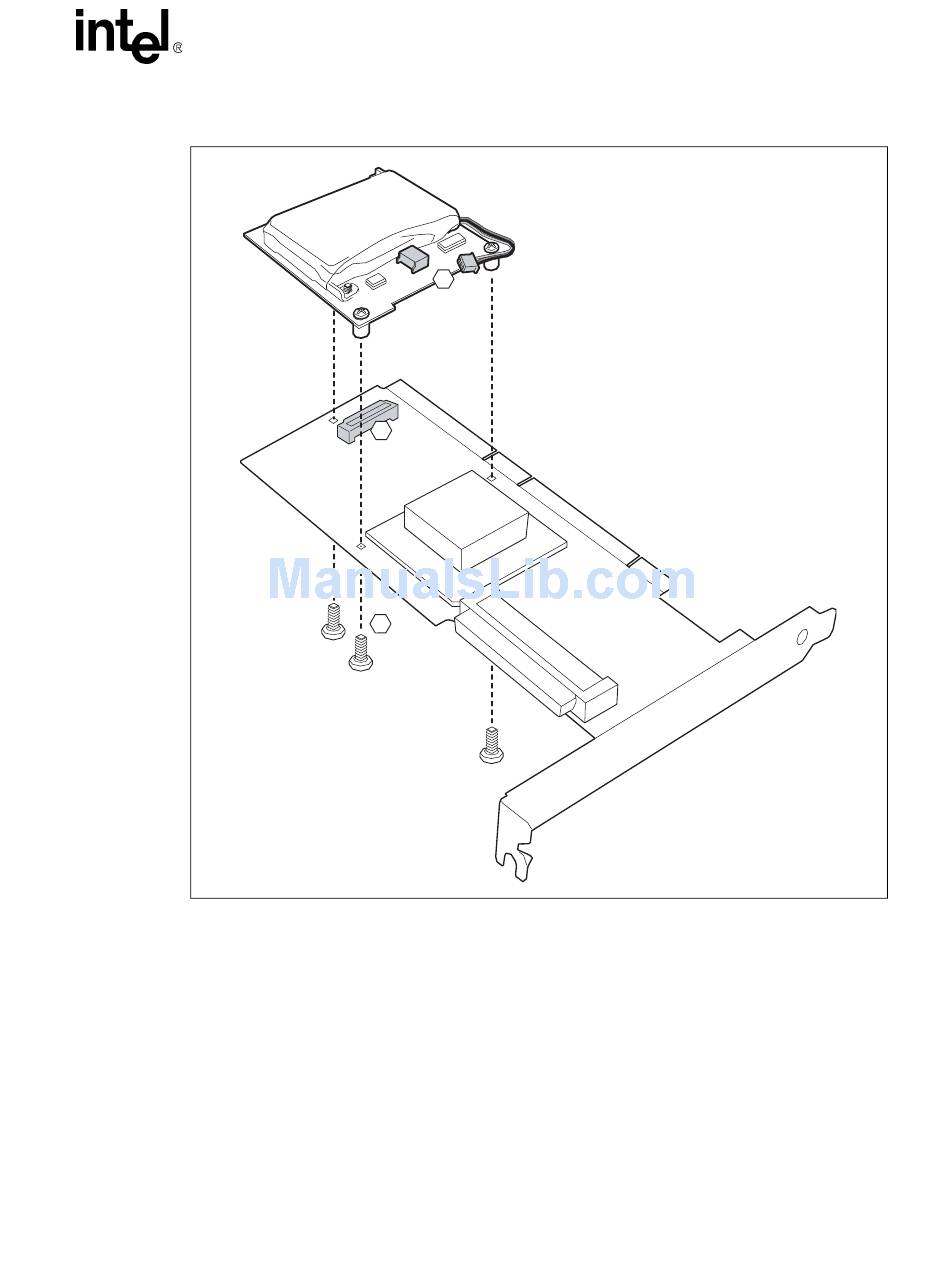

Figure 2. Install the Battery Backup Unit
3. Power Down the System
Turn off the computer and remove the AC power cord. Remove the system's cover. See the
system documentation for instructions.
4. Check the jumpers.
Ensure that the jumper settings on the your Intel
Chapter 3, "Storage Adapter Characteristics"
SRCU41Ls with their jumpers and connectors.
5. Install the Intel
®
Intel SRCU41L Raid Controller User Manual
A
B
C
®
SRCU41L Raid Controller
Hardware Installation
®
Raid Controller SRCU41L are correct. See
®
for diagrams of the Intel Raid Controller
7
