To remove the RAID ADG Enabler Module:
Press the innermost plastic clip under the controller board towards the other clip (1),
and push the module out of the board (2).
1

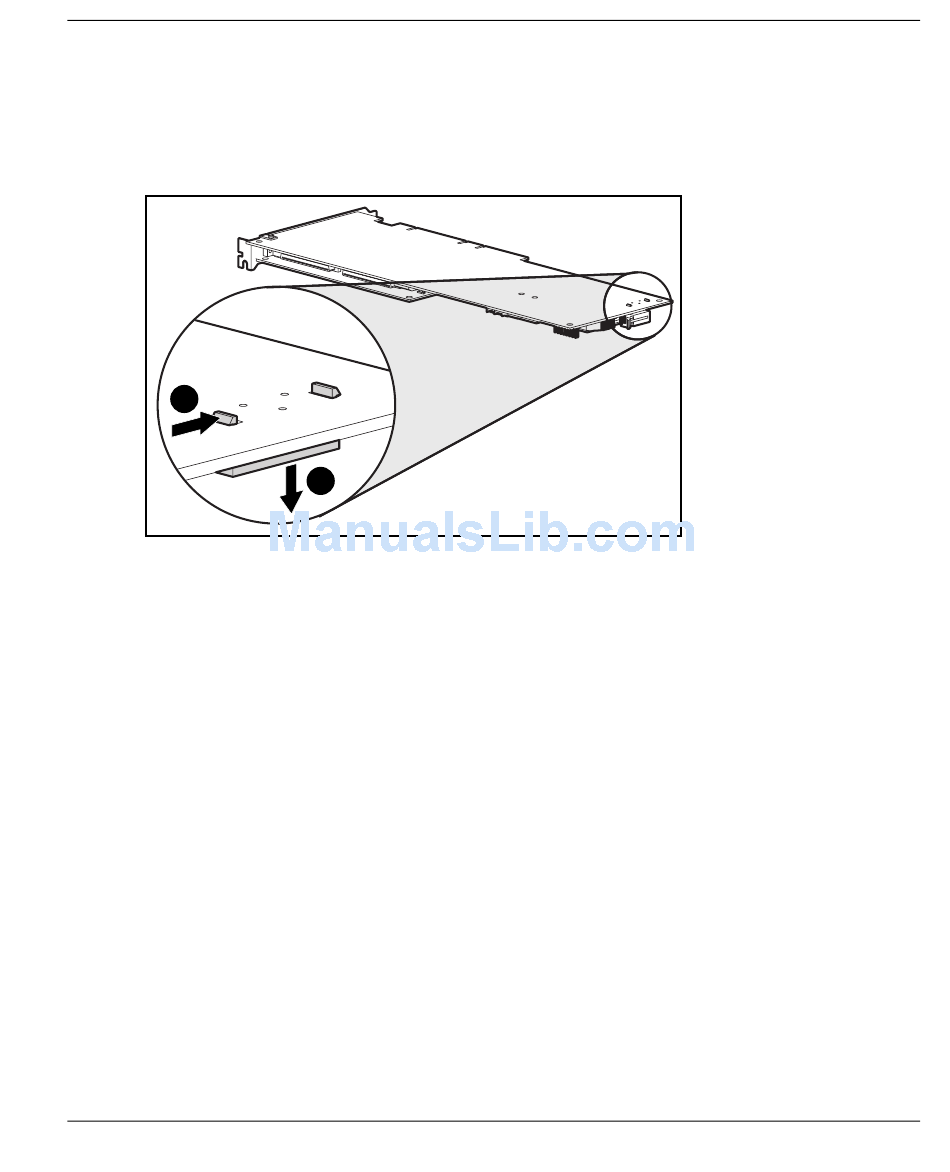

Figure 9-16: Removing the RAID ADG Enabler Module
To install the module on the new controller board:
1. Check that the array accelerator on the new controller board has at least 64 MB
of read/write cache.
2. Hold the module at an angle and insert the rear end of the module into the
appropriate slot (1).
Compaq Smart Array 5300 Controller User Guide
2
Upgrading and Replacing Options
