Upgrading and Replacing Options
2- to 4-Channel Adapter Board
To remove the existing 2- to 4-channel adapter board:
1. Remove the screw that secures the 2- to 4-channel adapter board. This screw is
reachable from the back of the controller board.

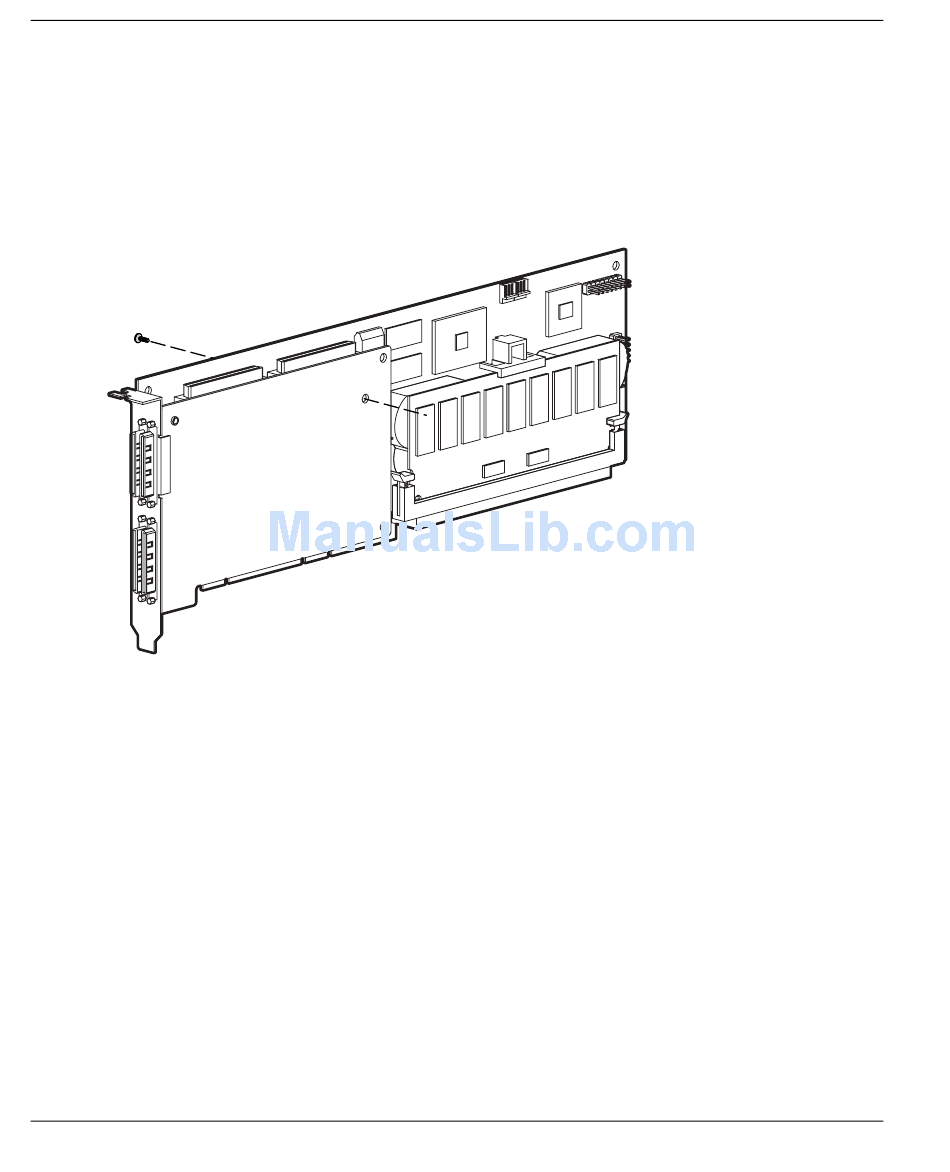

Figure 9-9: Removing the securing screw
9-8
Compaq Smart Array 5300 Controller User Guide
