Select options to create a polygon

The PolyStar tool offers options that let you specify the number of sides in a polygon; you can
also use options for the tool to create a star. You'll specify that your polygon have six sides.
In the Property inspector, with the PolyStar tool still selected, click Options.
1.
In the Tools Setting dialog box, verify that Polygon appears in the Style pop-up menu, and enter
2.
6 in the Number of Sides text box. Click OK.

Draw a polygon

The Shift key assists you in constraining your shape along a vertical or horizontal line.
•
Press Shift and drag the mouse over the left side of the Stage (away from the numbers on the

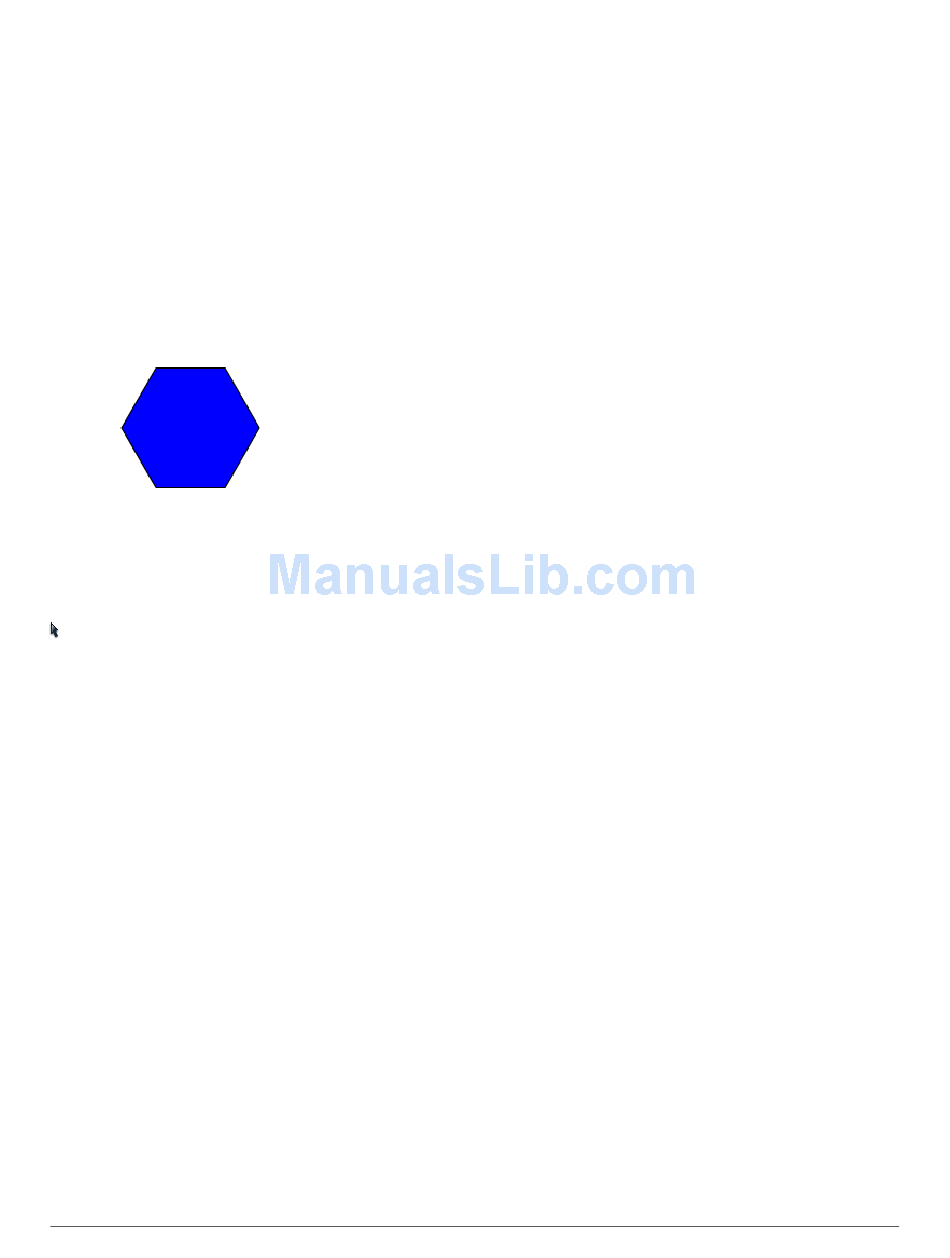

Guides layer) to draw a hexagon, as shown in the following illustration:

Rotate the shape

Once you've created a shape, you can use the Transform panel to specify a precise number of
degrees in which to rotate the shape.
In the Tools panel, click the Selection tool. On the Stage, double-click within the hexagon to
1.
select both the stroke and the fill.
Clicking just once within a shape selects only the fill.
Select Window > Design Panels > Transform. In the Transform dialog box, verify that Rotate
2.
is selected, and enter -15 in the Rotate text box to rotate the shape 15º clockwise. Press Enter
or Return.
Rotate the shape 57
