KidKraft F29410 Installation And Operating Instructions Manual

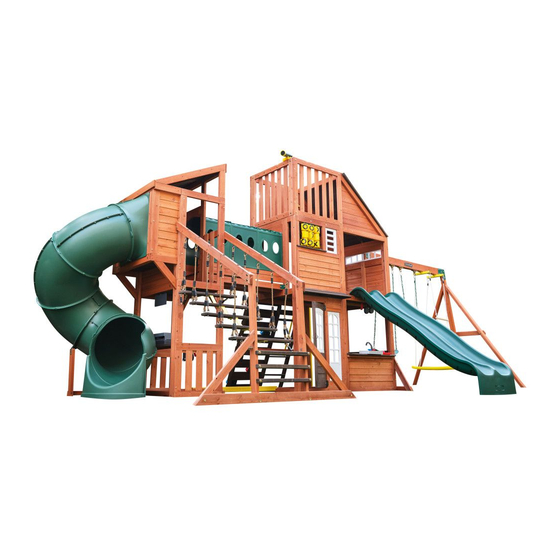

OUTDOOR ODYSSEY
PLAYSET
Easy step-by-step 3D interactive
instructions for this product can be
found in BILT
Option 1 - Attached Swing Beam Configuration
INSTALLATION AND OPERATING INSTRUCTIONS
FOR 24/7 ONLINE PARTS REPLACEMENT
parts.kidkraft.com
KidKraft, Inc.
4630 Olin Road
Dallas, Texas 75244
USA
customerservice@kidkraft.com
1.800.933.0771
972.385.0100
® . Download today.
parts.kidkraft.eu
KidKraft Netherlands BV
Olympisch Stadion 8
1076 DE Amsterdam
The Netherlands
europecustomerservice@kidkraft.com
+31 20 305 8620
M-F from 09:00 to 17:30 (GMT+1)
MAXIMUM VERTICAL FALL HEIGHT - 9'10" (3m).
CAPACITY - 16 Users Maximum, Ages 3 to 10; Weight Limit 110 lbs. (50 kg) per child.
RESIDENTAL HOME USE ONLY. Not intended for public areas such as multi-unit
residences, schools, churches, nurseries, day cares or parks.
23'7 7/16"
7.2
10'5"
3.2
OBSTACLE FREE SAFETY ZONE - 37'-6 1/16" x 23'-7 7/16" x 16'-4 7/8"
(11.4 m x 7.2 m x 5 m) area requires Protective Surfacing. See page 5.
9409410 Rev 02/17/2022
TWO-PERSON ASSEMBLY TIME
ASSEMBLY 15 - 20 HOURS
WARNING
To reduce the risk of serious injury or death, please read and follow
these instructions. Keep and refer to instructions as needed and
pass along to any future owners of this item.
37'6 1/16"
11.4
25'4.3"
7.73
11'2.64"
3.42
WARNING. ONLY
FOR OUTDOOR
DOMESTIC USE
