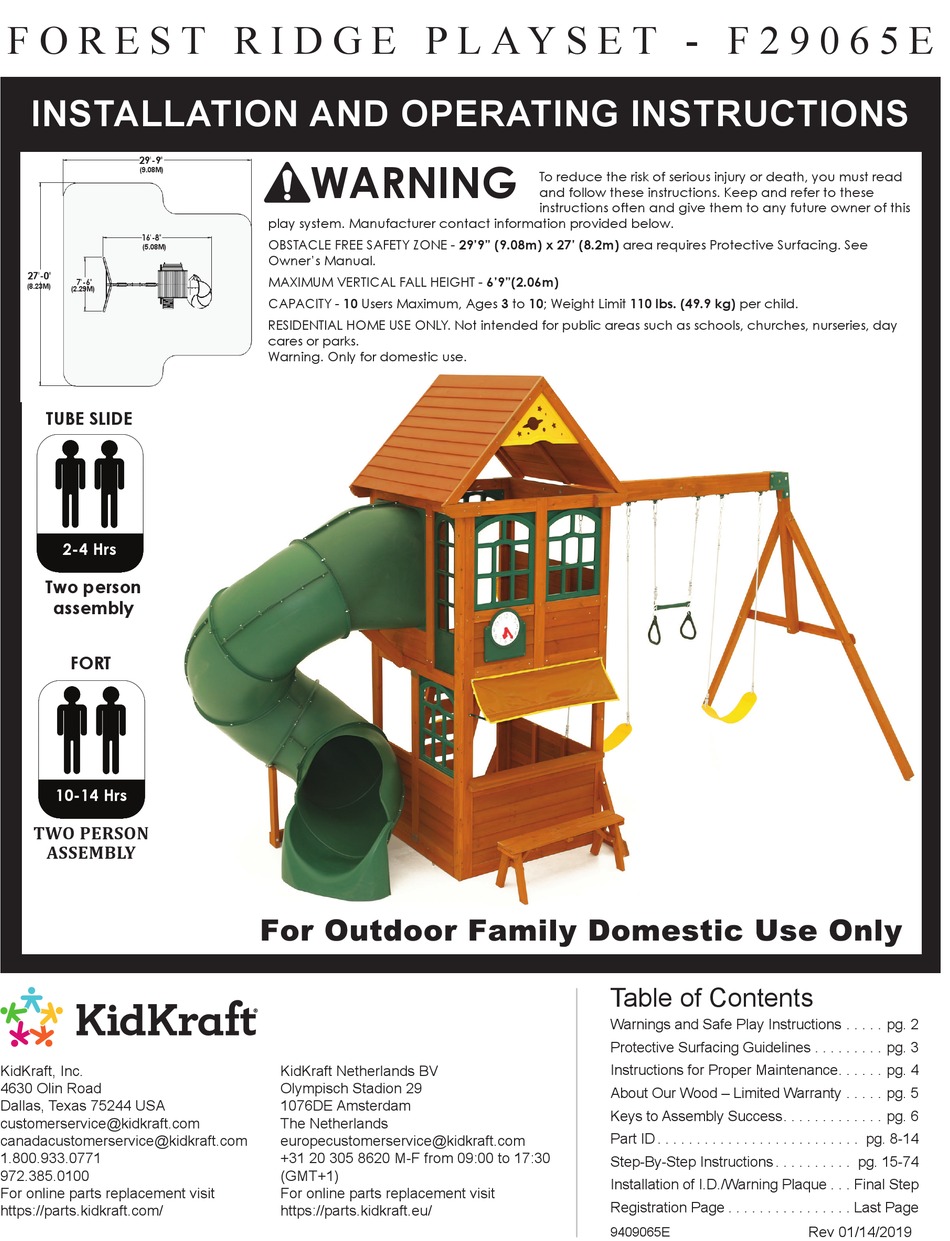

F O R E S T R I D G E P L A Y S E T - F 2 9 0 6 5 E
INSTALLATION AND OPERATING INSTRUCTIONS
29'-9"
(9.08M)
16'-8"
(5.08M)
27'-0"
7'-6"
(8.23M)
(2.29M)
EPIC
TUBE SLIDE
2-4 Hrs
Two person
assembly
FORT
10-14 Hrs
TWO PERSON
ASSEMBLY
KidKraft, Inc .
4630 Olin Road
Dallas, Texas 75244 USA
customerservice@kidkraft .com
canadacustomerservice@kidkraft .com
1 .800 .933 .0771
972 .385 .0100
For online parts replacement visit
https://parts .kidkraft .com/
WARNING
play system. Manufacturer contact information provided below.
OBSTACLE FREE SAFETY ZONE - 29'9" (9.08m) x 27' (8.2m) area requires Protective Surfacing. See
Owner's Manual.
MAXIMUM VERTICAL FALL HEIGHT - 6'9"(2.06m)
CAPACITY - 10 Users Maximum, Ages 3 to 10; Weight Limit 110 lbs. (49.9 kg) per child.
RESIDENTIAL HOME USE ONLY. Not intended for public areas such as schools, churches, nurseries, day
cares or parks.
Warning. Only for domestic use.
KidKraft Netherlands BV
Olympisch Stadion 29
1076DE Amsterdam
The Netherlands
europecustomerservice@kidkraft .com
+31 20 305 8620 M-F from 09:00 to 17:30
(GMT+1)
For online parts replacement visit
https://parts .kidkraft .eu/
To reduce the risk of serious injury or death, you must read
and follow these instructions. Keep and refer to these
instructions often and give them to any future owner of this
Table of Contents
Warnings and Safe Play Instructions . . . . . pg . 2
Protective Surfacing Guidelines . . . . . . . . . pg . 3
Instructions for Proper Maintenance . . . . . . pg . 4
About Our Wood – Limited Warranty . . . . . pg . 5
Keys to Assembly Success . . . . . . . . . . . . . pg . 6
Part ID . . . . . . . . . . . . . . . . . . . . . . . . . . pg . 8-14
Step-By-Step Instructions . . . . . . . . . . pg . 15-74
Installation of I .D ./Warning Plaque . . . Final Step
Registration Page . . . . . . . . . . . . . . . . Last Page
9409065E
Rev 01/14/2019

Advertisement

loading
Need help?

Need help?

Do you have a question about the Forest Ridge F29065E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KidKraft Forest Ridge F29065E

Summary of Contents for KidKraft Forest Ridge F29065E

  • Page 1 Protective Surfacing Guidelines . . . . . . . . . pg . 3 Instructions for Proper Maintenance . . . . . . pg . 4 KidKraft, Inc . KidKraft Netherlands BV...
  • Page 2 Warnings and Safe Play Instructions CONTINUOUS ADULT SUPERVISION REQUIRED. Most serious injuries and deaths on playground equipment have occurred while children were unsupervised! Our products are designed to meet mandatory and voluntary safety standards. Complying with all warnings and recommendations in these instructions will reduce the risk of serious or fatal injury to children using this play system.
  • Page 3 Protective Surfacing - Reducing Risk of Serious Head Injury From Falls. One of the most important things you can do to reduce the likelihood of serious head injuries is to install shock-absorbing protective surfacing under and around your play equipment. The protective surfacing should be applied to a depth that is suitable for the equipment height in accordance with ASTM F1292.
  • Page 4 Instructions for Proper Maintenance Your KidKraft Play System is designed and constructed of quality materials with your child’s safety in mind. As with all outdoor products used by children, it will weather and wear. To maximize the enjoyment, safety and life of your Play Set, it is important that you, the owner, properly maintain it.
  • Page 5 About Our Wood KidKraft Premium Play Systems uses only premium playset lumber, ensuring the safest product for your children’s use. Although we take great care in selecting the best quality lumber available, wood is still a product of nature and susceptible to weathering which can change the appearance of your set.
  • Page 6 Keys to Assembly Success Tools Required • Tape Measure • #1, #2 & #3 Phillips • Open End Wrench • 3/16” Hex Key • Carpenters Level or Robertson Bits (7/16”, 1/2” & 9/16”) • 8’ Step Ladder • Carpenters Square or Screwdriver •...
  • Page 7 Your Key To Quick Assembly Step Step Step SAVE TIME - TIP #1: Wood parts are found in Box 2, 3, 4 & 5. Open each box with wood parts and look for the Key Number stamped on the end of the wood part (see chart below). Sort each wood part into the different assembly steps.
  • Page 8 (Reduced Part Size) 1x - KidKraft ID Plaque (9320370) 1x - Window Mesh Set...
  • Page 9 Add On D (Actual Size) - 1/4" (6mm) T - Nut - 3/16" (5mm) Flat Washer - (54503200) (51103100) - 5/16" (8mm) Lock Washer - (51303300) - 1/4"(6mm) Flat Washer - - 5/16" (8mm) T- Nut (51103200) (54503300) - 1/4"(6mm) Lock Washer - (51303200) - 5/16"...
  • Page 10 Add On D Hardware (Actual Size) Wafer Bolt 5/16 x 1" Wafer Bolt 5/16 x 3" (8 x 76mm) 2pc. WB1 - - (53613310) 3pc. WB7 - - (53613330) (8 x 25mm) Hex Bolt 1/4 x 1-1/4" 24pc. H9 - - (53703211) 1/4 x 1-3/8"...
  • Page 11 (Reduced Part Size)
  • Page 12 (Reduced Part Size) Part Identification (Next Generation F) 4pc. - 2759 Roof End 1-1/4 x 3 x 10" (32 x 76 x 254mm) 3632759 4pc. - 2760 - Roof Support 1¼ x 2¼ x 37½" (32 x 57 x 953mm ) 3632760 2pc.
  • Page 13 TNR3 (Reduced Part Size) Next Generation TNR3 (Reduced Part Size) (1) Lower SL Insert 1.36 x 8-1/8 x 26¼" (1) SL Gusset 1¼ x 3 x 15¾" (32 x 76 x 400mm) (34 x 206 x 667mm) 8934 3638934 37638935 (1) TNR Upright 1¼...
  • Page 14 Part Identification (Reduced Part Size) 9x - TNR 2 Slide Elbow (3310121) 1x - TNR 2 Slide Exit Top (3310124) 1x - TNR3 Short Exit (3310132) 1x - TNR 3 Tube Support (9203601) 10x - TNR 2 Slide Clamp Ring (3300120) (1) Rebar Ground Stake 9290318...
  • Page 15 • The carton I .D . stamp is located on the end of each carton .The tracking number is located on the KidKraft ID Plaque (9320370) . • Please retain this information for future reference. You will need this information if you contact the Consumer Relations Department .
  • Page 16 Step 1: Front and Back Wall Prep Part 1 It is important to assemble the frame on a flat, smooth surface. A: Place (2771) End Post and (2770) End Post Left side by side with the grooves facing up and in. Put (2770) End Post Left on the right hand side .
  • Page 17 Step 1: Front and Back Wall Prep Part 2 It is important to assemble the frame on a flat, smooth surface. D: Turn the assembly over, place (2774) Upright in the middle groves of (2775) Panel Cross Support and (2772) Panel Floor Support then attach all boards with 8 (H9) 1/4 x 1-1/4”...
  • Page 18 Step 2: End Wall Prep Part 1 It is important to assemble the frame on a flat, smooth surface. A: Place (2768) Panel Floor and 2 (2769) Panel BT Frames on a hard, flat surface with the long side up. Tap in 2 (TN1) 1/4”...
  • Page 19 Step 2: End Wall Prep Part 2 It is important to assemble the frame on a flat, smooth surface. D: Turn the assembly over then attach all boards with 6 (H9) 1/4 x 1-1/4” Hex Bolts (with lock washer and flat washer) connecting to the previously installed t-nuts.
  • Page 20 Step 3: Swing Wall Prep Part 1 It is important to assemble the frame on a flat, smooth surface. A: Place (2757) LT Post Assembly and (2758) RT Post Assembly on a hard, flat surface with the notches facing down. The top of the post assemblies have the longer notches. (fig. 3.1) B: Tap 1 (TN2) 5/16”...
  • Page 21 Step 3: Swing Wall Prep Part 2 It is important to assemble the frame on a flat, smooth surface. C: Turn the (2757) LT Post Assembly and (2758) RT Post Assembly over and place 2 (2756) Siding Assemblies on top so one sits flush with the top of the middle groove and the second fits flush with the top of the bottom groove.
  • Page 22 Step 3: Swing Wall Prep Part 3 It is important to assemble the frame on a flat, smooth surface. E: Attach (2630) SW Top to (2757) LT Post Assembly and (2758) RT Post Assembly with 2 (WB1) 5/16 x 1” Wafer Bolts (with flat washer) connecting to previously installed t-nuts.
  • Page 23 Step 3: Swing Wall Prep Part 4 It is important to assemble the frame on a flat, smooth surface. I: Attach the top board in each (2756) Siding Assembly to (2757) LT Post Assembly and (2758) RT Post Assembly with 4 (S30) #8 x 1-1/16” Wood Screws per board. (fig. 3.8 and 3.9) J: Attach the remaining boards in each (2756) Siding Assembly to (2757) LT Post Assembly and (2758) RT Post Assembly with 2 (S0) #8 x 7/8”...
  • Page 24 Step 4: Frame Assembly Part 1 It is important to assemble the frame on a flat, smooth surface. A: Place Swing Wall from Step 3 between 2 Front and Back Walls from Step 1, noticing the wall orientations. The tops and bottoms of the walls should be flush. Make sure the walls are square then using the pilot holes as a guide pre-drill with a 3/16”...
  • Page 25 Step 4: Frame Assembly Part 2 B: Place End Wall from Step 2 between the Front Wall and Back Wall noticing the wall orientation. The tops and bottoms of the walls should be flush. Make sure the walls are square then using the pilot holes as a guide pre- drill with a 3/16”...
  • Page 26 Step 4: Frame Assembly Part 3 C: Loosely attach 1 (2607) Diagonal to left (2778) SW Ground MOD with 1 (H10) 1/4 x 2-1/4” Hex Bolt (with lock washer, flat washer and t-nut). (fig. 4.5) D: Place each (2607) Diagonal tight and flush to the front of the Swing Wall then pre-drill pilot holes with a 3/16” (4.8 mm) drill bit and attach each (2607) Diagonal to the Swing Wall with 1 (LS3) 1/4 x 3”...
  • Page 27 Step 5: Floor Assembly Part 1 A: From inside of the assembly centre (2608) Floor Joist over the pilot holes in both (2768) Panel Floors in the Swing and End Walls, measure 5/8” (15.9 mm) down from the top of boards then attach (2608) Floor Joist to each board using the left and centre holes with 2 (S4) #8 x 3”...
  • Page 28 Step 5: Floor Assembly Part 2 B: On the inside of both the Front and Back Walls loosely attach 1 (2777) Side Joist MOD to each (2772) Panel Floor Support with 2 (H11) 1/4 x 2-3/4” Hex Bolts (with lock washer, flat washer and t-nut) as shown in fig. 5.5. Make sure both (2777) Side Joist MODs are level with (2608) Floor Joist.
  • Page 29 Step 5: Floor Assembly Part 3 C: Fasten each (2777) Side Joist MOD to each (2772) Panel Floor Support with 4 (S3) #8 x 2-1/2” Wood Screws per board as shown in fig. 5.6. D: Tighten all (H11) 1/4 x 2-3/4” Hex Bolts in both (2777) Side Joist MOD. Fig.
  • Page 30 Step 5: Floor Assembly Part 4 E: Starting at the Swing Wall place (2648) Floor Board followed by 8 (2609) Floor Boards. Make sure all boards are evenly spaced then attach to (2608) Floor Joist and each (2777) Side Joist MOD with 5 (S20) #8 x 1-3/8” Wood Screws per board.
  • Page 31 Step 6: Swing Beam Assembly A: Attach 6 Swing Hangers to the (2614) Engineered Beam using 2 (G7) 5/16 x 5-1/2” Hex Bolts (with 2 flat washers and 1 lock nut) per Swing Hanger as shown in fig. 6.1. B: Flush to the Fort End of (2614) Engineered Beam attach 2 L-Beam Brackets with 2 (G21) 5/16 x 3-3/4” Hex Bolts (with 2 flat washers and 1 lock nut).
  • Page 32 Step 7: Swing End Assembly A: Loosely attach 2 (2613) Heavy SW Posts to (2615) SW Upright using 2 (G7) 5/16 x 5-1/2” Hex Bolts (with lock washer, flat washer and t-nut). Notice 2 bolt holes at top of (2615) SW Upright and orientation of angle. (fig.
  • Page 33 Step 8: Attach Swing End to Swing Beam A: Place Swing End Assembly against Swing Beam Assembly then place 1 Beam Bracket on each side of the assembly (they are specific for left and right side) and attach with 5 (G21) 5/16 x 3-3/4” Hex Bolts (with 2 flat washers and 1 lock nut).
  • Page 34 Step 9: Attach Swing Assembly To Fort A: Place Swing Assembly against top of (2630) SW Top, make sure assembly is level then attach from inside the fort assembly into each L-Beam Bracket with 4 (G8) 5/16 x 2” Hex Bolts (with 2 flat washers and 1 lock nut).
  • Page 35 Step 10: Install Ground Stakes MOVE FORT TO FINAL LOCATION PRIOR TO STAKING FINAL LOCATION MUST BE LEVEL GROUND A: In the 5 places shown in fig. 10.1 drive the Rebar Ground Stakes 13” (330 mm) into the ground against outside front corner of the End Wall, on both (2607) Diagonals and both (2613) Heavy SW Posts.
  • Page 36 Step 11: How to Install Inserts - Upper and Lower Jambs There is 1 (2601) Lower Jamb and 1 (2602) Upper Jamb provided. Install the (2601) Lower Jamb on the End Wall and the (2602) Upper Jamb on the End Wall using 2 Jamb Mounts and 8 (S0) #8 x 7/8” Truss Screws per board. Use the diagrams below to show correct placement of each board.
  • Page 37 Step 12: How to Install Inserts - Window and Wall Inserts Part 1 There is 1 (2649) Lower Window Insert, 2 (2655) Upper Window Inserts, 1 (2665) Half Wall Insert, 2 (649A) Short Half Walls and 2 MOD 3-Pane Transoms provided. Use the Epic Fort Guide to see where each insert is installed. When installing you will need the following: For (2649) Lower Window Insert and (2655) Upper Window Insert - 9 x (S0) Truss Screws per insert.
  • Page 38 Step 12: How to Install Inserts - Window and Wall Inserts Part 2 Inside Views 3-Pane Transom Tight 649A 2665 Tight Tight REV. DWG. NO. SCALE:1:50 SHEET 2 OF 2...
  • Page 39 Step 13: How to Install Inserts - Clock Assembly There is 1 Clock Set provided to be installed on the Front Wall . See Epic Fort Guide for correct location . See below for how to assemble and attach the Clock Set. When installing you will need the following: Base Clock, Clock Subset (includes minute and hour hands, clock adapter and clock screw), 2 (2717) Clock Blocks and 4 x (S20) Wood Screws.
  • Page 40 Step 14: Rock Wall Assembly Fig. 14.1 Note: The holes in the rock boards must orient to the 2776 2781 top of the boards. 2780 2781 2781 2780 2779 7-5/8” (193.6 mm) x 4 per Approx board Note: Gaps between boards 2-1/4” (57 mm), not to exceed 2-3/8”...
  • Page 41 Step 15: Attach Rock Wall Assembly to Fort Part 1 A: Place Rock Wall Assembly centred in opening of the Back Wall as shown in the Epic Fort Guide and flush as shown below. Attach (2776) Rock Rails to the Back Wall using 4 (S11) #8 x 2” Wood Screws. (fig. 15.1 and 15.2) B: Attach 1 (2779) Access Board to top of Rock Wall Assembly, flush to top of (2776) Rock Rails using 4 (S2) #8 x 1-1/2”...
  • Page 42 Step 15: Attach Rock Wall Assembly to Fort Part 2 C: Drive 1 Rebar Ground Stake 13” (330 mm) into the ground against outside (2776) Rock Rail then attach with 1 (S7) #12 x 2” Pan Screw. Be careful not to hit the washer while hammering stake into the ground as this could cause the washer to break off.
  • Page 43 Step 16: Attach Hand Grip to Fort A: Measure 6” (152.4 mm) from the top of the floor boards on the left hand side of the Rock Board, pre-drill with a 1/8” (3.2 mm) drill bit then attach 1 Play Handle with 2 (WL3) 1/4 x 1-3/8” Wafer Lags to the Back Wall. (fig.
  • Page 44 Step 17: Cafe Table Assembly A: Place (2612) Table Support flush to the notched out ends of (2611) Table Top and attach with 4 (S7) #12 x 2” Pan Screws as shown in fig. 17.1. B: Place Table Top Assembly tight in the opening of Front Wall with the overhang on the outside of the assembly as shown in fig.
  • Page 45 Step 18: Attach Cafe Canopy to Fort A: Feed Cafe Canopy Frame through the pocket of the Cafe Canopy. (fig. 18.1) B: With a helper hold the Canopy against the fort, on the Front Wall as shown on the Epic Fort Guide, measure 3-1/8”...
  • Page 46 Step 19: Roof Support Assembly A: Attach 1 (2760) Roof Support to a second (2760) Roof Support at peak using 1 (S4) #8 x 3” Wood Screw. Repeat this step so there are 2 Roof Support Assemblies. (fig. 19.1 and 19.2) Fig.
  • Page 47 Step 20: Roof Panel Assembly A: Place 1 (2751) MOD Roof Bottom tight to the bottom of (2752) MOD Roof Front and (2753) MOD Roof Back . (fig. 20.1) B: Place a (2761) Roof Sleeper C on the middle strip of each Roof Panel Assembly so the ends are flush and attach with 4 (S20) #8 x 1-3/8”...
  • Page 48 Step 21: Roof Assembly Part 1 A: Place Front Roof Panel against Back Roof Panel so the tops form a peak then tight to the inside edge of the outside slats attach 1 Narrow Angle Bracket per slat with 2 (S0) #8 x 7/8” Truss Screws per bracket. (fig. 21.1 and 21 .2) B: Attach the third Narrow Angle Bracket centred on the middle slat with 2 (S0) #8 x 7/8”...
  • Page 49 Step 21: Roof Assembly Part 2 C: Place 1 Roof Support Assembly against one side so the peaks meet and the ends of the roof supports are flush with the ends of the roof panels. Attach with 8 (S11) Wood Screws. (fig. 21.4) D: Attach the second Roof Support Assembly on the opposite side, peaks to meet and ends are flush with 8 (S11) #8 x 2”...
  • Page 50 Step 22: Attach Sky Gable A: Attach 1 Sky Gable to the inside of the (2617) Roof Supports on each side of the Roof Assembly with 4 (S5) #8 x 1/2” Pan Screws per Sky Gable. (fig. 22.1 and 22.2) Sky Gable Fig.
  • Page 51 Step 23: Attach Roof Ends Part 1 A: On the Front and Back Walls remove the 2 outside (H9) Hex Bolts attached at the top of the assembly from Step 1, Part 2. Leave the (TN1) T-nuts in. The (FW1) Flat Washers and (LW1) Lock Washers will be used in Step B.
  • Page 52 Step 23: Attach Roof Ends Part 2 B: Loosely attach 1 (2759) Roof End to each corner, flush to the top of (2775) Panel Cross Supports, with 1 (H3) 1/4 x 2-1/2” Hex Bolt per board, using the (FW1) 1/4” Flat Washer and (LW1) 1/4” Lock Washer from Step A and connecting to the (TN1) 1/4”...
  • Page 53 Step 23: Attach Roof Ends Part 3 C: Measure overhang so it is 4-7/8” (124 mm) then attach with 2 (S11) #8 x 2” Wood Screws and 1 (S3) #8 x 2-1/2” Wood Screw per (2759) Roof End. Tighten the bolts. (fig. 23.6, 23.7 and 23.8) Fig.
  • Page 54 Step 24: Attach Roof Assembly to Fort Part 1 A: With 2 people on the ground and at least 1 person in the fort, lift the Roof Assembly up and over the Back side of the fort. Guide the Roof Assembly onto the fort so all four (2760) Roof Supports sit flush to the front and outside edges of (2759) Roof Ends.
  • Page 55 Step 24: Attach Roof Assembly to Fort Part 2 C: Place (9450) Roof Tie so that the angled end is flush against (2761) Roof Sleeper C and the other end is flat against (2630) SW Top, centered between the Hex Bolts. Attach using 4 (S11) #8 x 2” Wood Screws, making sure that the top 2 screws are installed on an angle as shown in fig.
  • Page 56 Step 25: Attach Swings A: Attach 1 Threaded Clip to each Acro Rope EN71 and the Acro Bar . Attach another Threaded Clip to each Acro Handle and join with first Threaded Clip. Make sure to close the Threaded Clip tightly using an adjustable wrench.
  • Page 57 Step 26: Bench Assembly A: Open the (2658) Folding Bench Assembly. (fig. 26.1, 26.2 and 26.3) B: Make sure assembly is level then secure with 2 (H1) 1/4 x 1-1/2” Hex Bolts (with lock washer, flat washer and t-nut) per side. (fig. 26.4) C: Tighten the top screws in all 4 Bench Legs.
  • Page 58 Step 27: Attach Slide Wall Inserts A: In the narrow opening of the End Wall (Upper Jamb should already be installed), place the MOD Side Lite from inside the assembly then attach to the wall and (2602) Upper Jamb with 14 (S0) #8 x 7/8” Truss Screws. (fig.
  • Page 59 Step 28: Slide Section Assemblies Part 1 Note: When installing Pan Bolts make sure to look at holes so bolts go through the side with the round recess and the lock nuts go through the side with the hexagonal recess. (fig. 28.3) A: Fit 2 TNR2 Slide Elbows together and attach with 8 (PB1) 1/4 x 3/4”...
  • Page 60 Step 28: Slide Section Assemblies Part 2 Note: When installing Pan Bolts make sure to look at holes so bolts go through the side with the round recess and the lock nuts go through the side with the hexagonal recess. (fig. 28.3) D: Attach TNR2 Slide Exit Top and the remaining TNR2 Slide Elbow together using 8 (PB1) 1/4 x 3/4”...
  • Page 61 Step 29: Attach Flange Assembly to Fort Part 1 A: With a helper place the Flange Assembly flush to the top opening in End Wall as shown in fig. 29.1 and the Epic Fort Guide, then pre-drill 1/8” (3.2 mm) pilot holes in (8935) Lower SL Insert for the 4 bottom mounting locations (approximate spots where circles are on figure 29.2), making sure the pre-drilled holes are a minimum of 1”...
  • Page 62 Step 29: Attach Flange Assembly to Fort Part 2 D: Place (8934) SL Gusset tight to (2768) Panel Floor, flush to the top of the bottom opening and attach to Flange Assembly with 2 (S6) #12 x 1” Pan Screws. (fig. 29.4 and 29.5) E: Pre-drill pilot hole with a 3/16”...
  • Page 63 Step 30: Attach Elbow Assembly to Flange Assembly Part 1 Note: When installing Pan Bolts make sure to look at holes so bolts go through the side with the round recess and the lock nuts go through the side with the hexagonal recess. Keep all bolts loose until further step.
  • Page 64 Step 30: Attach Elbow Assembly to Flange Assembly Part 2 Note: When installing Pan Bolts make sure to look at holes so bolts Fig. 30.5 go through the side with the round recess and the lock nuts go through the side with the hexagonal recess. Keep all bolts loose until further step.
  • Page 65 Step 31: Attach Elbow Assembly to Elbow Assembly Part 1 Note: When installing Pan Bolts make sure to look at holes so bolts go Fig. 31.1 through the side with the round recess and the lock nuts go through the side with the hexagonal recess. Keep all bolts loose until further step.
  • Page 66 DO NOT USE DO NOT USE USE IMAGE Step 31: Attach Elbow Assembly to Elbow Assembly USE IMAGE Part 2 Note: When installing Pan Bolts make sure to look at holes so bolts go through the side with the round recess and the lock nuts go through the side with the hexagonal recess. Keep all bolts loose until further step.
  • Page 67 Step 32: TNR Brace Assembly A: Attach (8965) TNR Upright to (8963) TNR Ground Brace with 1 (H8) 1/4 x 4-1/4” Hex Bolt (with lock washer, flat washer and t-nut) in the top hole. Make sure both boards are square then attach with 1 (S11) #8 x 2” Wood Screw.
  • Page 68 Step 33: Attach Elbow Assemblies and TNR2 Slide Support Note: When installing Pan Bolts make sure to look at holes so bolts go through the side with the round recess and the lock nuts go through the side with the hexagonal recess. Keep all bolts loose until further step.
  • Page 69 Step 34: Attach TNR Brace Assembly A: Use (8965) TNR Upright as a guide to judge the proper bolt location, remove the bottom pan bolt and nut. The bolt will no longer be needed, but keep the lock nut. (fig. 34.1 and 34.2) B: Attach the top of the TNR3 Post Mount to TNR2 Slide Clamp Ring using 1 (PB2) 1/4 x 1-1/4”...
  • Page 70 Step 35: Attach TNR2 Slide Exit to Exit Elbow Assembly A: Insert flange of Exit Elbow Assembly (slide elbow) into the slots on TNR3 Short Exit. (fig. 35.1) B: Rotate Slide Exit and use Quadrex Driver as a guide pin so the holes are aligned and attach with 5 (PB1) 1/4 x 3/4”...
  • Page 71 Step 36: Attach Exit End Assembly to Fort Fig. 36.1 Note: When installing Pan Bolts make sure to look Exit Elbow Top Slide Bolt Holes Assembly at holes so bolts go through the side with the round recess and the lock nuts go through the side with the hexagonal recess.
  • Page 72 Step 37: Attach Ground Stake to TNR Upright A: In the spot shown in fig. 37.1 drive 1 Rebar Ground Stake 13” (330 mm) into the ground against the (8965) TNR Upright. Be careful not to hit the washer while hammering stake into the ground as this could cause the washer to break off.
  • Page 73 Step 38: Attach Window Mesh - Large Part 1 A: From inside the assembly place the Window Mesh - Large over the upper opening in the Swing Wall, make sure the mesh is smooth and tight then attach all four corners to (2757) LT Post Assembly and (2758) RT Post Assembly with 4 (S5) #8 x 1/2”...
  • Page 74 Step 38: Attach Window Mesh - Large Part 2 B: Along each side measure 4-1/2” (114 mm) down from the top screws and the same dimension up from the bottom screws then attach 2 (S5) #8 x 1/2” Pan Screws (with #8 flat washer) per side to (2757) LT Post Assembly and (2758) RT Post Assembly.
  • Page 75 Step 39: Attach Window Mesh - Small A: From inside the assembly place the Window Mesh - Small over the upper opening in the Back Wall over the MOD 3-Pane Transom, make sure the mesh is smooth and tight then attach all four corners to (2771) End Post, (2602) Upper Jamb and (2769) Panel BT Frame with 4 (S5) #8 x 1/2”...
  • Page 76 For children 3 to 10 years of age; weight limit of 110 lbs. per child. Maximum number of users, Installation & Operating Instructions; other information is available at: www.KidKraft.com Contact us at: KidKraft Dallas, TX 75244 USA 1-800-933-0771 Tracking Number:...
  • Page 77 Step 41: Final Step A: Inspect entire play centre and insert hole plugs into all unused holes. See fig. 40.1 and 40.2 for an example. B: Check entire play centre for bolts protruding beyond t-nuts . Use extra Washers to eliminate this condition . Fig.
  • Page 78 Fort Guide 2655 Clock Set Front Wall (Step 1) 2665 (Step 11) 2655 Cafe Canopy Clock (Step 13) Cafe Front Wall Canopy (Step 18) Cafe Table Assembly Cafe Table Assembly (Step 12) 2665 (Step 17) MOD Side Lite 2602 TNR III (Step 29 -38) Tube Slide 8935...
  • Page 79 Fort Guide Window MOD 3-Pane Mesh - Transom Small 649A Back Wall (Step 1) Hand Grip MOD 3-Pane Transom (Step 12) Window Mesh - Small Hand (Step 40) Grip Rock Wall (Step 16) Assembly 649A (Step 12) Rock Wall Back Wall Assembly (Step 14 -15) Roof Assembly...
  • Page 80 NOTES NOTES...
