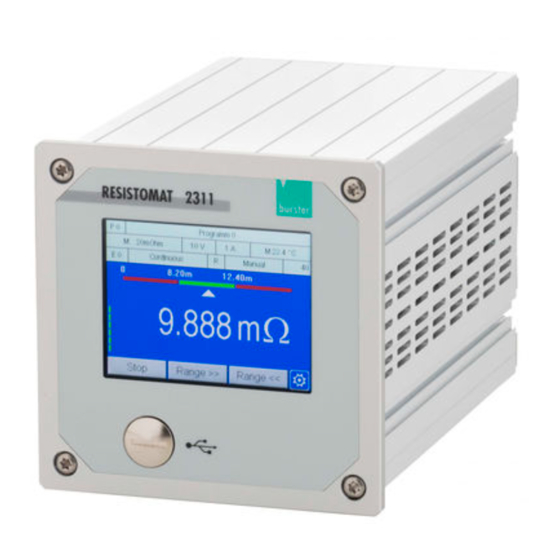

Burster 2311 Manual

Profinet
Hide thumbs Also See for 2311:
Table of Contents

Advertisement

Quick Links

Download this manual
© 2022
burster
präzisionsmesstechnik gmbh & co kg
Alle Rechte vorbehalten
Valid from:
11.04.2022
Applies to:
Resistomat 2x11 VXX03
OPERATION MANUAL
RESISTOMAT
PROFINET Manual
2x11
®
Manufacturer:
burster
präzisionsmesstechnik gmbh & co kg
Talstraße 1 - 5
D-76593 Gernsbach
Germany
Tel.: (+49) 07224 645-0
Fax.: (+49) 07224 645-88
E-Mail:info@burster.com
www.burster.com
4230-BA2311PROFINETEN-5999-041526
Postfach 1432
D-76593 Gernsbach
Germany

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2311 and is the answer not in the manual?

Questions and answers

Related Manuals for Burster 2311

Summary of Contents for Burster 2311

  • Page 1 OPERATION MANUAL RESISTOMAT 2x11 ® PROFINET Manual Manufacturer: © 2022 burster burster präzisionsmesstechnik gmbh & co kg präzisionsmesstechnik gmbh & co kg Alle Rechte vorbehalten Talstraße 1 - 5 Postfach 1432 D-76593 Gernsbach D-76593 Gernsbach Germany Germany Valid from: 11.04.2022 Tel.: (+49) 07224 645-0...
  • Page 2 Furthermore, burster assumes no liability for direct, indirect or incidental damages as well as consequential or other damages arising from the provision and use of the present documentation.
  • Page 3 of 41...

  • Page 4: Table Of Contents

    Table of contents For your safety ............................6 Symbols used in the instruction manual..................... 6 1.1.1 Signal words ........................6 1.1.2 Pictograms .......................... 6 Symbols and precautionary statements on the instrument ..............7 1.2.1 Conventions used in the instruction manual ............... 7 Abbreviations ............................
  • Page 5 6.2.3 PLC outputs byte 3 ......................22 6.2.4 PLC outputs byte 4 ......................22 Acyclic PROFINET services ........................23 Instrument configuration ........................23 7.1.1 General settings (Slot 30) ....................23 7.1.2 Display update and fault indication (Slot 31) ..............27 7.1.3 Program Selection/Renaming &...

  • Page 6: For Your Safety

    For your safety The following symbols on the RESISTOMAT 2x11 and in this operation manual warn of hazards. ® Symbols used in the instruction manual 1.1.1 Signal words The following signal words are used in the operation manual according to the specified hazard classification. DANGER High degree of risk: indicates a hazardous situation which, if not avoided, will result in death or serious injury.

  • Page 7: Symbols And Precautionary Statements On The Instrument

    Symbols and precautionary statements on the instrument Symbol Description Hazard warning Disconnect the power plug before opening – Follow safety instructions – Professional servicing only Warning ! To prevent Warning of electrical shock hazard electrical shock do Do not open the unit. not open device.

  • Page 8: Introduction

    Introduction General safety instructions DANGER Warning concerning installation of the device and software Installation of the device and the interface must be carried out by qualified personnel only. Qualified personnel meets the following requirements: • You are familiar with the safety designs used in automation engineering, and understand how to deal with them in your capacity as configuration engineer.

  • Page 9: Intended Use

    NOTICE • Install the power, signal and sensor cables so as to prevent electromagnetic interference from impairing operation of the equipment. • Proper transportation, storage, installation and assembly plus careful operation and maintenance are essential for trouble-free and safe operation of the equipment. •...

  • Page 10: Technical Data

    0xF600 (Generic Device) You will find further information about PROFINET at www.profibus.com. Model 2x11 device data Bus connector RJ45 GSD file GSDML-V2.31-BURSTER-2x11-20210501-155500.xml Electrical safety Reverse voltage protection Air clearance/leakage paths To DIN EN 61010-1:2011 Electrical isolation Between fieldbus and internal electronics...

  • Page 11: Electromagnetic Compatibility

    EN 61000-3-3:2013 Notes on CE labeling burster equipment carrying the CE mark meets the requirements of the EU directives and the harmonized European standards (EN) cited therein. The EU declarations of conformity are available to the relevant authorities as specified in the directives. A copy of the declaration of conformity is included in the relevant equipment documentation.

  • Page 12: Installation

    Please note that you can download various documents such as installation guidelines and specifications about PROFINET at PI: www.profibus.com. Connection of fieldbus lines burster devices with a PROFINET option have two RJ 45 connectors for the fieldbus connection. Meaning of LED states Blinking...

  • Page 13: Configuration Of A Profinet Network

    Configuration of a PROFINET network Diagram 2: Configuration of a PROFINET network of 41...

  • Page 14: Configuration Menu In Resistomat ® 2X11

    Configuration menu in RESISTOMAT 2x11 ® To access the menu Start in measurement mode. After power on the measurement mode is always set. The display will look differently dependent on your settings or your last measurements. You can go to "Configuration Main Menu" in measurement mode by pressing the settings button. 1.
  • Page 15 3. Scroll down to "PROFINET" menu: of 41...
  • Page 16 Parameters PROFINET: 2x11 responds solely to control signals (inputs) on the PROFINET interface PLC: 2x11 responds solely to control signals (inputs) on the PLC I/O Control via interface. When controlled via PLC I/O, data from device is still transferred in the cyclical PROFINET protocol SW-Version of Interface Version of the field bus card software...

  • Page 17: Profinet

    GSDML file Resistomat equipment with the PROFINET option is supplied with a CD. This disk includes the device description file GSDML-V2.35-BURSTER-RESISTOMAT-2311-20211019 (GSDML file). This GSDML file describes the physical properties of the device. The structure, contents and encoding of this device description data is standardized so that any Profinet devices can be configured using configuration tools from various manufacturers.

  • Page 18: Data Conversion

    Data conversion 5.3.1 Description of the data formats in this manual The terms PLC inputs and PLC outputs refer to the 2x11 unit. These terms are reversed when referred to the Controller. The function of the PLC-In / PLC-Out bits is identical to the parallel PLC I/O ports on the unit itself and can be found in the RESISTOMAT 2x11 operating manual.

  • Page 19: Profinet Data Protocol

    PROFINET data protocol PLC inputs – Transfer from controller to device Four bytes of PLC-In data for the 2x11 are always transferred from the PROFINET Controller to the RESISTOMAT 2x11. These bits have the same function as the parallel PLC inputs to the 2x11 unit. ®...

  • Page 20: Plc Inputs Byte 3

    6.1.3 PLC inputs byte 3 PLC inputs Byte 3 (Controller -> Device) Channel number - bit 0 Bit 0 LSB Channel number - bit 1 Bit 1 Channel number - bit 2 Bit 2 Channel number - strobe Bit 3 Input AUX0 (reserved) Bit 4 Input AUX1 (reserved)

  • Page 21: Plc Outputs - Transfer From Device To Controller

    PLC outputs – Transfer from device to controller The data refers to the PLC output of the RESISTOMAT 2x11. The data described here is the data ® transferred from the 2x11 to the PROFINET controller. The function of the PLC-In / PLC-Out can be found in the 2x11 operation manual for the unit. 6.2.1 PLC outputs byte 1 PLC outputs Byte 1 (Device ->...

  • Page 22: Plc Outputs Byte 3

    6.2.3 PLC outputs byte 3 PLC outputs Byte 3 (Device -> Controller) Current channel number - bit 0 Bit 0 LSB Current channel number - bit 1 Bit 1 Current channel number - bit 2 Bit 2 Current channel number - strobe Bit 3 Output AUX0 (reserved) Bit 4...

  • Page 23: Acyclic Profinet Services

    • Complete device configuration • Transfer of component/worker/job data for logging • Retrieval of measurement values and related analytical data For further information and support for Siemens PLC integration, please contact our service department at service@burster.com. Instrument configuration 7.1.1 General settings (Slot 30)
  • Page 24 Channel + Channel - End Load Range + Range - Measurement menu function key Start/Stop definition F2 Meas. program + Meas. program - Channel + Channel - End Load Range + Range - Measurement menu function key Start/Stop definition F3 Meas.
  • Page 25 Access level: Temp. Access DENIED Compensation Access GRANTED Access level: Pt100 Access DENIED Access GRANTED Access level: Volt. Access DENIED Input Access GRANTED Access level: Disp. Access DENIED Meas. Access GRANTED Access level: Select Access DENIED Channel Access GRANTED Access level: Access DENIED Assign Channel Access GRANTED...
  • Page 26 Slot Index Description Value Meaning of value Type OUT_CHAN_STROBE OUT_CHAN0 OUT_CHAN1 OUT_CHAN2 OUT_AUX0 OUT_AUX1 OUT_AUX2 OUT_AUX3 Slot 30, Indices 52 to 61 (Assignment adjustable PLC outputs 2 to 11) Slot Index Description Value Meaning of value Type adj. see index 31 PLC output 2 adj.

  • Page 27: Display Update And Fault Indication (Slot 31)

    Slot Index Description Value Meaning of value Type SPS_IN_WHL_I1 SPS_IN_WHL_I2 SPS_IN_WHL_I3 Slot 30, Indices 64 to 70 (Assignment adjustable PLC inputs 2 to 9) Slot Index Description Value Meaning of value Type adj. see index 42 PLC input 2 adj. PLC input 3 see index 42 adj.

  • Page 28: Program Selection/Renaming & Comparator Statistics Reset (Slot 32)

    Slot Index Description Value Meaning of value Type Device fault status No fault 0x00000000 PREFIX addressing fault 0x00000001 Enquiry received in Device 0x00000002 mode Block check error 0x00000004 Command fault 0x00000008 Parameter error 0x00000010 Timeout Receive Timer 0x00000020 Timeout Response Timer 0x00000040 Invalid ! or ? 0x00000080...

  • Page 29: Channel Assignment (Slot 33)

    Slot Index Description Value Meaning of value Type Note: Value entered into index 10 is adopted 7.1.4 Channel assignment (Slot 33) Slot Index Description Value Meaning of value Type Not possible 1 - 9 Reserved Assign channel 0 to program 0 …...
  • Page 30 Slot Index Description Value Meaning of value Type 2 kOhm from indices 12 - 13 20 kOhm are applied through index 14 Maximum range in 200 mOhm automatic range mode 2 Ohm 20 Ohm Note: The settings 200 Ohm from indices 12 - 13 2 kOhm are applied through 20 kOhm...

  • Page 31: Copy/Initialize Measurement Programs (Slot 39)

    7.1.6 Copy/initialize measurement programs (Slot 39) Slot Index Description Value Meaning of value Type Not possible 1 - 9 Reserved Meas. program 0 ... 31 number source Note: The settings from indices 10 - 12 are being adopted through indices 13 - 14 Meas.

  • Page 32: Data-Logging (Slot 41)

    Slot Index Description Value Meaning of value Type USB-Logging on/off Logging of timestamp Logging of numerator Logging of order sheet Delta t – Hours 0 … 99 Note: The settings from indices 14 - 16 are being adopted through index 17 Delta t –...
  • Page 33 Slot Index Description Value Meaning of value Type Record only OK values Record only NOK values Record every n. value Record if time > Delta t Record if | value(i) – value(i-1) | >= Delta R N. Value 2 … 200 Delta t –...

  • Page 34: Comparator (Slot 42)

    Slot Index Description Value Meaning of value Type 128: First Value after Start of Measurement Clear data logger EVENT! Writing an arbitrary byte initiates action 7.1.9 Comparator (Slot 42) Slot Index Description Value Meaning of value Type Not possible 1 - 9 Reserved Comparator on/off Number of limits...

  • Page 35: Max / Min Values (Slot 43)

    Slot Index Description Value Meaning of value Type Number of values > limit_<< and < limit_< If 2 limits: < Limit_< Number of values > limit_< and < limit_> If 2 limits: > limit_< and < limit_> Number of values > limit_>...

  • Page 36: Temperature Compensation (Slot 45)

    Slot Index Description Value Meaning of value Type Coefficient B of Pt100 -5.0E-6 … Float value formula 5.0E-6 Float according to IEEE754 Resets the coefficients Writing an arbitrary byte EVENT! to their default values initiates action 7.1.12 Temperature compensation (Slot 45) Slot Index Description...

  • Page 37: Cooling Curve (Slot 47)

    7.1.14 Cooling curve (Slot 47) Slot Index Description Value Meaning of value Type Not possible 1 - 9 Reserved Cooling curve On/Off Interval time 1 … 100 Settling time 1 … 100 Measuring end time 10 … 100000 End load EVENT! Writing an arbitrary byte initiates action...
  • Page 38 Slot Index Description Value Meaning of value Type Logical OR combined status: Measurement status 0: No Error 1: Measurement range exceeded 2: Current overflow 4: Voltage overflow 8: Temperature compensation error 16: PT100 Measurement error 32: Cable break Result of Evaluation String STR64 Delta % of Set Point...

  • Page 39: Record Errors/Events In The Logfile (Slot 49)

    7.1.16 Record errors/events in the logfile (Slot 49) Slot Index Description Value Meaning of value Type Not possible 1 - 9 Reserved Index of last entry 0 … 255 Entry index 0 … 255 Note: the actual read is performed at index 12 Log entry Format: entry code*,program String...

  • Page 40: General Purpose (Slots 60-70)

    7.1.17 General Purpose (Slots 60-70) Slot Index Description Value Meaning of value Type Not possible 1 - 9 Reserved Generic Value 1 EVENT! Writing an arbitrary byte initiates action Generic Value 2 Writing an arbitrary byte EVENT! initiates action Generic Value 3 Writing an arbitrary byte EVENT! initiates action...

  • Page 41: Error Codes

    General Purpose (Slots 61-70) See slot 60. Error Codes Error code Description PNIO_S_OK 0x00000000 No error, write/read successful READ_APPL_ERROR 0xDE80A000 Data could not be read from the device. READ_ACCESS_INVALIDINDEX 0xDE80B000 This index is not specified READ_ACCESS_INVALIDSLOT_SUBSLOT 0xDE80B200 Reading from this slot is not supported Note: Only subslot 1 is supported PNIO_E_IOD_READ_ACCESS_DENIED 0xDE80B600...
