Summary of Contents for Russound UNO-TS2
- Page 1 UNO-TS2 Touchscreen Instruction Manual...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS Safety Instructions through the ventilation openings. 8. Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat. 9. Power Sources - The appliance should be connect- “WARNING”... -
Page 3: Table Of Contents
Zone and Controller ID ..................23 Factory Initialization ..................23 Diagnostics ....................24 Firmware Update ....................25 Technical Specifications..................26 Warranty......................27 Note: The following minimum firmware revisions are required for use with the UNO-TS2: CAV6.6 Rev. 3 2.01.16 or higher CAV6.6 Rev. 4 3.01.10 or higher CAM6.6 1.01.05 or higher... -
Page 4: Introduction
Channel, Artist, Song Title, Genre and more, all in real time. It supports custom names for presets, banks, themes and sources for a truly personal touch. The UNO-TS2 makes a great addition to an existing RNET system, as it can be installed into an exist- ing double-gang junction box. -

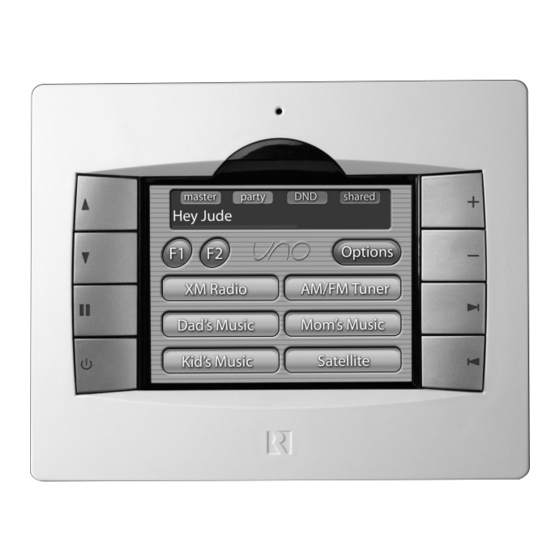

Page 5: Front Panel And Home Screen
USER GUIDE Front Panel and Home Screen IR RECEIVER - Receives IR signals from source PREVIOUS - Go to previous selection for selected and SRC2 remote controls, and passes them to source the controller and source equipment POWER - Turn room power on/off. Press and hold TOUCHSCREEN - Full color resistive touchscreen for system all on/all off with multi-sound feedback. - Page 6 USER GUIDE Home Screen Home Screen Fields the screen and a “harp” sound is heard. These presets can be selected at any time to recall 1. Display Window source selection, volume, favorite channel, disc, At the top of the screen, the display window etc.
-
Page 7: Source Screens Common Features
USER GUIDE Source Screens Common Features and source is in the Do Not Disturb mode. When in this mode, other rooms are prevented from changing the Although there are different screens for different state of the source (change channels, etc.). The DND sources, they do share some common features. -
Page 8: Source Screen Examples
USER GUIDE Source Screen Examples The UNO-TS2 offers up a new screen for each After the installer has configured the sources in source that is configured in the RNET system. A the RNET system and in the UNO-TS2, you will... -
Page 9: Controlling The Russound Tuner
USER GUIDE Controlling the Russound Tuner The UNO-TS2 offers an expanded view of source channel category. Another screen allows you to information and selections when used with the directly enter a station’s frequency or perform a Russound Tuner. The tuner screens show bank... - Page 10 AM and FM from the touchscreen. 2 of 3 Example of numeric station/channel selection screen for Russound Tuner AM/FM Tuner Advanced Features 107.1 MHz FM The AM/FM tuner advanced controls are accessed from the “3 of 3” screen. Select Local or Distant reception and stereo or mono signal.
-
Page 11: Controlling The Russound Sms3 Media Server
USER GUIDE Controlling the Russound SMS3 Media Server The UNO-TS2 offers an expanded view of source name, song title and album name. Linked information and selections when used with the screens show more detailed song information Russound SMS3 Media Server in an RNET sys- and lead to search fields to choose music by tem. -
Page 12: Controlling The Russound Sms3 Media Server
USER GUIDE Controlling the Russound SMS3 Media Server Media Server Music Request Screen by Theme The Request Music screen for the media server lets you request music a variety of ways: by by Genre Artist, by Album, by Genre and more. Press the desired item to proceed to that category’s selec-... -
Page 13: Controlling An Ipod Using The Russound Ibridge Dock
USER GUIDE Controlling an iPod using the Russound iBridge Dock The UNO-TS2 offers an expanded view of iPod song title and album name. Linked screens show song information and selection when used with more detailed song information and lead to the Russound iBridge Dock to control an iPod. -
Page 14: Controlling An Ipod Using The Russound Ibridge Dock
USER GUIDE Controlling an iPod using the Russound iBridge Dock iPod (iBridge Dock) Selection Screen Each “request” selection screen shows the first four or five items in the list selected. The scroll up/down arrows on the left of the screen allow search through the list. -
Page 15: Setting Room Preferences
USER GUIDE Setting Room Preferences Options Screen Options The Options button on the home screen brings up a variety of room and screen setting options and touchscreen adjustments. CAV front A/V - This button selects as a source the component connected to the CAV6.6 front A/V connection. -
Page 16: Setting Room Preferences
USER GUIDE Setting Room Preferences Sound Control Screen Treble:+2 The Sound Control button on the Options screen brings up a variety of room setting options. Bass - Adjust the bass level for the room Balance - Adjust the left-to-right speaker balance for the room Treble - Adjust the treble for the room Loudness - Turn loudness (more bass, fuller... -
Page 17: Installer Guide Uno-Ts2 Overview
INSTALLER GUIDE UNO-TS2 Overview UNO-TS2 Overview for Installers Note: The following minimum firmware revisions are required for use with the UNO-TS2: CAV6.6 Rev. 3 2.01.16 or higher CAV6.6 Rev. 4 3.01.10 or higher CAM6.6 1.01.05 or higher CAM Internal AM/FM Tuner 1.01.01 or higher... -
Page 18: Rj-45 Connections
CAT-5 cable’s eight conductors. Punchdown terminals require the use of a punchdown tool. Attach the CAT-5 cable to the 110-punchdown terminal on the UNO-TS2 touchscreen as shown, matching the conductor colors to the connection color guide. The keypad will not operate properly if the terminations deviate from the required connection order. -
Page 19: Ir Receiver Connection
INSTALLER GUIDE UNO-TS2 IR Receiver Connection The UNO-TS2 has an External IR Receiver In ter- receiver model’s manual for the specific wire minal for connecting an external IR Receiver needs. such as the Russound 858, SaphIR 862 Eye, or Use 2 twisted pair wire with one pair connecting SaphIR 860 Phantom. -
Page 20: Controller Connections
UNO-TS2 Touchscreen Controller Connections For One UNO-TS2 per Controller An RNET controller (CAV6.6, CAM6.6) supports controller, directly connected to the UNO System one UNO-TS2 and up to five UNO keypads per Keypad Ports located on the rear panel. UNO-TS2 UNO-S1... -
Page 21: Installation
This is larger than a typical light switch cover, so additional space may be required. For best viewing and usage, the UNO-TS2 Size of standard 2-gang box 4.0” W x 3.81” H should be mounted at thermostat height, or about 59”... -
Page 22: Configuring Sources
Dock (iPod) iPod (Bridge) source connected to source 1 on the controller. 1. The UNO-TS2 must be connected to the con- The Name field is automatically configured from troller and both must be powered on. Wait 20 the controller. -
Page 23: About
Zone Number and/or Controller ID is changed on the UNO-TS2. Zone and Controller ID - On this screen, enter the touchscreen’s zone number the UNO-TS2 is About this keypad Zone and Controller IDs Firmware Version: X.XX Screens Version: X.XX.XX... -
Page 24: Diagnostics
INSTALLER GUIDE Other Installer Setup Functions Diagnostics - This series of screens provides Hard Button Test - This screen is a tool for access to the diagnostics to provide some sim- testing the hard buttons on the sides of the ple testing of the touchscreen’s performance. -
Page 25: Firmware Update
INSTALLER GUIDE Other Installer Setup Functions Firmware Update Firmware Update There may be future updates to the UNO-TS2 firmware. Updates will be available online through the Document Center at www.russound.com , under RNET Systems. Before starting the update procedure, download updates to a PC and con-... -
Page 26: Technical Specifications
TECHNICAL SPECIFICATIONS Technical Specifications Power Requirements: 12VDC @ 350mA CAT-5 Connection: 110 punchdown Dimensions: Inside J-Box 3.675"W x 1.150"D x 2.850"H (9.3 x 2.9 x 7.2 cm) Front Panel 5.750”W x 1.0”D x 4.650”H (14.6 x 2.5 x 11.8 cm) Fits UL/CSA Approved Double-gang Junction Box Weight: 1 lb 2.5 oz. -
Page 27: Warranty
In these cases, repairs will be made on the basis or the retail value of the parts and labor. To return for repairs, the unit must be shipped to Russound at the owner's expense, along with a note explaining the nature of service required. - Page 28 Apple Computer, Inc., tel 603.659.5170 registered in the U.S. and other countries. fax 603.659.5388 All trademarks are property of their respective owners. e-mail: tech@russound.com Russound is not responsible for typographical errors or omissions. www.russound.com 28-1163 Rev. 3 04/03/06...
