Aruba AP-635 Installation Manual

Aruba 630 Series Campus Access Points
Installation Guide
The tri-radio Aruba 630 Series access points support the IEEE 802.11ax WLAN standard in the 6GHz band (Wi-Fi
6E) as well as the 5GHz and 2.4GHz bands, delivering high performance and capacity with MIMO (Multiple-Input,
Multiple-Output) and OFDMA (Orthogonal Frequency Division Multiple Access) technologies, while also
supporting IEEE 802.11a/b/g/n/ac wireless services.
Package Contents
Aruba 630 Series Campus Access Point (with a pre-installed mount bracket)

The AP mount bracket attaches to a variety of mount kits (sold separately).
Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton, including
the original packing materials. Use these materials to repack and return the unit to the supplier if needed.
Hardware Overview
The following sections outline the hardware components of the 630 Series access points.
Figure 1
LEDs
The LED displays located on the front panel of the access point indicate the following functions:
System Status LED
The System Status LED indicates the operating condition of the access point, See
Rev05 | October 2021

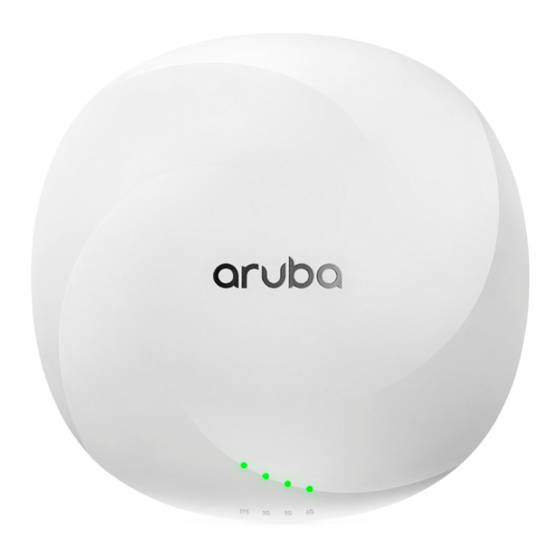

AP-635 Front View
S 2
YS
5 6
GHz GHz GHz
Table 1.
1
