Aruba AP17 Installation Manual

Aruba Instant On AP17 Access Point
Installation Guide
The Aruba Instant On AP17 access points support IEEE 802.11ac standards for high-performance WLAN, and are
equipped with two radios, which provide network access and monitor the network simultaneously. Multiple-in,
Multiple-out (MIMO) technology allows these access points to deliver high-performance 802.11n 2.4 GHz and
802.11ac 5 GHz functionality, while also supporting 802.11a/b/g wireless services.
Package Contents
1 x AP17 access point

1 x Wall mount bracket (solid surface)

1 x Cable gland

1 x Copper lug

1 x M4x6 screw

1 x M6x45 screw

Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton,
including the original packing materials. Use these materials to repack and return the unit to the supplier if
needed.
Hardware Overview
Figure 1
Rev 02 | December 2019

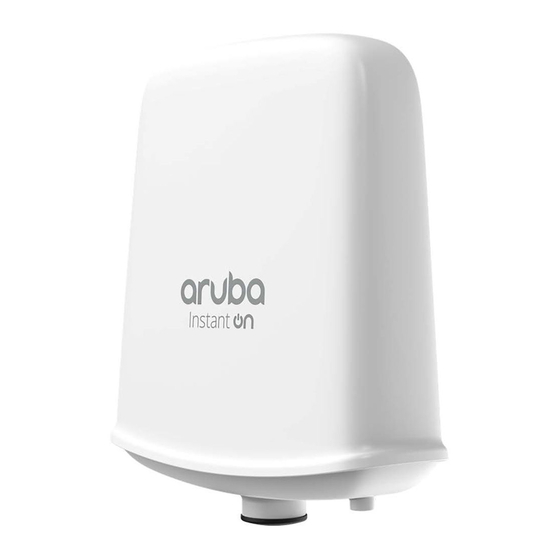

AP17 Access Point
Reset button and LED Air Vent
Grounding Point
Ethernet Port
1
