Summarization of Contents
Safety Instructions
Safety Warnings and Cautions
Details safety precautions divided into warnings for serious injury/death and cautions for equipment damage.
Chapter I Product Description
Product Overview
Provides a consistent range of cost-effective and reliable network cameras for various requirements.
Key Features
Lists the main features of the PTZ Network Cameras, including zoom, pan/tilt, presets, and compression.
Hardware Overview

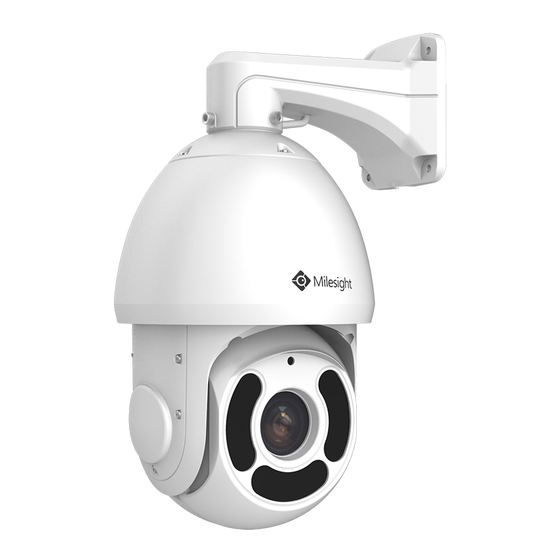

Illustrates the hardware components of the Speed Dome and Mini PTZ Bullet network cameras.
Connect to Alarm Interface
Explains how to connect external alarm devices to the camera's interface.
Connect Waterproof Connector
Provides step-by-step instructions for connecting the waterproof network cable connector.
System Requirements
Specifies the minimum operating system, CPU, RAM, and browser requirements for using the camera.
Chapter II Network Connection
Setting Camera over LAN
Describes methods for connecting the camera to a network via a switch or router.
Connect Camera to PC Directly
Explains the direct connection method between the camera and a PC for viewing.
Connect via Switch or Router
Details setting up the network camera connection via a switch or router.
Dynamic IP Connection
Guides on connecting the network camera via a router using dynamic IP addressing.
Chapter III Accessing the Network Camera
Assigning IP Address
Explains the necessity of assigning an IP address for camera accessibility.
Assign IP Address Using Smart Tools
Details how to use Milesight Smart Tools for assigning IP addresses to multiple cameras.
Assign IP Address via Browser
Provides steps to change the camera's IP address using a web browser.
Access from Web Browser
Describes accessing the camera using standard web browsers.
Access with Plugin
Explains how to access the camera via Internet Explorer using a plugin.
Access without Plugin
Details how to preview video using Plugin-Free mode in compatible browsers.
Access from Milesight VMS
Guides on accessing the camera using Milesight VMS (Video Management Software).
Chapter IV System Operation Guide
Live Video
Explains how to view live video after logging into the camera's web GUI.
Live View Page Operations
Describes the functions and buttons available on the live view interface.
3D Positioning
Allows users to control PTZ by clicking and dragging on the live view.
Set / Call Preset / Patrol / Pattern
Covers setting and calling predefined positions, patrols, and patterns for PTZ cameras.
Playback
Explains how to view recorded video files stored on SD cards.
Local Settings
Allows customization of record file length and storage path.
Basic Settings - Video
Configures stream parameters like codec, frame rate, and bitrate for different network environments.
Basic Settings - Image
Covers image display, enhancement, and day/night settings.
Basic Settings - Audio
Enables audio functions for hearing sound from or transmitting sound to the camera.
Basic Settings - Network
Covers network configuration including TCP/IP, HTTP, RTSP, UPnP, DDNS, Email, FTP, VLAN, SNMP, and 802.1x.
Network - TCP/IP
Configures IP address, subnet mask, gateway, and DNS server settings.
Network - HTTP
Enables and configures HTTP and HTTPS for web access and SSL certificates.
Network - RTSP
Configures RTSP port, playback port, RTP packet options, and multicast settings.
Network - UPnP
Enables Universal Plug and Play for seamless network device connection.
Network - DDNS
Allows camera access via domain names by managing IP address updates.
Network - Email
Configures SMTP server settings for sending email notifications with alarm video files.
Network - FTP
Configures FTP server settings for uploading alarm video files.
Network - VLAN & PPPoE
Covers Virtual LAN configuration and PPPoE auto dial-up for internet access.
Network - SNMP
Configures SNMP for getting camera status and managing it remotely.
Network - 802.1x
Enables IEEE 802.1X for securing camera data and user authentication.
Date & Time Settings
Allows setting the system's current time, time zone, and NTP synchronization.
Advanced Settings
Covers advanced features including Alarm, Storage, Security, SIP, Smart Event, PTZ, LPR, and Logs.
Alarm Configuration
Details configuration for motion detection, alarm actions, and notifications.
Motion Detection
Enables and configures motion detection sensitivity, regions, and schedules.
Storage Management
Covers SD card and NAS storage options, including formatting and recycle settings.
Security Configuration
Manages user privileges, security questions, account management, and access lists.
SIP Configuration
Configures SIP parameters for multimedia communication sessions and IP direct calling.
Smart Event Configuration
Enables and configures various video content analysis events like region entrance/exiting.
Region Entrance Detection
Helps protect areas from threats by triggering alarms when objects enter selected regions.
Region Exiting Detection
Ensures monitored objects do not exit an area, triggering alarms if they do.
Advanced Motion Detection
Filters out noise from motion detection, triggering alarms for actual object movements.
Tamper Detection
Detects possible tampering like unfocused or obstructed cameras and alerts staff.
Line Crossing Detection
Triggers events when cameras detect objects crossing a defined virtual line.
Loitering Detection
Triggers alarms when objects remain in a defined area for a specific period.
Human Detection
Identifies whether an object is human and tracks their movement.
People Counting
Counts people entering or exiting a monitored area during a set period.
PTZ Settings
Configures Pan/Tilt/Zoom functions, including basic parameters, auto home, and limits.
PTZ Basic Settings
Covers PTZ configuration for Pan/Tilt/Zoom, including basic parameters.
PTZ OSD & Preset
Configures PTZ OSD parameters and manages preset positions.
PTZ Speed & Patrol
Sets PTZ speed for presets and configures patrol routes.
PTZ Focus & Auto Home
Manages PTZ focus modes and configures the auto home function.
PTZ Limit & Initial Position
Programs PTZ movement limits and sets the initial camera position.
PTZ Privacy Mask
Enables privacy masking to cover specific areas on the live video.
PTZ Scheduled Tasks & Auto Tracking
Configures automatic PTZ actions based on schedules and enables auto object tracking.
PTZ Config Clear
Allows clearing various PTZ configurations like presets, patrols, and schedules.
PTZ RS485 Control
Configures the RS485 serial port for controlling Speed Dome PTZ functions.
LPR Settings
Configures License Plate Recognition settings, including license management and modes.
LPR License and Area Setup
Enables LPR, selects areas for detection, and sets up license plate lists.
LPR List Management
Manages black and white lists for license plates and searches for detected plates.
LPR Black List Mode
Configures alarm actions when license plates detected are marked as 'black'.
LPR White List Mode
Configures alarm actions when license plates detected are marked as 'white'.
LPR Visitor Mode
Defines alarm responses for license plates not marked as 'black' or 'white'.
LPR Logs
Displays and exports LPR detection results, including time, screenshot, and license plate.
System Logs
Logs information about time and IP accessing the camera through the web interface.
System Information
Displays all information about the camera's hardware and software versions.
Maintenance - System Upgrade
Guides on upgrading the camera's software version and performing maintenance.
Maintenance - Auto Reboot
Allows setting a schedule for the camera to automatically reboot.
Chapter V Services
Technical Support Information
Provides contact details for technical support, including email, web, and regional offices.
