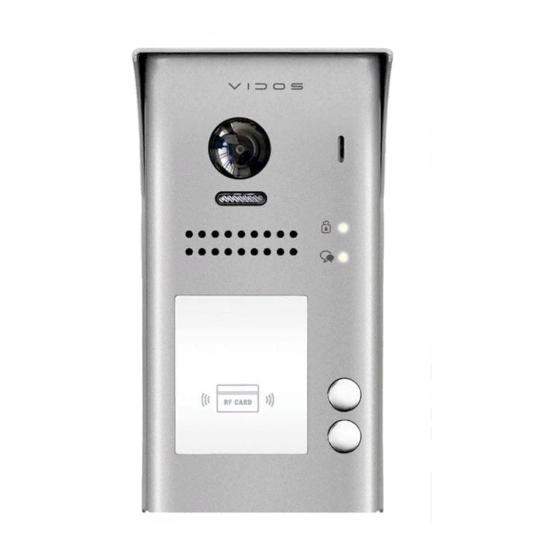

- Page 1 USER’S MANUAL 2 wire system video door intercom S1102A S1103A S1101A S1104A S1202A S1203A S1204A S1201A Door station W.20180828ENG...
- Page 2 CHRACTESISTICS OF THE SYSTEM VIDOS is a state-of-the-art solution characterised by its exceptional ease of configuration and installation. The system operation is based on the simplicity of connection through 2 non-polarity wires only.
-
Page 3: Table Of Contents
CONTENTS PARTS AND FUNCTIONS ..................3 Part Names......................3 Mounting .........................4 BASIC FUNCTIONS ....................6 Unlock Operations ....................6 Fisheye Camera .....................6 External Motion Detection ..................6 SETUP INSTRUCTIONS ..................7 Functions Setting Up ....................7 Setting Door Station Address .................8 Setting Door Station Calling Mode .................8 Setting Camera Resolution.................. -
Page 4: Parts And Functions
PARTS AND FUNCTIONS Part Names Surface mounted: S1101A/S1102A/S1103A/S1104A [10] [11] [12] [13] Flush mounted: S1201A/S1202A/S1203A/S1204A [14] [11] [12] [13] [1] Microphone [5] Nameplate [10] Rainy cover [2] UNLOCK indicator [6] Front panel [11] Mounting hook [3] CALL indicator [7] Speaker [12] Connection port [4] Call button [8] Night view LED... -
Page 5: Mounting
PARTS AND FUNCTIONS Mounting The installation height is suggested to 145~160cm. Surface mounted: S1101A/S1102A/S1103A/S1104A The distance between the top of main unit Rainy cover and rain cover should be not less than 3mm. Main unit Rainy cover Main unit AcDbMLeader (ACDB_MLEADER_CLASS) AcDbMLeader (ACDB_MLEADER_CLASS) 1. - Page 6 PARTS AND FUNCTIONS Terminal description Lock Control Jumper 1 2 3 PIR Motion Detector Connect Port P L S + L 1 L 2 Main Connect Port Lock Control Jumper: To select the lock type. Motion Detector Connect Port: To connect external PIR motion detector with DC12V voltage and load up to 350mA..
-
Page 7: Basic Functions
BASIC FUNCTIONS Unlock Operations Unlocking of ID Card When the registered user card has been shown to ID card window, the UNLOCK indicator lights up, the buzzer sounds,and the electric door strike is unlocked. • If show the authorized user card,the buzzer will sound of beep+,and the UNLOCK indicator will light up. -
Page 8: Setup Instructions
SETUP INSTRUCTIONS Functions Setting Up This section explains the settings of each function,please refer to the following table: To perform the settings for the function LED_UNLOCK you want,you should move away the metal LED_TALK front panel. Please refer to the sketch KEY_SET KEY_4 map. -
Page 9: Setting Door Station Address
SETUP INSTRUCTIONS Setting Door Station Address Total 4 addresses can be confi gured. It can be modifi ed either before or after installation. 0 is default, to change the setting, please follow the steps: ID=0,1 door station ID=1,2 door station ID=2,3 door station ID=3,4... - Page 10 SETUP INSTRUCTIONS Each call button will respond different addresses when set in different calling mode. Refer to the followings for more informations. 1.Standard calling mode(Address range 01-04 by default) Call buttonA: call the monitor with address 01 by default. Call buttonB: call the monitor with address 02 by default. Call buttonC: call the monitor with address 03 by default.
-
Page 11: Setting Camera Resolution
SETUP INSTRUCTIONS Setting Camera Resolution The resolution of the camera can be adjusted at any time, that means the quality of image on screen can be set to high or low. High resolution is default, to change the setting, please follow the steps: In standby mode, press Press KEY_2 button to set the Press KEY_2 button again... -
Page 12: Setting Unlock Time
SETUP INSTRUCTIONS Setting Unlock Time By default, the unlock time is 1s, but it can be changed,the setting range is 1s~99s. Follow the steps: In standby mode, press Press and hold on KEY_2 KEY_SET button three button. The time you holding times . -
Page 13: Setting Night View Led Illumination Mode
SETUP INSTRUCTIONS Setting Night View LED Illumination Mode There are 3 working modes for night view LED indicator, Normally on ,Normally off and Auto . Auto is default, to change the setting, please follow the steps: In standby mode, press Press KEY_4 button to set Press KEY_4 button again Press KEY_4 button again... -
Page 14: Setting Image Display Mode
SETUP INSTRUCTIONS Setting Image Display Mode Please know that this setting is only effective for monitors which does not support man- ual operation for pan-tilt. When the monitor being called When door station calls monitor,the image will be displayed on screen,there are 3 modes for im- age displayed, Alternate switching mode,Zoom mode and Full screen mode. -
Page 15: Registering Id Card
SETUP INSTRUCTIONS Full screen mode: When answering the call, the image will be displayed on Zoom mode for 5 seconds, then switch to Full screen to remind to enter talking status. If set to forbidden mode, there is no image switching reminder at any image display mode. Activated is default, to change the setting, please follow the steps: In standby mode, press Press KEY_3 button to... - Page 16 SETUP INSTRUCTIONS When power on in 10s,press Press KEY_2 button. Show the first card to ID Show the second card to ID and hold on KEY_SET button card window, set the card card window, set the card of for 3s. of MASTER CARD ADD .
- Page 17 SETUP INSTRUCTIONS Deleting User Cards: Show the master card of Show user cards to be Show the master card of MASTER CARD DELETE to deleted in sequence. MASTER CARD DELETE ID card window in standby. again to exit. UNLOCK Indicator:ON UNLOCK Indicator:Blink one time UNLOCK Indicator:OFF TALK Indicator:OFF...
-
Page 18: Wiring
WIRING Connecting Electric Lock Door Lock Controlled with Internal Power 1 2 3 1.Electronic lock of Power-on-to-unlock Jumper position on 2&3 type should be used. PL S+ S- 2.The door lock is limited to 12V, and hold- ing current must be less than 250mA. 3.The jumper should be placed on position 2 and 3 before connecting. -
Page 19: Connecting Basic One-To-One
WIRING Connecting Basic One-to-one ID=0 Code=00, DIP6=on 100~240VAC P26/40 RF CARD BUS(IM) BUS(DS) L1 L2 PL S+ S- DIP Switches 1 2 3 4 5 6 • The door station work in Standard mode in this situation. Refer to Page 9 in detail. •... -
Page 20: Connecting Multi Monitors
WIRING Connecting Multi Monitors Basic IN-OUT Wiring in Standard Mode Setting the address of monitors for: 1. door station for one and two houses Code=3, DIP6=on First house - the first monitor must have the address 0, another monitors from 1 to 12. In this we will get the addressed intercom. - Page 21 WIRING Star Topology Wiring With M-SM4 in Standard Mode C o d e = 1 ，DIP6=on Code=0，DIP6=on Impedance OFF ON switch C o d e = 3 ，DIP6=on Code=2，DIP6=on 100~240VAC M-3F P26/40 M-SM4 BUS(IM) BUS(DS) Optional functional module M-3F: bus amplifier module B5: staircase light controller module M-SM4: 4 inputs branch distributor RF CARD...
-
Page 22: Appendix
APPENDIX Precautions • Please clean the unit with soft cotton cloth, don't use the organic impregnant or chemical clean agent. If necessary, please use a little pure water or dilute soap water to clean the dust. • The unit is weather resistant. However do not spray high pressure water on access control keypad directly. -
Page 23: Cables And Requirments
APPENDIX Cables and Requirments The maximum distance of the wiring is limited in the system, we recommend using twisted cable type YTKSY Basic IN-OUT Wiring Mode Cable and distance(unit:m) Cable Usage ≤2 IM ≤16 IM Twisted cable 2x0.75mm Twisted cable 2x1mm PC6A RF CARD -22-... - Page 24 APPENDIX Star Topology Wiring Mode With M-SM4 DBC4A1 PC6A Cable and distance(unit:m) Cable Usage Twisted cable 2x0.75mm Twisted cable 2x1mm RF CARD -23-...
-
Page 25: Warrant Card
8. The condition to perform repair works is to deliver the Product with the Warranty Card and the proof of purchase. 9. Service Centre: Firma Handlowa Wena Al. Jerozolimskie 311 , 05 - 816 Reguły / near Warsaw Poland tel. +48 228 370 286; +48 228 174 003 e-mail: biuro@vidos.pl www.vidos.pl -24-... - Page 26 Firma Handlowa Wena l. Jerozolimskie 311 05-816 Reguły/ near Warsaw Poland tel. +48 228 370 286; +48 228 174 008 e-mail: biuro@vidos.pl www.vidos.pl...
